Touch 8 專為嚴謹的音響專業人士打造，其高階效能與功能超乎預期。此介面配備 75dB 增益
前置放大器和頂級數位類比 / 類比數位轉換器，可實現 128dB 的類比數位轉換。而 Touch 8 更能達到 130dB，
呈現出開闊自然的音質，足以媲美專業獨立轉換器。
10 吋多點觸控液晶螢幕支援即時回應控制，配備虛擬推子、觸控按鍵和清晰易讀的 15 段電
平表。 -20dB 衰減墊、幻像電源、極性控制和直接監聽等關鍵功能觸手可及。透過 Alt 鍵可在
工作室監聽音箱和一般消費級音箱之間切換，而衰減按鈕能快速將輸出音量降低 20dB。
雙耳機輸出讓協作變得輕鬆便捷，配有獨立音量推子和靈活的監聽選項。使用 ADAT 輸入 / 輸出
介面可擴充設備配置，增加 8 通道光纖輸入和輸出。透過 iCON 的 iO Pro 軟體，您能輕鬆管理信
號路由並掌控錄音會話的各個環節。
Touch 8 設有 4 個 Neutrik®Combo XLR 麥克風 / 線路 / 樂器輸入接口，兼容 XLR 接口和 1/4 英寸（6.35 毫米）接口，連接靈活。再加上 4 個 1/4 英寸
輸出接口，該接口提供了管理工作室或現場設備所需的全部輸入 / 輸出選項。
透過 UNIOTG USB-C 接口，可直接連接網路串流服務，確保直播音訊品質純淨。此外，您還能使用 iCON 的 iO Pro 軟體，將殘響、壓限器、延遲等基
於宿主的效果器無縫整合到直播或現場表演中。
iO Pro 軟體與硬體協同工作，讓您既能透過軟體，也能直接在裝置的觸控螢幕上控制監聽、耳機輸出、直接監聽和 OTG 輸入。精密設計的硬體編碼器可對數
字推子進行精細控制，方便進行細節調整。
憑藉堅固的結構、時尚的設計以及與 iO Pro 軟體的強大集成，Touch 8 能夠在專業工作室和高端家庭工作室中長久保持頂級性能。
強大的軟體套裝，激發你的創作潛能
透過 U44 附贈的尖端軟體套裝，釋放你的全部創作潛力。這套出色的軟體合集包括：
·iZotope VEA（語音增強助理）：基於人工智慧的音訊增強工具，協助打造完美的語音錄音。
·Harrison AVA Live：即時、超低延遲的頻道條，可實現精準的音訊處理。
·Harrison VIP（人聲強度處理器）：增強人聲的存在感與清晰度，讓表演脫穎而出。
·Bitwig 8-Track Studio 數位音訊工作站：功能多元的數位音訊工作站，滿足你的各類製作需求。
·Tracktion 數位音訊工作站精華版：必備的工具與插件，支援靈活的音訊編輯和混音。
·Kilohearts 工具箱：一套創意音效設計插件。
·Dotec Audio 插件：高品質的效果器與處理器，為你的聲音錦上添花。
這套強大的軟體套裝確保你擁有創作、編輯和製作專業級音訊所需的一切工具。
4×4 analog I/O full duplex simultaneous recording and playback
10 inch capacitive LCD multi touch screen with wide viewing angles
Ability to make adjustments on the touchscreen or via iCON iO Pro software
High quality D-A providing a very high dynamic range of 130dB
High quality grade A-D providing a very high dynamic range of 128dB
Eight channels of ADAT optical (1x optical ADAT I/O)
24-Bit 192KHz 4 mic-In/inst-In + ADAT connectivity (8 channels) = 12 In x 12 Out capability
Ability to use plugins in a live context whilst streaming/live via iCON iO Pro software
Individual input faders and controls (i.e. MUTE, +48v, pad etc.)
UNI OTG output fader
Stereo out fader with individual controls (i.e. Dim button for -20 dB attenuation)
Two 1/4 inch(6.35mm) headphone outputs with individual volume controls and monitoring options (unbalanced)
Direct monitoring available
‘Alt’ button for switching between different monitoring set ups
Hardware encoder for fine adjustment of digital faders
UNI OTG connection with high dynamic range and extremely stable performance
USB-C connector for PC/Mac connectivity
4 x Neutrik Combo XLR with 1/4 inch (6.35mm) TRS jacks for mic, line or instruments
Four analog outputs on 1/4 inch (6.35mm) TRS jacks (balanced)
Flexible channel routing via iCON iO Pro software
High-resolution analog mic preamps with 75dB of gain
ARM Cortex-M7/500MHz processing power (two instances for UNI OTG + USB-C connections)
ARM Cortex-A7 processor to enable high quality touchscreen functionality
USB 2.0 true high speed
Supports Direct Sound, WDM and ASIO 2.0
Loop Back function possible with iCON iO Pro for both Mac and Windows platforms
Class-compliant with MacOS 10.15 or above & Windows 10 or above
+12V DC power supply connector supplied (connector lock included)
Rugged, high quality construction
BNC word clock connectors
Name Spec
I/O
Microphone Inputs (XLR - balanced) Four
High Impedance (Hi-Z) Instrument Inputs Four
Analog Line Inputs Four
Analog Monitor Outputs (DC coupled) Four (two stereo pairs Main & Alt)
Word Clock IN One
Word Clock OUT One
Digital Input Port One (ADAT)
Digital Output Port One (ADAT)
Digital Output Port One (USB OTG)
Audio to Digital Conversion
Dynamic Range 125dB, A-weighted
Signal-to-Noise Ratio -125dB, A-weighted
Total Harmonic Distortion + Noise -117dB, -1dBFS
Digital to Audio Conversion
Dynamic Range 130dB, A-weighted
Signal-to-Noise Ratio -130dB, A-weighted
Total Harmonic Distortion + Noise -120dB, -1dBFS
Mic Inputs (XLR balanced)
Frequency Response 20Hz to 20kHz (+/-0.1dB)
Minimum voltage gain 0dB (fader @ unity, -20dB pad)
Maximum voltage gain 75dB (fader @ unity, no pad)
Nominal input level -16dBu through -66dBu (fader @ unity,no pad, @ +4dBu output)
Maximum input level +18dBu (fader @ unity, -20dB pad)
Expected source impedance 150 to 2000 Ohms
Actual load impedance 1200 Ohms
Instrument Inputs 1/4
Frequency Response 20Hz to 20kHz (+/-0.1dB)
Input Impedance 1M Ohms, typical
Maximum input level +18dBu (fader @ unity, -20dB pad)
Line Inputs 1/4
Frequency Response 20Hz to 20kHz (+/-0.1dB)
Maximum level +24dBu
Nominal input level +4dBu
Expected source impedance 20000 Ohms or less
Actual load impedance 10 kOhms
Line Outputs 1/2 (6.35mm TRS, Unbalanced)
Frequency Response 20Hz to 20kHz (+/-0.1dB)
Maximum level +24dBu
Nominal input level +4dBu
Minimum load impedance 600 Ohms
Headphone Outputs: (Stereo, Unbalanced)
Frequency Response 20Hz to 20kHz (+/-0.1dB)
Load Impedance 16 to 600 Ohms
Maximum Output Level +21dBu, no load
+21dBu, 600Ohms (11.4Vrms)
+20dBu, 100 Ohms (10Vrms)
+14.6dBu, 32 Ohms (5.4Vrms)
+8.6dBu, 16 Ohms (2.7Vrms)
Unmatched Clarity and Power with
Premium Preamps and Converters
Equipped with high-end preamps delivering an impressive 75dB of gain, the Touch 8 doesn’t compromise on audio
quality. This interface features top-tier digital-to-analog and analog-to-digital converters that match or exceed the
performance of premium competitors. With 128dB analog-to-digital conversion, the Touch 8 offers a stellar 130dB DA
conversion, ensuring expansive, crystal-clear sound in every session.
EFFORTLESS LIVE STREAMING
WITH PRISTINE AUDIO QUALITY
The UNI OTG connector port on the Touch 8 allows direct connection to internet streaming services on your mobile device,
making it perfect for producers, engineers, or artists who broadcast to social media. With specially developed coding and
dual ARM M7 500MHz chips, this interface provides a stable streaming environment while delivering impeccable audio
quality, ensuring your broadcast sounds flawless every time.

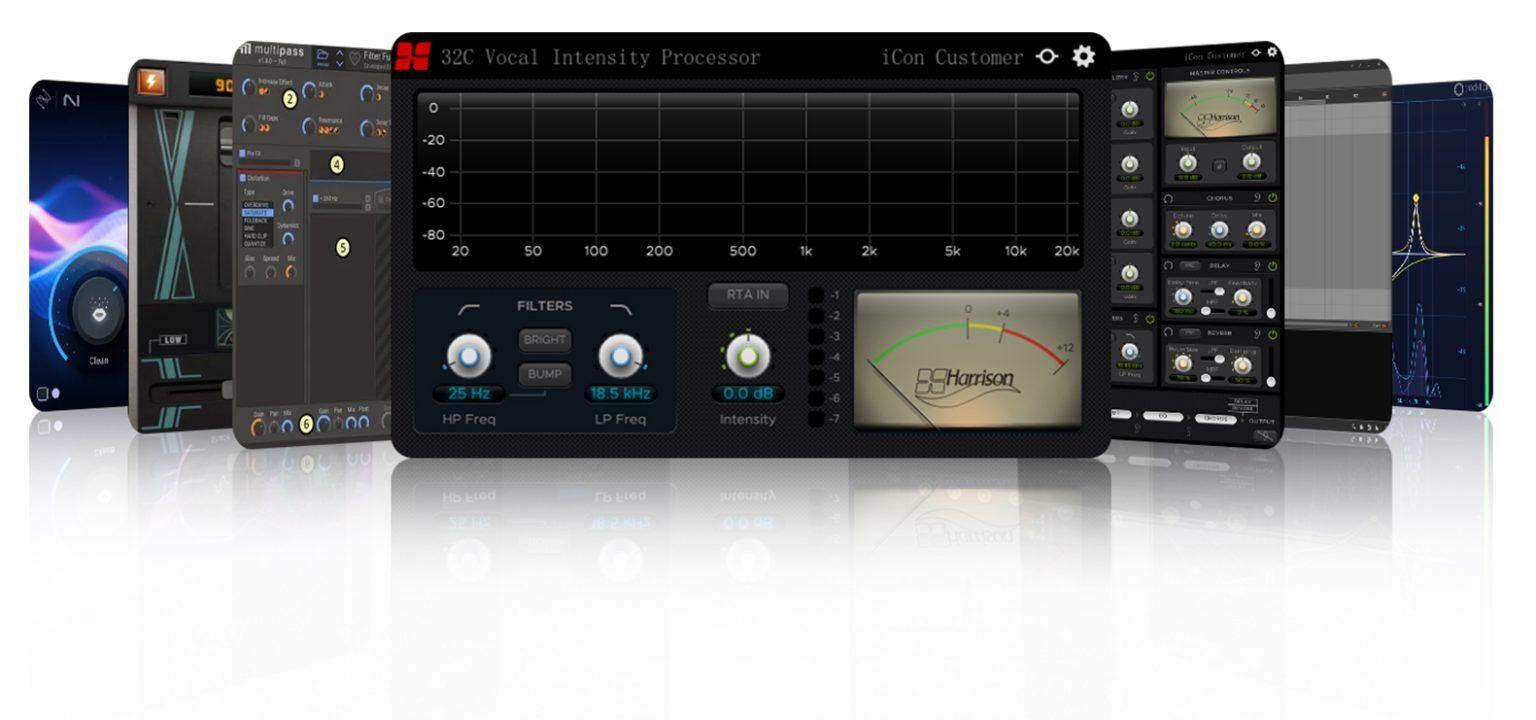

POWERFUL SOFTWARE BUNDLE
TO ELEVATE YOUR CREATIVITY
Unlock your full creative potential with the cutting-edge software suite bundled
with the Touch 8. This impressive collection includes:
iZotope VEA (Voice Enhancement Assistant): AI-driven audio enhancer for flawless voice recordings.
Harrison AVA Live: Real-time, ultra-low latency channel strip for precise audio processing.
Harrison VIP (Vocal Intensity Processor): Boost vocal presence and clarity for standout performances.
Bitwig 8-Track Studio DAW: A versatile digital audio workstation for all your production needs.
Tracktion DAW Essentials: Must-have tools and plugins for flexible audio editing and mixing.
Kilohearts Toolbox: A suite of creative sound design plugins.
Dotec Audio Plugins: High-quality effects and processors to enhance your sound.
This powerful software bundle ensures you have everything you need to create, edit,
and produce professional-quality audio.
