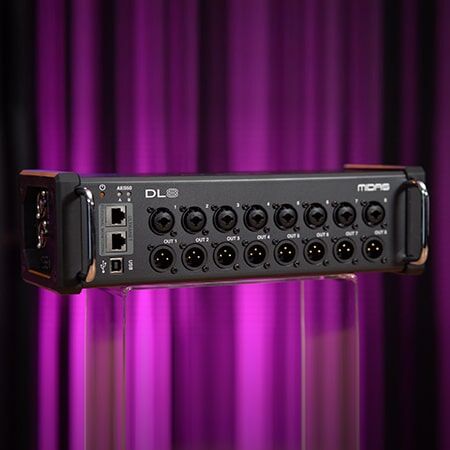

Midas DL8 8 Input, 8 Output Stage Box with Midas Preamplifiers

Midas DL8 8 Input, 8 Output Stage Box with Midas Preamplifiers

HK$4,280.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.

Description

WHATSAPP:5597-7665

8 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

8 electronically balanced low impedance line level outputs

Powered via AES50 PoE from compatible Midas hubs, or from internal switched mode power supply

ULTRANET distribution hub for powered connection of 2 personal monitoring mixers

Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

Dual AES50 SuperMAC ports for cascading additional stageboxes—no merger or router required

Rack ears and protection bumpers included for installed and on-stage applications

Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

Features industry standard RJ-45 AES50 network ports

Rugged chassis for durability in portable applications

Auto-ranging universal switch-mode power supply


DL8

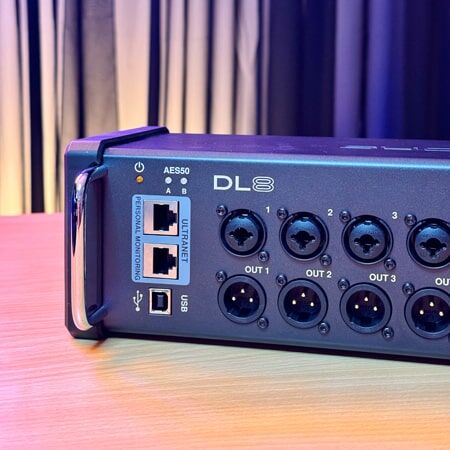

The DL8 Stage Box provides 8 of our award-winning Midas PRO microphone preamplifiers with switchable +48 V phantom power; 8 electronically balanced low impedance line level; integrated ULTRANET distribution hub for connecting to Behringer P16-M personal monitor mixers or Turbosound speaker systems; plus dual AES50 SuperMAC ports for cascading additional StageBoxes.

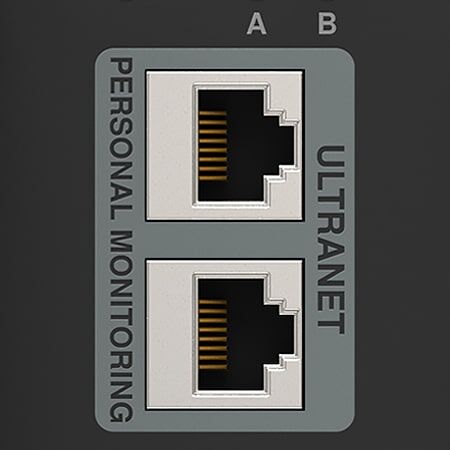

ULTRANET – Seamless Integration
Engineers at Midas, Klark Teknik, Turbosound and Behringer have come together to create a rock-solid, easy to deploy, lowest-latency, long-distance, multi-channel audio transmission interface. The Ultranet technology has meanwhile proven to seamlessly transmit 16 channels of 24-bit audio over standard CAT5 cable up to 75m length, in hundreds of thousands of applications world-wide -- connecting mixers, I/O boxes, powered loudspeakers and personal monitoring systems.  Ultranet effectuates a powerful digital eco-system that combines highest reliability, with unparalleled ease of use and flexibility.

.

Dual AES50 Ports for Massive Connectivity
Connecting over a single shielded (STP) CAT5 cable, up to three DL8s can be daisy-chained to deliver 48 channels in and 48 out to the stage. Klark Teknik’s AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry. This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure.

Specification

Processing
A/D-D/A conversion
24-bit @ 44.1 / 48 kHz, 114 dB dynamic range (A-weighted)

Networked I/O latency (stagebox in > console processing* > stagebox out)
1.1 ms

Connectors
Programmable mic preamps, designed by Midas, balanced XLR/TRS combo
8

Line outputs, balanced XLR
8

ULTRANET outputs, RJ45 (power supplied for Behringer P16-M personal mixers)
2

AES50 port, SuperMAC networking, Industry standard RJ-45
2

USB port for system updates, type B
1

Mic Input Characteristics (Midas PRO)
Mic input impedance XLR jack, unbal. / bal.
5 kΩ / 10 kΩ

THD + noise, 20 dB gain, 0 dBu out
< 0.006%, unweighted

Phantom power, switchable per input
+48 V

Equivalent input noise level, XLR (input shorted)
-125 dBu, unweighted

CMRR, XLR, @ 20 dB gain (typical)
>75 dB

Input/Output Characteristics
Frequency response @ 48 kHz sample rate
10 Hz - 22 kHz, 0 dB to -1 dB

Dynamic range, analog mic in to analog out (typical)
106 dB, 22 Hz to 22 kHz, unweighted

A/D dynamic range, mic preamp to converter (typical)
109 dB, 22 Hz to 22 kHz, unweighted

D/A dynamic range, converter and output
108 dB, 22 Hz to 22 kHz, unweighted

Crosstalk rejection @ 1 kHz, adjacent channels
100 dB

Non clip maximuminput level, XLR
+23 dBu

Line input impedance TRS jack, unbal. / bal.
5 kΩ / 10 kΩ

Non clip maximum input level, TRS
+23 dBu

Output Characteristics
Output impedance, XLR, unbal. / bal.
50 Ω / 100 Ω

Output level, XLR, nom. / max.
+21 dBu

Residual noise level, XLR
-88 dBu, 22 Hz to 22 kHz, unweighted

Digital In/Out
AES50 SuperMAC networking @ 48 or 44.1 kHz, 24-bit PCM
2 x 48 Channels, bidirectional

AES50 SuperMAC cable length, CAT5 shielded**
< 80 m recommended

ULTRANET networking @ 48 or 44.1 kHz, 22-bit PCM
2

ULTRANET cable length, CAT5 shielded
< 75 m

ULTRANET phantom power for P16-M personal mixers
2 powered outputs

* Incl. all channel and bus processing, excl. insert effects and line delays

** Klark Teknik NCAT5E-50M recommended
