OVERVIEW
256 Voices of V.A.S.T. Polyphony!
K2700-256
Over 5x the polyphony of any previous K2 series model!
4.5 Gigabytes of Factory Sounds!
K27-45GB-Factory
The K2700 serves up a deep sound library of over 1500 factory Programs and over 700 Multi combinations organized into 13 instrument categories ranging from Pianos to Synths to Orchestral sounds and more, featuring our optimized German D, Japanese C7 and Triple Strike pianos, Classic Tine EPs (’73 & ’77), plus updated sounds from our popular SP6, PC3/4, and KORE64 expansion.
Patented FlashPlay® Technology
flashplay-iv-flare
Flash-Play® provides the K2700 with a staggering amount of horse-power. Up to 8 GB total capacity with zero-loading time, and ultrafast performance.
3.5 Gigabytes User Sample Memory
K27-3_5GB-User
Load up to 3.5 GB of your own custom samples into non-volatile flash memory. Supported sample formats: .WAV, .AIF (up to 16 bit / 96kHz) and Kurzweil formats (.FOR, .PC4, .P3K, .KRZ, .K25, .K26).
V.A.S.T. Editing
vast
V.A.S.T. was born in the K2 series. The K2700 expands on Kurzweil’s legendary Variable Architecture Synthesis Technology offering 32-layers per program, deeply customizable signal paths and a host of modular DSP tools including new oscillators, filters, and FX.

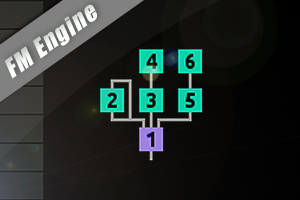

6-Operator FM Engine
pc4-fm
6 Operator FM Engine with the ability to load original FM SysEx files. FM layers are a new addition to VAST programs and can be combined with VAST features to go far beyond classic FM synthesis.
Virtual Analog
VA overview callout
Embedded within the K2700 are powerful anti-aliasing, power-shaped oscillators along with DSP processing from Kurzweil’s mythical VA1 concept synth, capable of delivering authentic analog emulations as well as incredibly complex new sounds.
KB3 ToneReal™ Organs
pc3a-kb3
Modeled after classic organs. A full complement of tonewheel controls are immediately accessible including 9 realistic drawbars, rotary speed, chorus/vibrato, brake, percussion and more.

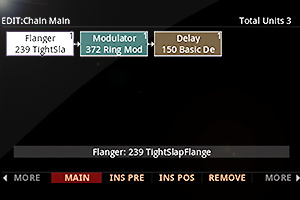

Powerful FX Engine
pc4_fx
Award-winning Reverbs, Delays, Choruses, Flangers, Phasers, Distortions, Rotary Amplifiers, Compressors and more – all fully editable from the user-interface. The K2700 also offers a global Master FX section featuring 3-band EQ and Compression.
K.S.R. – Kurzweil String Resonance
ksr
Piano string resonance modeling for enhanced acoustic piano performance!
PERFORMANCE

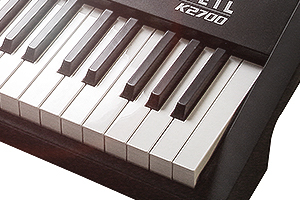

88-Note Italian Hammer-Action Keyboard
K2700-keys2
Every sound within the K2700 is perfectly matched to its 88-note fully-weighted keyboard with aftertouch. Further customize the MIDI velocity and pressure response to suit your personal playing style.

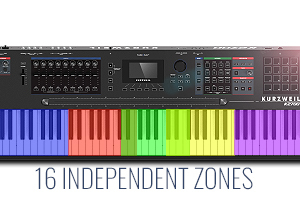

16-Zone Multi Controller Mode
16 zones
Construct massive sonic combinations via Kurzweil’s renowned Multi mode (aka Setup mode) offering 16 zones of unparalleled MIDI controller capabilities, with each zone supporting over 60 separate physical controllers!

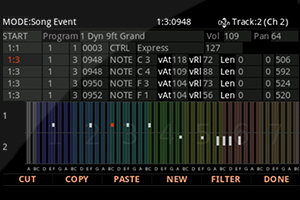

16-Track Sequencer
pc4_song
The K2700 features a 16-track internal sequencer to record/edit/mix/produce your own tracks – all in the box. Import MIDI (.mid) files as well as Kurzweil PC3/PC4/Forte-family songs.

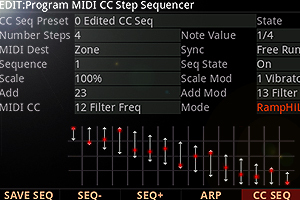

16 MIDI CC Sequencers
pc4_ccseqr
Add sonic animation to your sounds via 16 simultaneous MIDI CC Step Sequencers for modulation sequencing

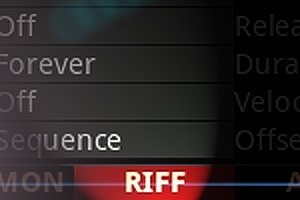

16 Riff Generators
forte-riff
Trigger and manipulate up to 16 simultaneous MIDI sequences on the fly. Select from an internal library of patterns or record/import your own!

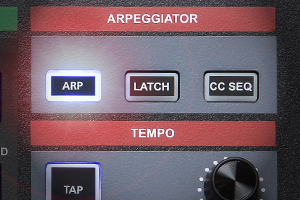

16 Note Arpeggiators
K2700-Arp2
Looking for a pulse? Activate up to 16 independent Arps (1 per program, 16 per Multi) and dive into the ‘Step Sequencer’ environment!
CONTROLS

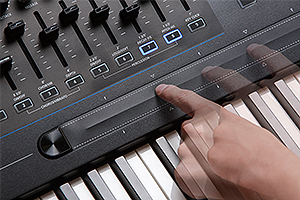

Built-In Ribbon Controller
K2700-Ribbon2
Bend pitch, from musically subtle variations to deep dives? Of course. But then go beyond the expected and control filters, volume, tempo, distortion, and more. Configure the Ribbon to have one control section that runs its entire length, or to have three sections of equal length acting independently.

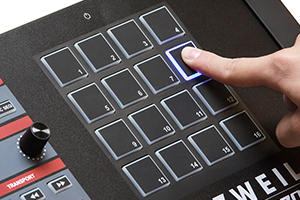

16 Pad Triggers
K2700-pads
Use the 4 x 4 grid of velocity sensitive pads to trigger drums & percussion with precision. Further, activate zone mutes, trigger notes/chords, filters, add layers, control the Arp, CC Sequencers and more.

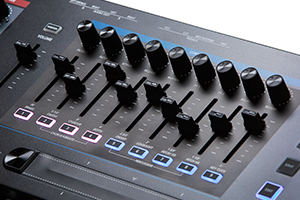

Programmable Sliders, Knobs & Buttons
K2700-sliders
9 sliders, 9 knobs and 10 buttons. All programmable. Internally control volumes, pans, filters, FX wet/dry, envelopes, mutes, etc. Externally transmit any desired MIDI CC’s to your DAW host.

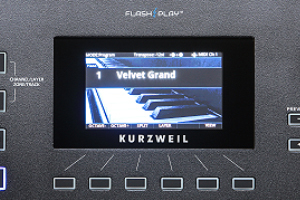

Widescreen Color Display
K2700-LCD-
Navigate the K2700 with a clear, easy to read 4.3” 480×272 widescreen color LCD display.

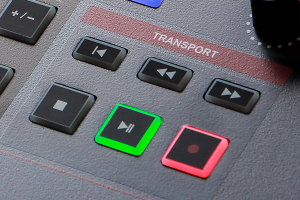

Master Transport Controls
K2700-transport
Use the Transport section to control recording and playback of the on-board 16-track sequencer as well as your favorite DAW (via MMC and System Real-Time messages).

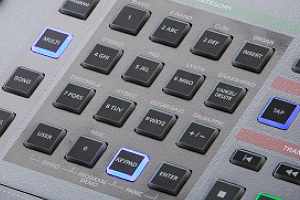

Categorized Sound Selection
K2700-categories
Easy Category and Program/Multi selection featuring customizable category defaults.

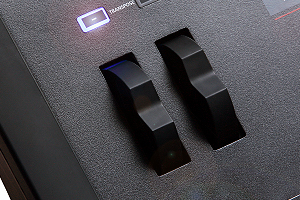

Pitch/Mod Wheels & Transpose Controls
K2700-PWMW
Front panel pitch/modulation wheels for expressive performances accompanied by dedicated -/+ transpose controls for quick/easy key changes.

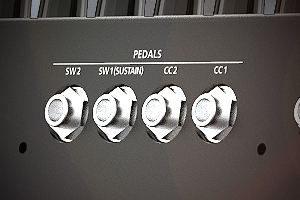

Pedal to the Metal
K2700-pedals
Two assignable switch pedal jacks* and two assignable CC pedal jacks.
(*supports half-damper functionality and up to 4 switch pedals with 2 pedals per jack)
AUDIO INTERFACE + I/O

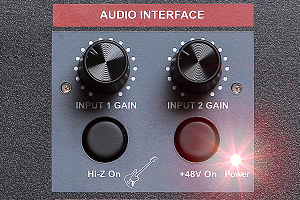

Integrated USB Audio Interface
K2700-AudioIn
Record straight to your DAW via USB. No separate interface required. Connect your choice of line/instrument/mic source and route audio from the K2700 and its analog inputs to your DAW, with or without FX. The audio interface section features per channel gain knobs, peak-level LEDs, Hi-Z switching and +48v phantom power.

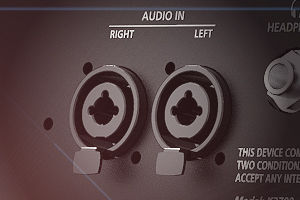

Live Audio Inputs w/ FX
K2700-AudioIn
Plug in and jam along with an external audio source via 1/4” – XLR combo inputs. Process the inputs through dedicated real-time FX to create new textures. Sweeten your vocal or backing tracks for live performance and internally mix the signal with the K2700’s own output.

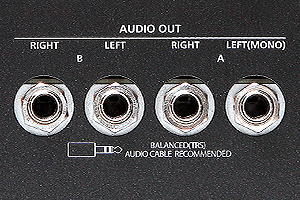

Balanced Audio Outputs
K2700-Audio Outs
Connect to your favorite mixer, amp or studio monitors and route the K2700’s audio signal (including input from the audio interface) amongst the four 1/4” TRS balanced outputs (two stereo pairs, A & B). The K2700 features pristine 32-bit D-to-A converters with automatic mono switching on main outs and a back-panel 1/4” stereo headphone jack.
USB MIDI + Audio + Storage
usb
A single USB cable allows you to use the K2700 as both a MIDI controller and
SPECS
All specifications subject to change without notice.
Keyboard:
88-key, fully-weighted action with velocity and pressure (aftertouch) sensitive adjustable keys (Fatar TP/40L)
Display: 480 x 272 pixel high resolution color LCD with adjustable brightness
Polyphony: 256 voice polyphony, dynamically allocated
Multitimbral: 16 parts (one per MIDI channel)
Architecture: Dynamic VAST: powerful synthesis engine, with user programmable DSP algs and routing.
Cascade Mode: route one layer through the DSP of any other layer within a program – up to 32 consecutive layers deep!
KB3 ToneReel Engine
6-Operator FM Engine
VA1 Virtual Analog Oscillators + DSP
Sample Flash Memory: 4.5 GB factory samples
3.5 GB of re-loadable, non-volatile, user flash memory
Factory Programs: 1500+
User Programs: 4000+
Factory Multis: 700+ (up to 16 independent controller zones)
User Multis: 4000+
General MIDI: No
Kurzweil String Resonance: Yes
Master EQ/Compressor: Yes
Effects: Over 1000 complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
32 total FX units
Controllers: Monopressure (aftertouch)
1 pitch wheel
1 assignable modulation wheel
1 assignable ribbon controller
9 assignable sliders
9 assignable knobs
10 assignable buttons
16 assignable velocity sensitive pads
2 transpose switches
Tap tempo button and tempo knob
Arp controls
Transport controls
*2 switch pedal inputs each supporting single/dual switch pedal or single half damper pedal (1 switch/sustain pedal is included; half-damper pedals sold separately)
2 continuous control pedal inputs
Sequencer: 16 Tracks; 960 PPQ resolution. Song editing functions include both event and track-based tools like quantize, swing, remap, controller scaling and more.
MIDI CC Step Sequencers: 16 simultaneous
Riffs: 16-per Multi
Arpeggiators: 1-per Program, 16-per Multi
System Sample Rate: 48kHz
Analog Outputs: Four (2 pairs) 1/4″ balanced TRS analog (32-bit DACs)
Automatic mono switching on main outs
+21dBu maximum output
50Ω balanced source impedance
Audio Inputs: 2 combination 1/4”/XLR jacks (one stereo pair) accepting Line/Instrument/Microphone level signals.
Dedicated Gain knobs, Hi-Z switch for electric guitar/bass, and +48V Phantom Power switch for Microphones.
Headphones: 1 back panel 1/4″ headphone output
130mW into 32 ohm headphones
MIDI: In, Out
USB: Stereo audio in/out over USB (sample rates: 44.1, 48, 88.2, 96, 176.4, 192 Khz. Bit depths: 16, 24)
Complete MIDI functionality over USB
Play and control the K2700 with a USB MIDI controller (USB host functionality)
User Object file transfer to/from USB Flash Drive
Operating System updates from USB Flash Drive
Software Editors: External editors for Mac OS X, Windows PC and iOS* devices
(*coming soon)
FREE OS Updates: OS updates via USB drive
Included Accessories: Power cable, Switch pedal, USB cable
Height: 5.5” (13.97 cm)
Depth: 15.5” (39.37 cm)
Length: 51” (129.54 cm)
Weight: 52 lb (23.58 kg)
Power: Internal power supply
