Background
As a musical instrument brand, NUX already built lots of pedals and multi-effects. For users who use high gain distortion pedals always have headache with the power supply. The DC daisy-chain can drive several pedals, but the ground noise will occur easily especially while you connect analog pedals and digital pedals at the same time. To be an industry pioneer, NUX has the mission to build a reliable, extreme-low-noise, light-weight, universal power, high current, all-isolated power supply.
While we reviewed the previous isolated power supplies, the main products use “toroidal transformer”. Even it can offer clean power, but the efficient, weight, size, is totally unfriendly in nowadays.
Concept

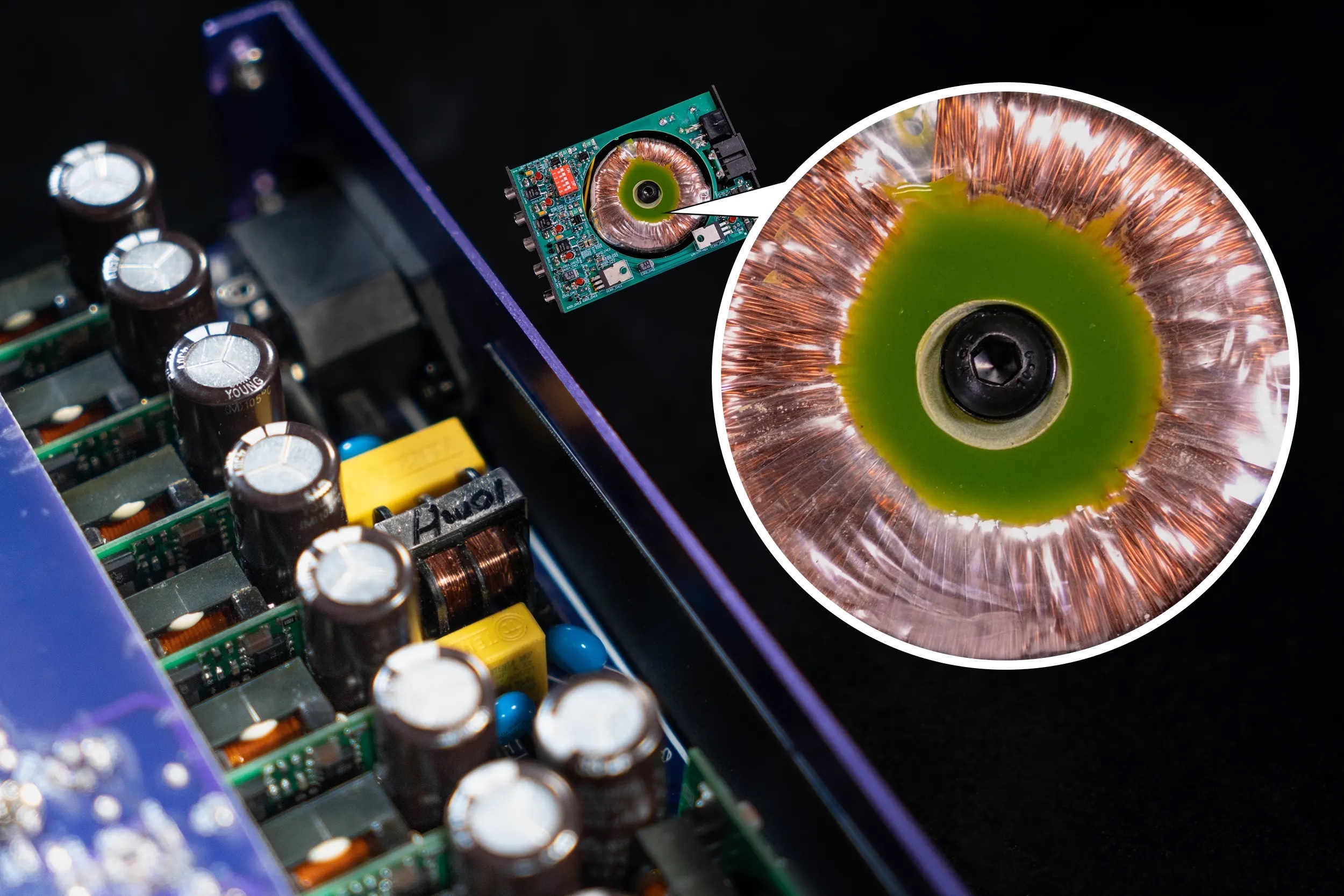

Zeus was the god of the sky and thunder. His most famous power is the ability to throw lightning bolts. That’s why we name the power supply ~ ZEUS. Zeus provides 10 high current isolated DC power. It equips 10 isolated switching power transformers to offer clean and stable source for your pedals. As a modern musician, guitarists like digital post effects like Eventide®, Strymon®, …etc. So Zeus comes with 3 adjustable high current outputs (9v/500ma | 12v/300ma | 18v/200ma), and 1 tweakable high current output (6v~9v~12v). It means you can use Fuzz or Phaser with the tweakable output to find the best sound.
For working musicians, Zeus has USB port for your mobile device charging. Zeus’ universal AC power in can let you work all the world without any AC mistake. It’s reliable and durable to power your pedals.
*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.
Transient Currents (Powerful)
The current of an effect pedal (especially power-hungry modern DSP effects) is different at the moment of power-on and normal operation. The transient current often exceeds the normal operating current by 1 to 2 times. Zeus can effectively provide more than 2 times the instantaneous start-up current.
NOTE:
1-6CH: >1100mA
7-10CH: >600mA
USB 5V: >2.1A
Tweakable Dial Control (Sag or Rise for the best sounding)
Tweakable dial controls to adjust variable voltage: 6V~12V.
For the picky musicians, they care about the tone, especially for some Ge Fuzz pedals, Phaser, BBD Chorus, and Overdrive pedals. You have to adjust the voltage carefully to get the best sound and dynamic.
UL Certification (Safety)
To built a commerce product, we have the responsibility to make sure the safety. It costs us more than 1 year to reach all the requirements of UL. We’re proud to say the ZEUS isolated power supply is not only a professional musician’s tool, it’s also a GREEN power.
Specifications
AC Power Input: 100~240V AC 50/60 Hz
DC Outputs: 9V / 500mA*6, 9V/12V/18V adjustable*3, 6V~12V tweakable*1, USB 5V/1.5A for Pad
DC Cables: DC LINK CABLE (2.1MM BARREL CONNECTORS-RIGHT-ANGLE TO STRAIGHT ENDS) 50CM*5
DC LINK CABLE (2.1MM BARREL CONNECTORS – RIGHT-ANGLE TO STRAIGHT ENDS) 30CM*5
REVERSE POLARITY CABLE-2.1MM RIGHT-ANGLE 50CM*1
3.5MM MINI PLUG CABLE-RIGHT-ANGLE 50CM*1
HX CURRENT DOUBLER ADAPTOR (2*2.1MM JACK TO 2.5MM RIGHT-ANGLE PLUG) 10CM*1
Dimensions: 195mmx101mmx42mm
Weight: 658g
