The Yamaha CSP series is a new concept in digital pianos. Designed for those who want the stunning sound of the Yamaha CLP Clavinova series, but with a huge range of additional sounds, backing tracks and learning facilities available when required. These extra features are unlocked through the use of an iOS or Android tablet computer, and therefore the piano retains the uncluttered look of a traditional acoustic piano, as all controls are available from the touch screen of the tablet computer.
Part Exchange Your Existing Instrument
Do you already own a piano or keyboard that you would like to trade-in for a new Yamaha CSP170? Email us details of what you have to partex@bonners.co.uk and we will email you back a part exchange valuation immediately.
It All Begins With An Authentic Piano Sound & Touch

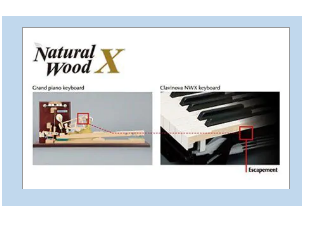

The CSP170 is fitted with Yamaha’s NWX (Natural Wood X) keyboard with synthetic ebony and ivory keytops, escapement to enable exceptional expression in piano performances. There are two main choices of piano sounds available in the CSP170 - the mighty Yamaha CFX concert grand, and the Bösendorfer Imperial. Both of these piano tones work well for different styles of music - the CFX is a bright and powerful sound with exquisite top register, whilst the Bösendorfer Imperial is renowned for being more delicate and perfect for romantic classical pieces.
Three Pedals - Just Like An Acoustic Grand Piano
The CSP170 has three pedals which behave just like those found on a traditional grand piano - sustain, soft and sostenuto. When the additional features are being controlled through your tablet device, the pedals can be assigned to different functions such as start/stop, glide, expression and more!
Display & Control Digital Music Scores On Your Device
When playing along to backing tracks and midi files etc on the CSP170, it is possible to display the printed music score on the screen of your connected tablet device. Lyrics and chord symbols can also be shown.
Headphone Mode
When a set of headphones is connected to one of the headphone out jacks, the sound of the CSP170’s speaker system is muted and can only be heard by the person wearing the headphones. This means that piano practice can be done without disturbing other members of the household. There are two headphone sockets for teacher/pupil scenarios or for duet performances. The headphone output is further enhanced by the implementation of Yamaha’s binaural sampling technology on the CFX piano sound. This technology gives the impression of surround sound through the headphones in order to give a realistic experience whether
through the internal speaker system, of when practicing using headphones.
Plenty Of Voices - In fact there’s 692 of them!
If you like to play more than just piano sounds, then the CP170 is the piano for you! Featuring 692 high quality Voices covering all genres of musical instrument, and even synthesizer sounds too. There are also 29 Drum and sound effects Kits available to complete the band! These voices are put to good use when playing along with the huge range of songs you can download from Yamaha’s online services, or they can be used for you to create your own multitrack arrangements using the 16 track recording feature.
Microphone Input With Vocal Harmony
The CSP170 is so much more than just a piano, yet you wouldn’t know it when looking at teh simple, elegant front panel. There is a dedicated microphone input for when you want to sing along, and lyrics can be displayed on the screen of a connected tablet computer. The vocal harmony processor adds realistic multi-part harmonies to the main vocal, and digital effects such as reverb and delay can be applied to the microphone to give that ‘professional’, polished sound.
Record Your Performance!
Record your performance on the CSP170 either using the 16 track MIDI recorder for complex multi-part arrangements, or record to a WAC or AAC format high quality audio file so you can share your own music with your friends or across the internet.
Lesson Functions
If you’re learning to play, then the CSP170 is your ideal piano teacher! You don’t need to be a pro to play the Clavinova CSP-170 digital piano. There are over 400 songs built-in to the CSP170 for you to play along with. The CSP170 can also scan the songs in your smart device’s library to produce a chord chart and piano score, and will even show you what keys to play and when with the intuitive Stream Lights feature.
Accompaniment Styles
Similar to the backing track features found in Yamaha’s popular CVP Clavinova range of pianos, the CSP170 is loaded with 470 high quality backing styles. Playalong using full piano keyboard mode, or split the keyboard for playing using Fingered or Single-Finger chords. It’s like having a complete backing band in your piano - and there are thousands more styles to download from Yamaha’s Musicsoft website.
Huge Sound Output!
The sound of the CSP170 is delivered through two 90watt amplifiers, driving four speakers. Even at lower volume levels, the sound of the CSP170 is rich and vibrant.
Yamaha CSP170 Specifications:
Width: 1,412 mm (55-85")
Height: 1,040 mm (40-15/16")
Depth: 465 mm (18-5/16")
Weight: 67.0 kg (147 lb, 12 oz)
Number of Keys: 88
Keyboard Type: NWX (Natural Wood X) keyboard with synthetic ebony and ivory keytops, escapement
Touch Sensitivity Settings: Hard2, Hard1, Medium, Soft1, Soft2, Fixed
Number of Pedals: 3
Half Pedal Recognition: Yes
Pedal Functions: Sustain, Sostenuto, Soft, Glide, Style Start/Stop, Volume, etc.
Score Display Function: Yes*
Lyrics Display Function Yes*
Text Viewer Function Yes*
Key Cover Style: Sliding
Music Rest Yes
Music Clips Yes
Piano Models: Yamaha CFX, Bösendorfer Imperial
Binaural Sampling: Yes (Yamaha CFX Voice only)
Key-off Samples: Yes
Smooth Release: Yes
Virtual Resonance Modelling (VRM): Yes
Maximum Polyphony: 256
Number of Voices: 692 Voices + 29 Drum/SFX Kits
Featured Voices: 14 VRM Voices, 113 Super Articulation Voices, 27 Natural! Voices, 27 Sweet! Voices, 63 Cool! Voices, 69 Live! Voices, 30 Organ Flutes! Voices
MIDI Playback Compatibility: (for song playback) XG, GS , GM, GM2
Reverb Types: 58 Preset
Master EQ Settings: 5 Preset + User
Intelligent Acoustic Control (IAC): Yes
Stereophonic Optimiser: Yes
Vocal Harmony Settings: VH (44 Preset)
Dual/Layer Mode: Yes
Split Keyboard Mode: Yes
Number of Preset Backing Accompaniment Styles: 470
Featured Styles: 396 Pro Styles, 34 Session Styles, 4 Free Play Styles, 36 Pianist Styles
Fingering Modes: Chord Detection Area Full, Chord Detection Area Lower
Accompaniment Style Controls: INTRO x 1, ENDING x 1, MAIN x 4, FILL IN x 4
Number of Preset Songs 403
Number of Recording Tracks 16
Data Capacity depending on the Smart Device
Recording Function Yes
MIDI Playback Format: SMF (Format 0 & 1), XF
MIDI Recording Format: SMF (Format 0)
Lesson/Guide Modes: Correct Key, Any Key, Your Tempo*
Guide Lamp Type: Stream Lights (4 steps)
Piano Room Mode: Yes
USB Audio Playback Format: Supported format by the Smart Device
USB Audio Recording Format: WAV/AAC
Time Stretch Function: Yes
Pitch Shift Function: Yes
Vocal Cancellation Type: Melody Suppressor
On-Board Metronome: Yes
Metronome Tempo Range: 5 � 500, Tap Tempo
Transpose Range: -12 � 0 � +12
Fine Tuning Range: 414.8 � 440.0 � 466.8 Hz
Scale Types: 9
Audio to Score Function: Yes
Registration Memory: Yes
Headphones Connections: Standard stereo phone jack (x 2)
Microphone/Line Input: Input Volume, Mic/Line In
Conventional MIDI Connections: IN/OUT/THRU
AUX IN: Stereo mini
AUX OUT: L/L+R, R
AUX Pedal Connection: Yes
USB TO DEVICE, iPad
USB TO HOST Yes
Amplifiers: (45 W + 45 W) × 2
Speakers: (16 cm + 8 cm) ×2
Acoustic Optimiser: Yes
