Name: Rcf EVOX 12 1400W 15" ARRAY PA SPEAKER 陣列式擴音機
SKU: 6a491f86b91936becea4121a
Price: 19500.0 HKD
Availability: InStock

分類

Rcf EVOX 12 1400W 15" ARRAY PA SPEAKER 陣列式擴音機

HK$19,500.00

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}

數量

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

意大利製的頂級柱體式喇叭品牌,

認明香港行貨:HONG KONG DEALER

Features

1400 Watt

130 dB max SPL

Frequency response 40 Hz - 20 kHz

15" Woofer

8 x 4" neodymium full-range woofer

90° x 30° slightly tilted pattern control

Innovative DSP processing

Pole mountable, easy set-up and transportation

The EVOX 12 is the most powerful line array source in its class and offers a particular reproduction of ownership and dynamics at high levels due to the built-in 1400W power amplifier. The top section has eight high-performance neodymium 4" full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased mid-bass boost at a consistent level with great dispersion to the highs. The 15" subwoofer delivers powerful bass sound to reinforce a great party or the kick-ass of a band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and an extendable handle, very easy to transport.

Powerful Class-D Amplifiers

RCF's Class-D power amplifier technology packages deliver tremendous performance, operating with high efficiency in a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid mechanical aluminum structure, which not only stabilizes the amplifier during transportation but also aids in fanless heat dissipation. EVOX amplifiers feature an SMPS power supply section to produce maximum output and minimum transport weight.

Superior Transducers

High Frequencies

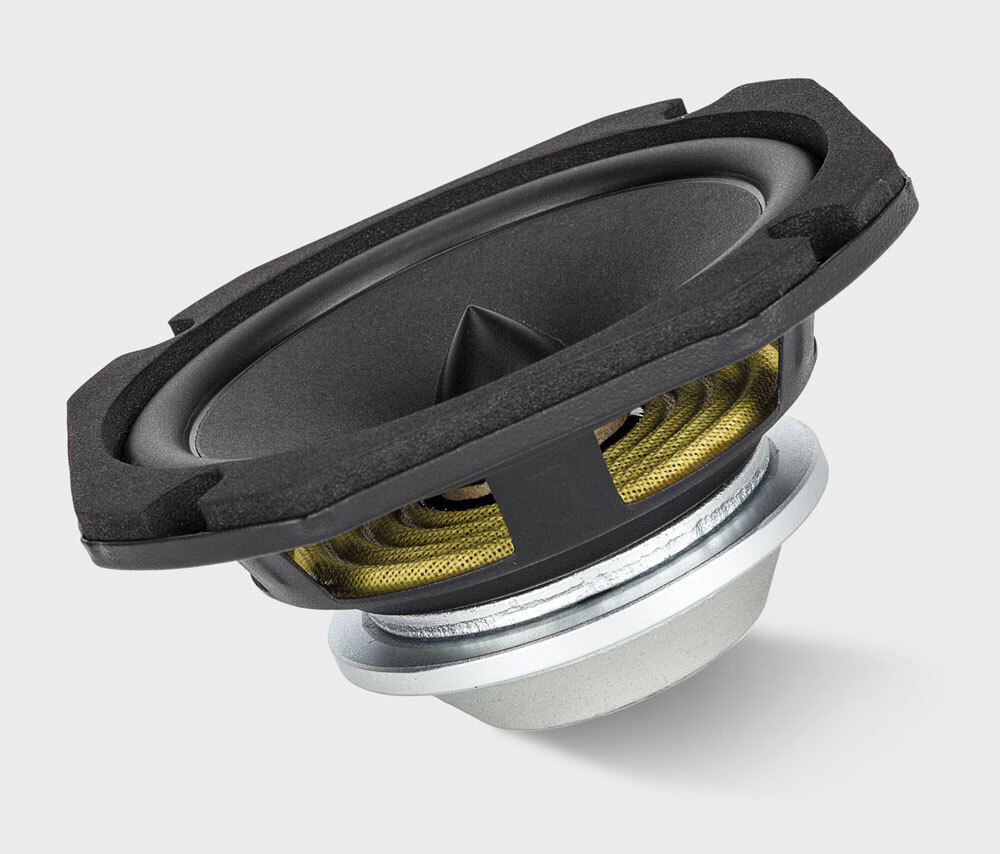

The ultra-compact full-range 4” drivers are capable of handling extremely high SPL and power. The top column features 8 drivers.

Low Frequencies

The high-excursion 15” RCF woofer extends to the lowest frequencies, offering quick and precise punch. The bass-reflex port design avoids air turbulence, reducing distortion. The EVOX 12" array design features constant horizontal directivity coverage of 90° x 30°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee correct listening from the first row and to avoid a high frequency beaming typical of straight array.

Responsive Image

Ready to play in a few simple steps

Portability

With 3 simple steps, the EVOX 12 system is all set and ready to play! The EVOX 12 system is designed to be easily transported and quickly set up. All the components – top column, sub, pole and cables – come in one package and fit in the optional transportation covers.

Mountingt

The top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated into two single parts in order to place it on the transportation bag.

Play!

Loading and assembling your audio system has never been faster!

Responsive Image

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, designed to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Acoustic Specifications

Frequency Response

40 Hz - 20000 Hz

Max SPL @ 1m

130 dB

Horizontal Coverage Angle

90°

Vertical Coverage Angle

30°

Transducers

Full-range

8 x 4.0'', 1.0'' V.C.

Woofer

15'', 3.0'' V.C.

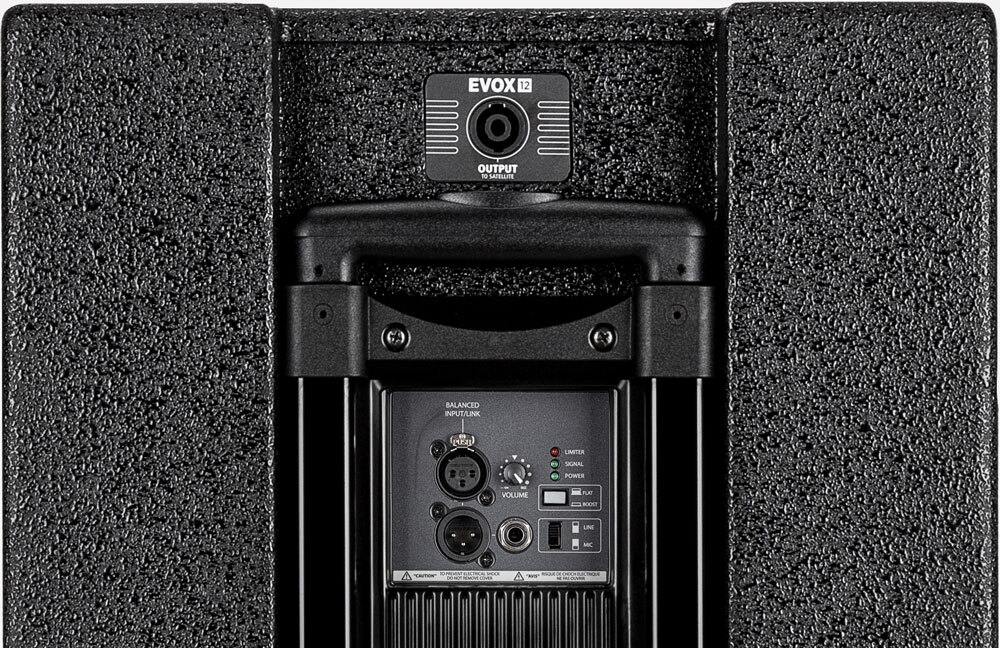

Input/Output Section

Input Signal

Balanced/Unbalanced

Input Connectors

XLR, Jack

Output Connectors

XLR

Input Sensitivity

-2 dBu/+4 dBu

Processor Section

Crossover Frequencies

180 Hz

Protections

Thermal, RMS

Limiter

Soft Limiter

Controls

Volume, EQ

Power Section

Total Power

1400 W Peak, 700 W RMS

High Frequencies

400 W Peak, 200 W RMS

Low frequencies

1000W Peak, 500W RMS

Cooling

Convection

Connections

VDE

Standard compliance

security agency

CE compliant

Physical specifications

Cabinet/Cabinet/Case Material

Baltic birch plywood

Color

Black, White - RAL 9003

Size/Weight

Height

2200mm / 86.61 inches

Width

410mm / 16.14 inches

depth

560mm / 22.05 inches

Weight

36.4 kg / 80.25 lbs

Shipping information

Package Height

636mm / 25.04 inches

Package Width

459mm / 18.07 inches

Package Depth

613mm / 24.13 inches

Package Weight

43.89 kg / 96.76 lbs
