COMPACT ACTIVE POINT SOURCE SPEAKER
128 dB max SPL
2100W Class-D Bi-Amplification
Linear frequency range of 70-20000 Hz
1.75" PKX/Neodymium compression driver
Features
128 dB max SPL
2100W Class-D Bi-Amplification
Linear frequency range of 70-20000 Hz
1.75" PKX/Neodymium compression driver
2 x 6" High-power Neodymium Woofers
Rotatable 100° x 70° TRW Waveguide
FiRPHASE and Bass Motion Control

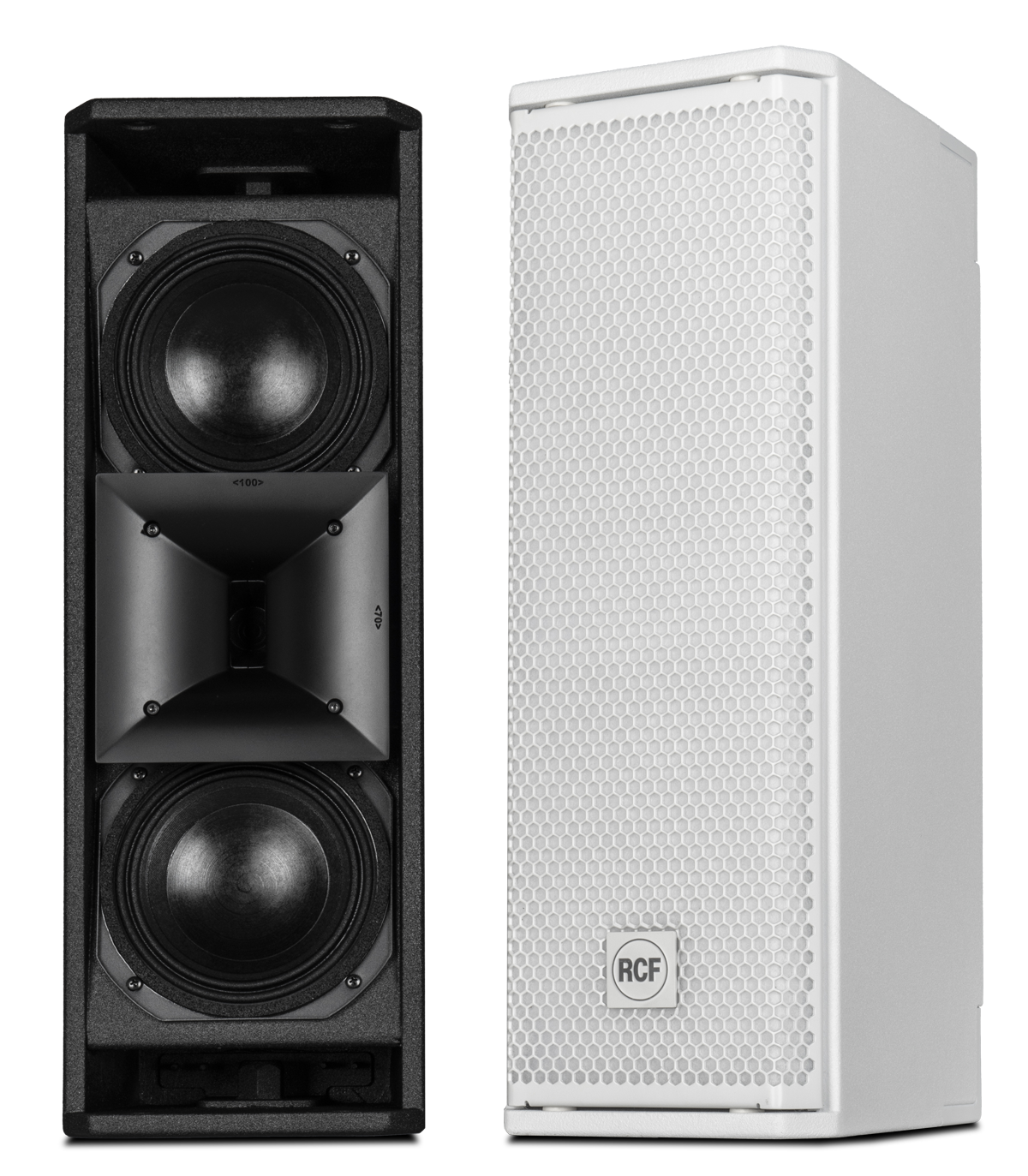

The NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” precision transducer PKX driver loaded in a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.
Small Framework.
Massive Sound.
The NXL 14-A is the most compact active speaker in the professional NXL series. Offered in a sleek black or white finish, this point-source speaker is engineered for clarity, power, and versatility in any live setting or installation. Ideal for vocal reproduction, it excels in compact live systems paired with SUB Series subwoofers, immersive setups, or as a reliable fill speaker. The NXL 14-A delivers professional audio performance where it matters most.
Power that moves
The most powerful amplifier in its class. RCF improvements in translator design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL handles extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy efficient, so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger at the rear of the enclosure, which has no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house the Switch Mode Power Supply section with minimum weight.

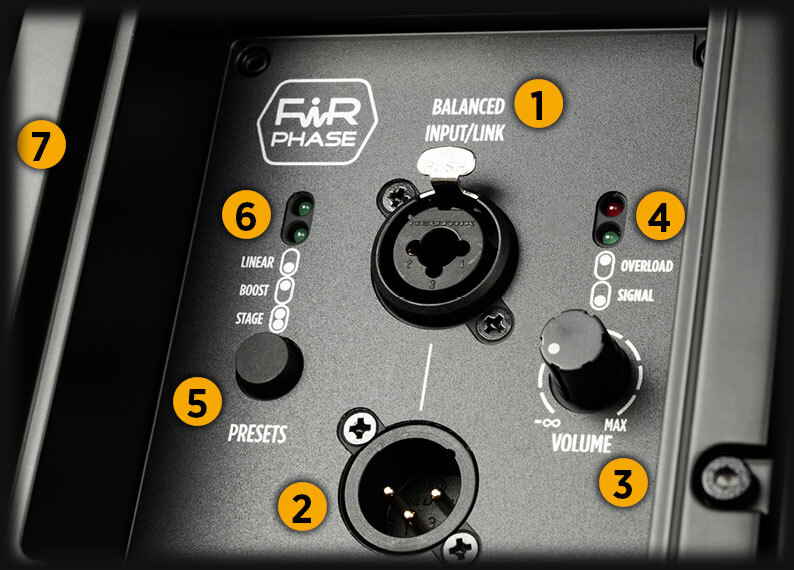

1
Balanced Line Input
2
Balanced Line Link/Output
3
Volume Control [rotate to adjust the volume]
4
Status LEDs: Signal [green - safe input level] and Overload [red - limiting in action]
5
Preset Selection Button
6
Presets:
LINEAR - Fine tuned sound for better clarity
BOOST - Enhanced loudness for background music or punchy bass
STAGE - Perfect fit for frontfill use
7
Aluminum back panel

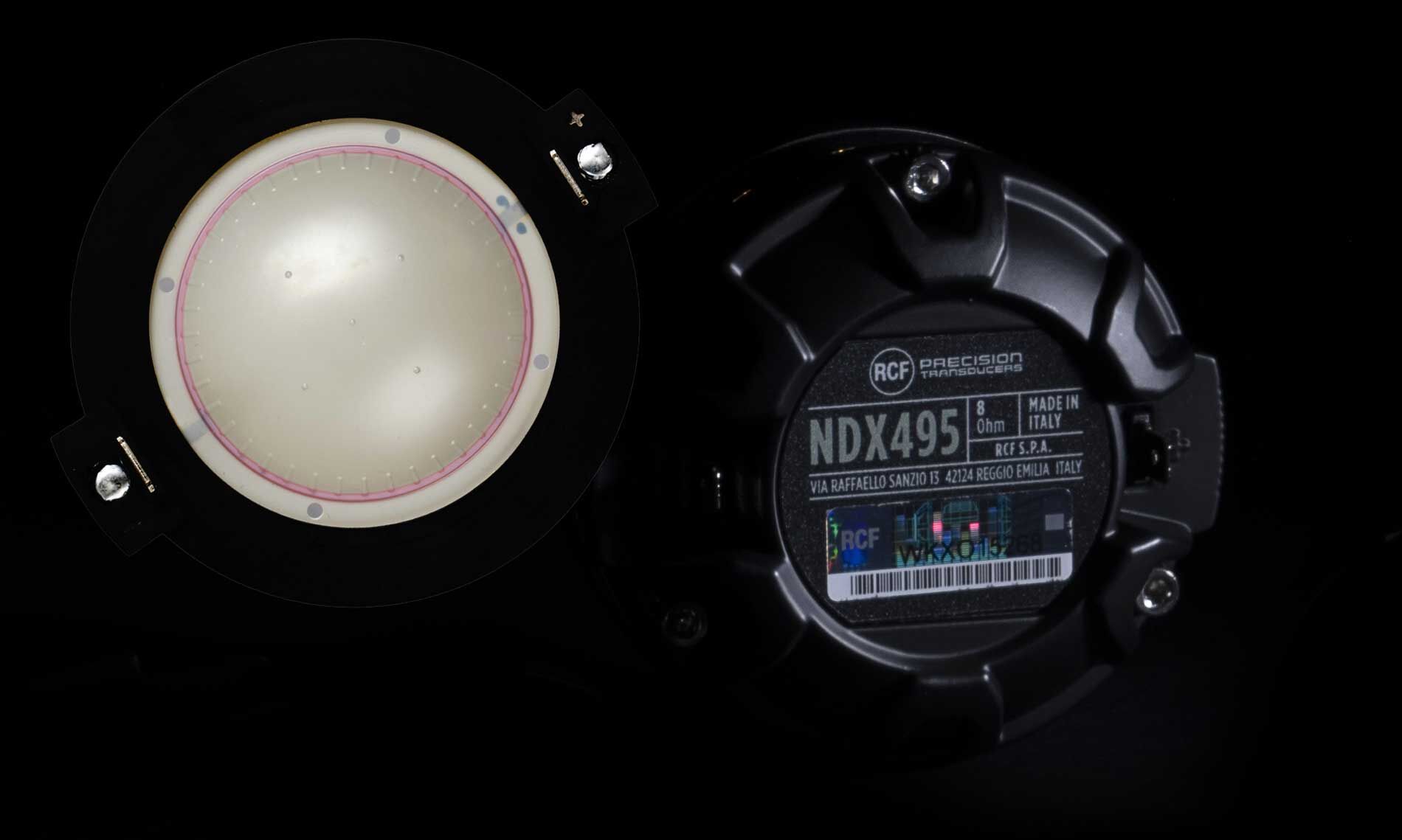

High Frequencies
The 1.75" compression driver features a newly developed organic dome made of PKX (Modified Polyether Ether Ketone). PKX is a lightweight, colorless organic polymer. It is arguably the best of the thermoplastic resin films for its specification in audio applications. Developed by the RCF Precision Transducers lab and enhanced with reinforcing ribs for high-performance thin dome designs, this new compression driver offers greater precision and reliability.

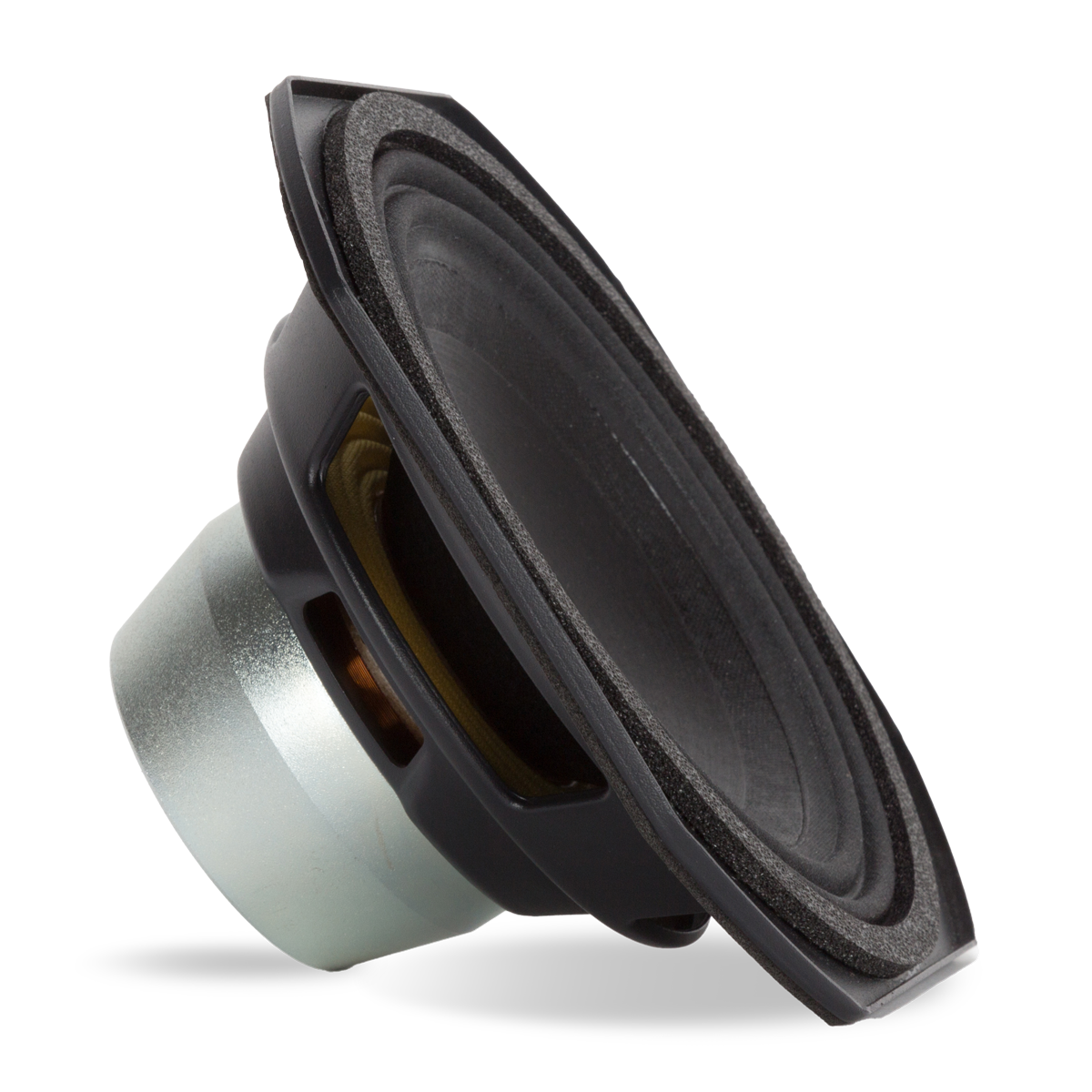

Low Frequencies
The dual woofer configuration features two 6” neodymium woofers designed for robust bass performance. The cone is crafted from water-resistant fiber-doped material, increasing durability and consistent sound quality across various environments. It also includes an M-roll polycotton enclosure that enhances its efficiency and overall audio output. Additionally, the hyper-vented magnetic structure allows for better cooling and improved power handling, resulting in transparent and more reliable sound reproduction.

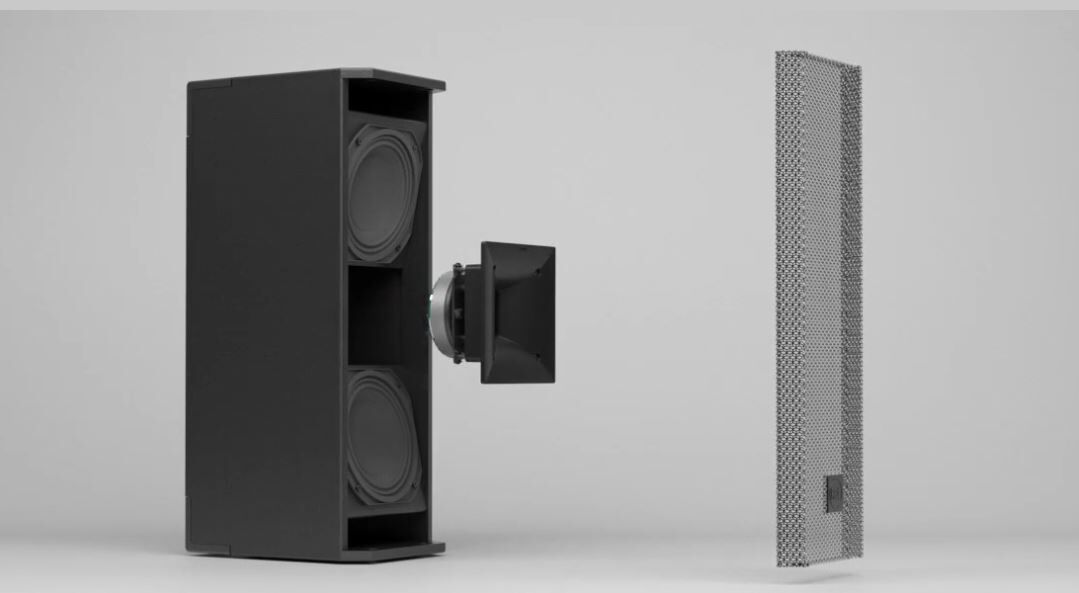

Superior Directivity
Ssymmetrically aligned transducers ensure coherent wavefront projection and smooth response, providing consistent directional control in both horizontal and vertical orientation. The rotatable 100º x 70º waveguide produces precise, constant coverage. This special configuration allows for excellent control of directional characteristics, significantly increasing intelligibility in difficult acoustic environments.
