Cardioid Large Diaphragm Microphone System with M 902 Power Supply, M 803 Cable, M 703 & M 782 Mounts & ZC03 Zipper Case
The fixed cardioid TF29 is a workhorse microphone, accurately capturing nearly any source put in front of it with a natural tonality
TF29 Copperhead
The TF29 is an original TELEFUNKEN Elektroakustik design that has garnered fans for its natural and non-hyped tonality and unparalleled “quality for price”. It’s a workhorse microphone with a reputation of outstanding sonic performance and value, capable of accurately and honestly capturing vocals, guitars, drums, and nearly any other source put in front of it. The Cardioid-only TF29 Copperhead is easily distinguishable from the TF39 by the addition of the Cardioid symbol on the front of the microphone.
Features
Balanced, natural midrange and high end
Extended low frequency response
Fixed Cardioid polar pattern
Premium Swedish-made Lundahl output transformer
New Old Stock General Electric 5654W vacuum tube
Designed and hand assembled in the USA
Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads
Technical Specifications
Type: Vacuum Tube Condenser
Polar Pattern: Cardioid

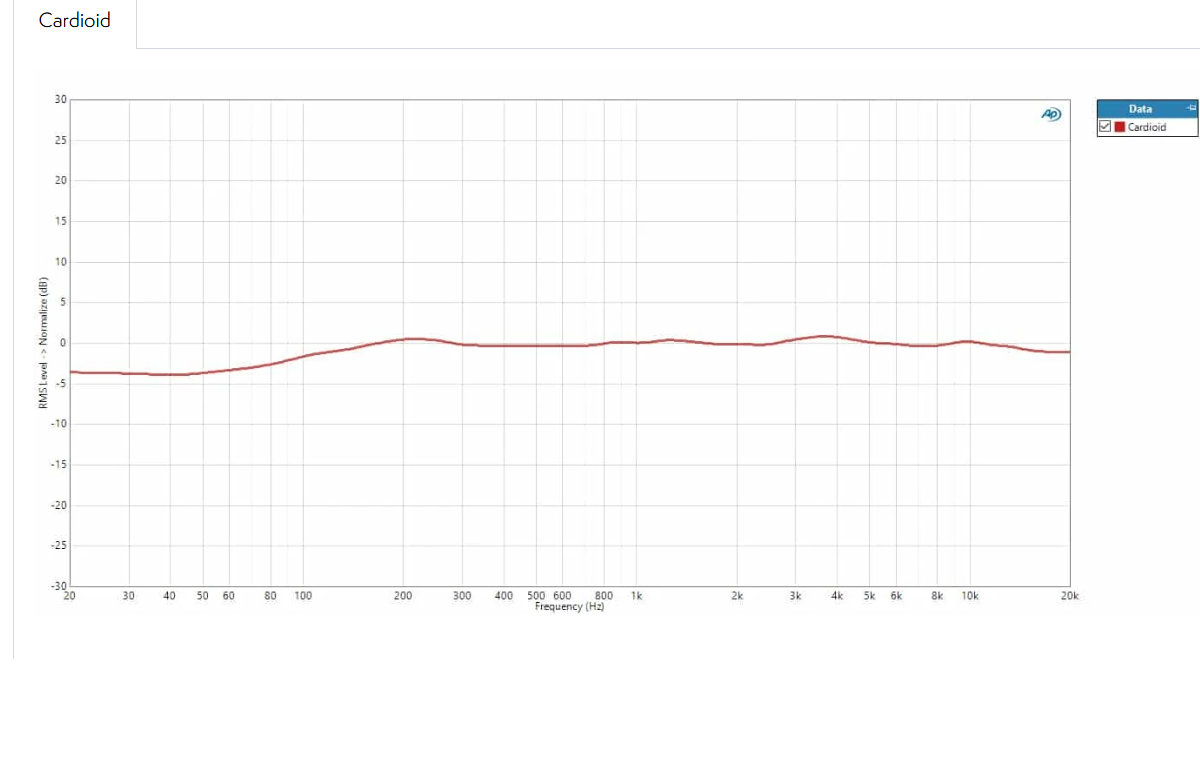

Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TK67S Center Terminated Large Diaphragm, Single Membrane
Tube: NOS GE 5654W
Transformer: Lundahl LL1935
Sensitivity: 17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: < 300 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 87 dBA
Self Noise (Amplifier): 7 dBA
Dimensions: 200 mm L x 46 mm Dia
Weight: 650 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
TF29 Copperhead
Large diaphragm cardioid tube microphone system.
Each system includes:
TF29 Microphone
M 902 Power Supply
M 803 Tube Microphone Cable – 7m
ZC03 Shell Case
M 703 Shock Mount
M 782 Stand Mount
MS01 Microphone Sleeve
