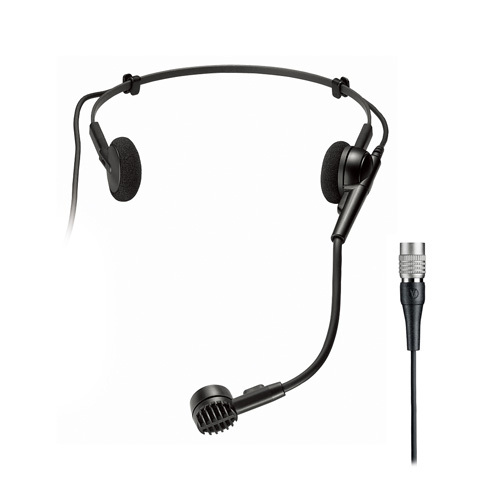

Wireless Hypercardioid Dynamic Headworn Microphone
PRO 8HEcW
Ideal for drummers and keyboard players
Hypercardioid polar pattern improves isolation of desired sound source
Low-visibility headband and cushioned support pads
Pivot-mounted flexible microphone boom
Hi-ENERGY® neodymium element.
Equipped with cW-style locking 4-pin termination for Audio-Technica wireless systems
The PRO 8HEcW includes a 2.2 m permanently attached miniature cable. Its end connects to a locking 4-pin connector. The connector is also compatible with Audio-Technica UniPak® cW type body-pack transmitters.
PRO 8HEcW Specifications
Element
Dynamic
Polar Pattern
Hypercardioid
Frequency Response
200 ~ 18,000 Hz
Open Circuit Sensitivity
-55 dB (1.7 mV) re 1V at 1 Pa
Impedance
600 Ω
Weight
60 g
Dimensions
20.4 mm diameter, 120.0 mm nominal at widest point, 80.5 mm flexible boom
Output Connector
cW-style locking 4-pin connector
Cable
1.4 m long, 2.8 mm diameter
Accessories Furnished
AT8139L large windscreen; AT8139S small windscreen; AT8439 clothing clip
Audio-Technica announces the new 2000 Series UHF True Diversity Wireless Microphone Systems, the company’s latest entry in its extensive line of professional wireless systems. The 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses, and places of worship. It offers true diversity operation, easy setup, automatic frequency scanning with interference-free performance, and all the advantages of a high-quality, professional wireless system at an extremely affordable price.
Operating with 10 selectable frequencies and true diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency (open channel) — particularly useful when employing multiple wireless systems, thereby avoiding interference and intermodulation. When there is a need to utilize multiple wireless systems simultaneously, any of the 2000 Series’ 10 channels may be used together without any frequency coordination problems or group selection issues. Additionally, the 2000 Series incorporates Audio-Technica’s digital Tone Lock™ squelch plus an easy-to-read LCD information display, which provides convenient visual indications of settings and operation status.
The 2000 Series is comprised of two system options: the ATW-2110 UHF UniPak™ Transmitter System, consisting of the ATW-R2100 true diversity receiver and the ATW-T210 UniPak body-pack transmitter; and the ATW-2120 UHF Handheld Dynamic Microphone System, which also includes the ATW-R2100 receiver, plus the ATW-T220 handheld microphone/transmitter. The ATW-T220 microphone is engineered with the same capsule as Audio-Technica’s acclaimed PRO 41 microphone, providing a focused vocal pickup while offering superior gain before feedback.
The true diversity ATW-R2100 half-rack receiver features an all-metal housing for superb shielding, as well as dual independent receiver sections. Its true diversity operation selects the best signal from the two independent receiver sections, thus reducing dropouts and minimizing multipath distortion. The ATW-R2100 offers 10 PLL-synthesized UHF frequencies, advanced digital Tone Lock squelch, soft-touch controls with LCD information display, detachable UHF antennas, plus a rack-mount kit. Also included is a transmitter battery indicator LED, XLRM-type balanced and 1/4" unbalanced outputs, plus a ground-lift switch.
The versatile ATW-T210 UniPak body-pack transmitter has a multi-function LCD display, soft-touch controls for convenient set-up and operation, along with low- and high-impedance inputs (with a bias connection) for use with dynamic and electret condenser microphones as well as Hi-Z instrument pickups. In addition to its programmable functions, the ATW-T210 has a hinged cover to limit access to controls as appropriate for the application and user. The
ATW-T210 is powered by two easily installed 1.5V AA batteries that provide approximately nine hours of operation. The ATW-T210 is compatible with the Audio-Technica Wireless Essentials® accessories.
