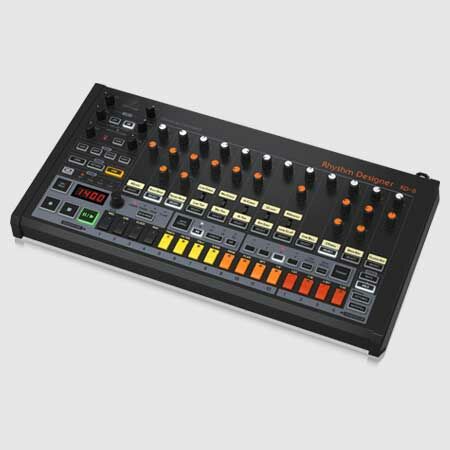

Behringer RD-8 MKII Drums and Percussion Drum Machine

Behringer RD-8 MKII Drums and Percussion Drum Machine

HK$2,890.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.

Description

HONG KONG DEALER


Classic Analog Drum Machine with 16 Drum Sounds, 64 Step Sequencer, Wave Designer and Dual-Mode Filter

RD-8MKII
The RD-8 MKII provides all the tools you need to become a master beat-maker, including: 16-drum sounds; a 64-step sequencer; Wave Designer and dual-mode filter – for a full-fledged drum machine that'll shake the house! Whether you're new to drum programming or a seasoned pro looking to upgrade your setup, the RD-8 MKII has everything you need to step up to the big time.

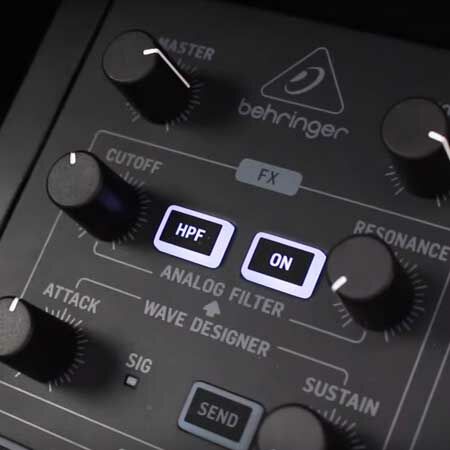

Wave Designer and Dual-Mode Filter
The integrated Wave Designer has individual attack and sustain controls that can be applied to individual voices to bring another dimension to your drum beats. This provides yet another way to control sounds to build virtually unlimited – and awesome new tones. Additionally, the RD-8 MKII's highly flexible dual-mode 12 dB filter button toggles between LPF and HPF, allowing you to experiment with the cutoff frequency and resonance controls to create out of this world beats. Those fluid sweeps can even be recorded straight into the sequencer and further tweaked using the step editor.




Parameter Chaining
The RD-8 MKII's robust encoder lets you set separate chain preferences for each of your parameters, allowing them to function globally or to switch on when a song or pattern changes. Parameters include tempo, swing, flam, probability, independent track mutes/solos , FX bus assignments, filter modes and sweeps for enhanced real-time control. Patterns can be changed on the fly for further creative control when using the RD-8 MKII as the heart of your live setup.







USB Control
To bring the RD-8 MKII into the modern age, USB connectivity has been added for sync and MIDI triggering. This enables the RD-8 to be controlled by your DAW if desired, allowing songs and patterns to be swapped or individual sounds to be triggered.




The Numbers
The RD-8 MKII has 29 knobs, 5 switches and 59 buttons, all laid out in a highly intuitive format that puts the fun back into your beat creation. Input and output connections include: Phones; Mono audio; MIDI In, Out and Thru over USB and 5 pin MIDI ports; and 11 independent analog outputs for external processing or recording your rhythms as multitrack audio. With its 3 trigger outs, the RD-8 lets you control external synths and hardware sequencers to create songs without a digital audio workstation (DAW) in sight. The RD-8 can also send and receive clock information with highly accurate timing to sync it to the outside world.

Specification
Show less
Voices
Number of sounds
16

Type
Analog

Number of simultaneous voices
11 (12 including global accent)

Sound controls
Accent
Level

Bass drum
Level, tone, decay, tuning

Snare drum
Level, tone, snappy

Low, mid, hi conga / low, mid, hi tom
Level, tuning, voice selection

Claves / rim shot
Level, voice selection

Maracas / hand clap
  Level, offset, voice selection

Cow bell
  Level

Cymbal
Level, tone, decay

Open hat
  Level, tone, decay

Closed hat
Level, tone

Select buttons
16 Voice select buttons

Connectivity
Outputs
Phones
1 x ¼" TRS, stereo, 8Ω impedance

Mono
1 x ¼" TRS, servo-balanced

Voice out
11 x ¼" TS, unbalanced

MIDI In, Out & Thru
3 x 5-pin DIN

Trigger outs
3 x +5 V, 1 ms pulse

Clock in/out
2 x 1/8"TS

USB
Class compliant USB 2.0, type B

Supported operating systems
Windows 7 or higher Mac OS X 10.6.8 or higher

Volume controls
Master, phones

Return(Input)
  1 x ¼" TRS, balanced

Wave Designer
Bus
  11 voices, independently assignable

Controls
Attack
  -15 to +15 dB, adjustable

Sustain
-24 to +24 dB, adjustable

Send button
On/off, switchable

SigLED
  Red

Analog Filter
Type
State variable, 12 dB slope

Cutoff
10 Hz - 15 kHz, adjustable

Resonance
0 - 10, adjustable

HPF button
LPF / HPF mode, switchable

On button
On / off, switchable

Sync Section
Mode selector
Internal / MIDI / USB / Clock, selectable

Sequencer Section
Edit buttons
Save, copy, erase and dump

Mode buttons
Song, pattern and step

Control
Encoder for data editing

Playback controls
Tap/hold, record, stop, play/pause

Data mode
Tempo / swing / prob / flam, selectable

Auto scroll
On / off, rewind, length (16 / 32 / 48 / 64, selectable), fast forward

Trigger
On / off, repeat division (1 / 2 / 4 / 8, selectable), step repeat, note repeat

Track
Mute/solo, selectable

Step buttons
16 step enter buttons

Settings
Settings
Enter settings mode, use step buttons to select operation.

Autofill
Autofill
Enter autofill selection mode

Songs/Storage
Song mode
Chain any of the 16 songs together for full sets

Pattern/Storage
Capacity
16 songs, 16 patterns each

Pattern mode
Up to 99 iterations per pattern/part

Steps
64 steps

Power Supply
External power adapter
18 V DC, 1000 mA

Power consumption
15 W typical

Environmental
Operating temperature range
5°C to 40°C (41°F to 104°F)

Physical
Dimensions (H x W x D)
77 x 498 x 265 mm (3.0 x 19.6 x 10.4")

Weight
3.0 kg (6.6 lbs)
