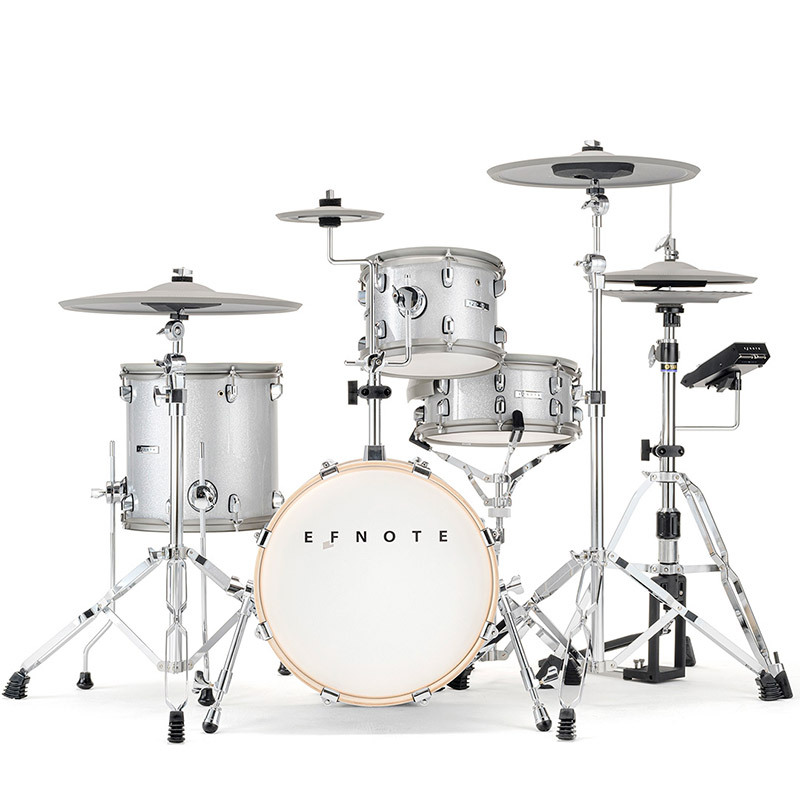

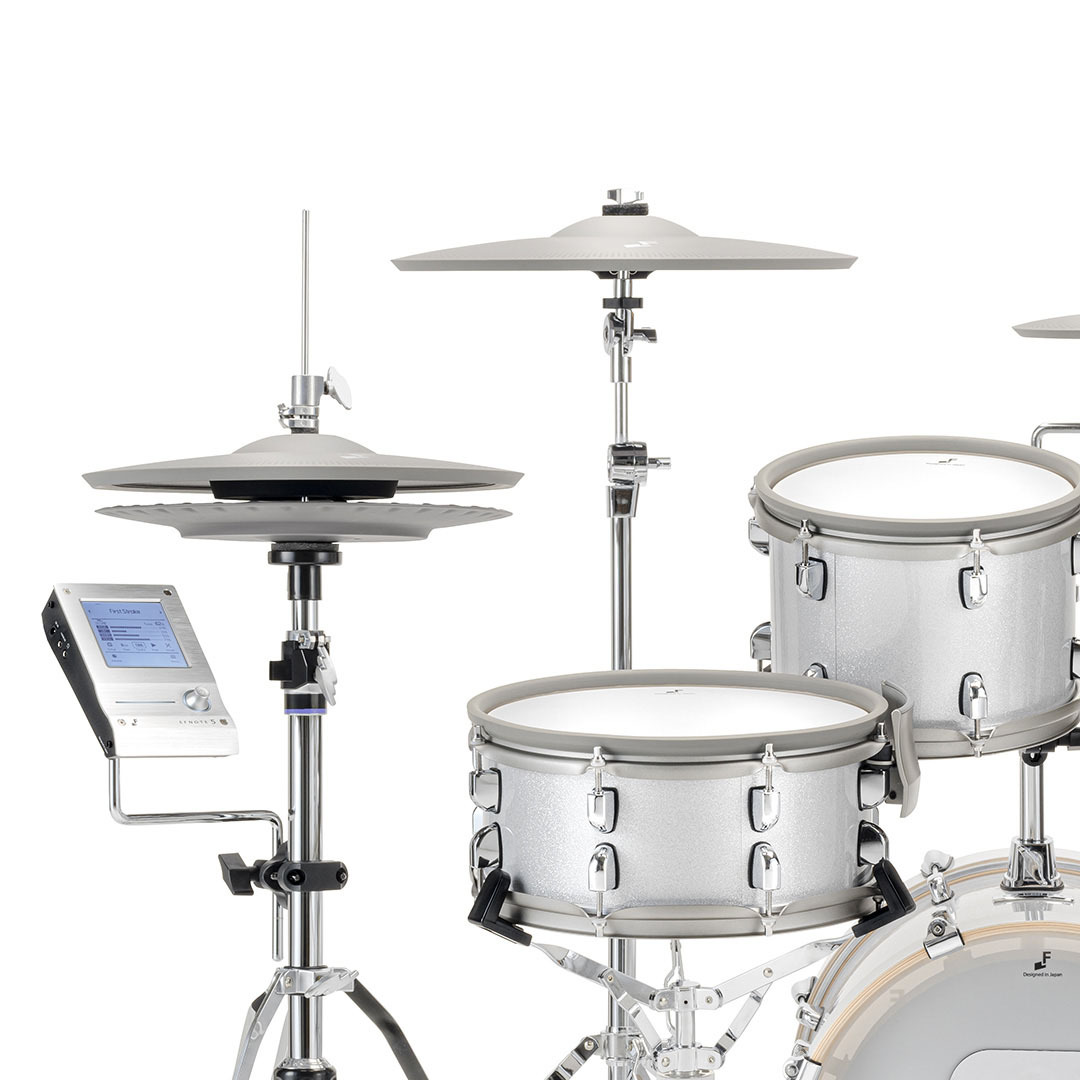

The Small Giant
Maximum expressiveness with minimum setup
360° flat sensing with multi-sensor technology
Expandable to 5-piece shell and 5-piece cymbal set
Specializes in Acoustic
Beautiful acoustic drum sounds
99% capacity is used for acoustic drum sound
Includes rich ambient that reinforces the drum sound
Drums & Cymbals

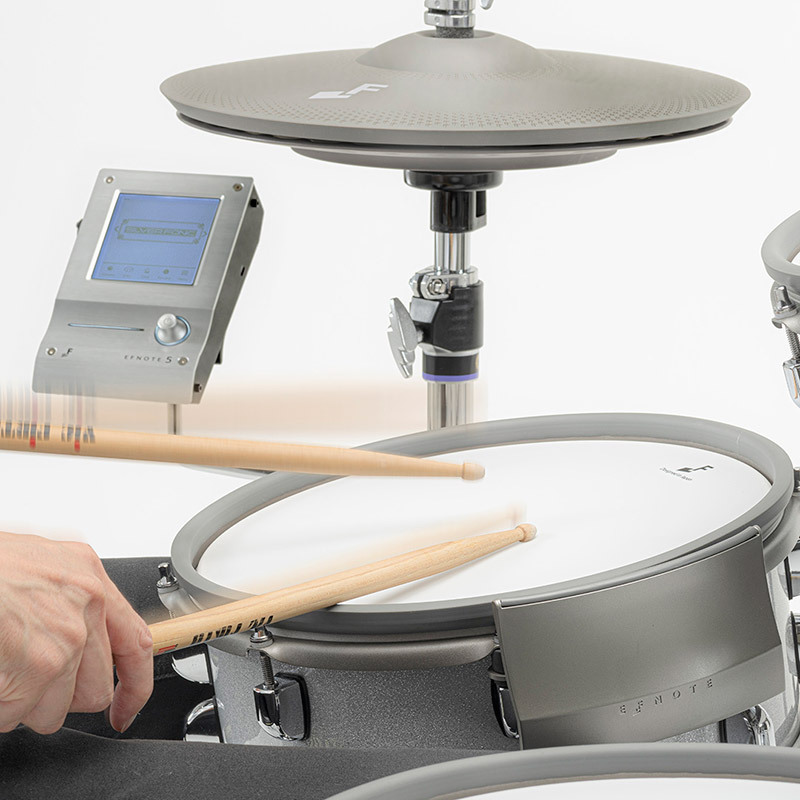

7-Sensor Snare Drum
12 x 5", 8 lugs, birch wood shell, 2ply mesh drum head
Multi-sensor for hotspotless and high-resolution sounding
High head tension tuning available

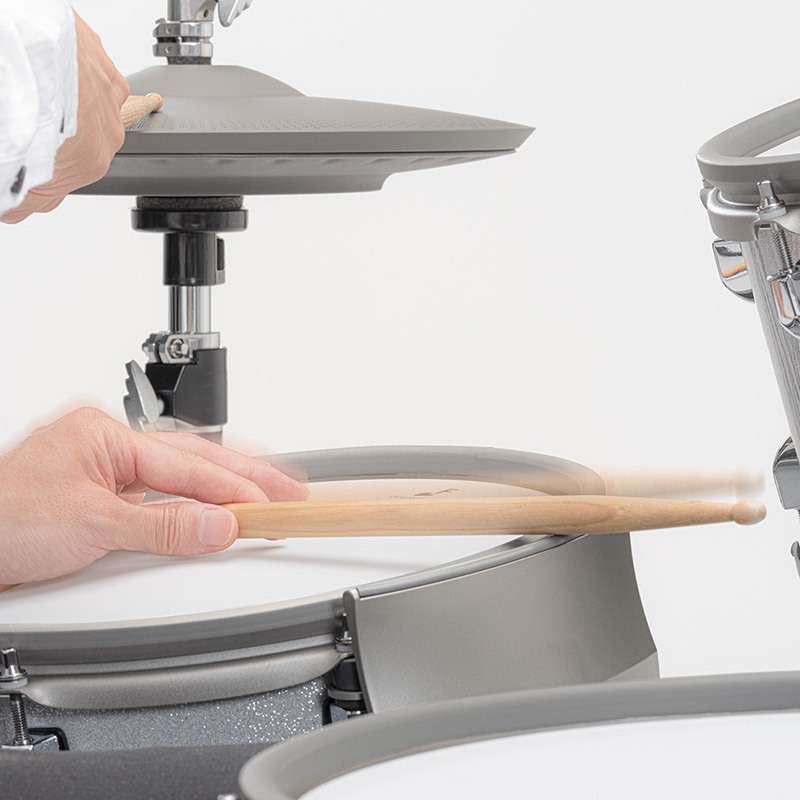

Independent Side-Rim
Easy, intuitive and reliable
No switch operation required
Elegant arc design

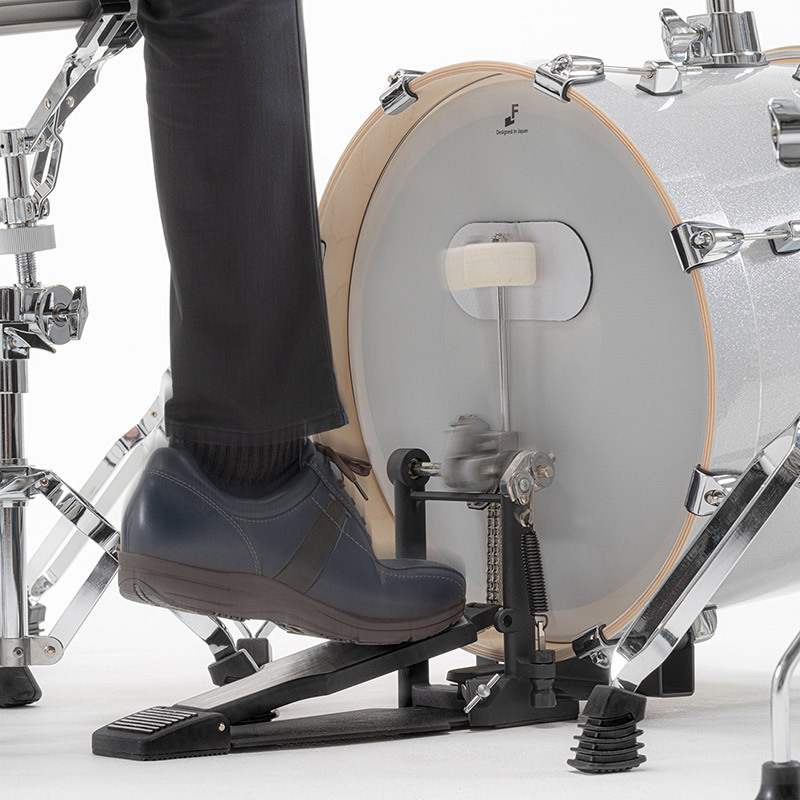

16" Kick, More Than the Size
16 x 12", 8 lugs, birch wood shell, 2ply mesh drum head
Comfortable feeling and stability over its size
Stable multi-sensing for single/double beater(s)

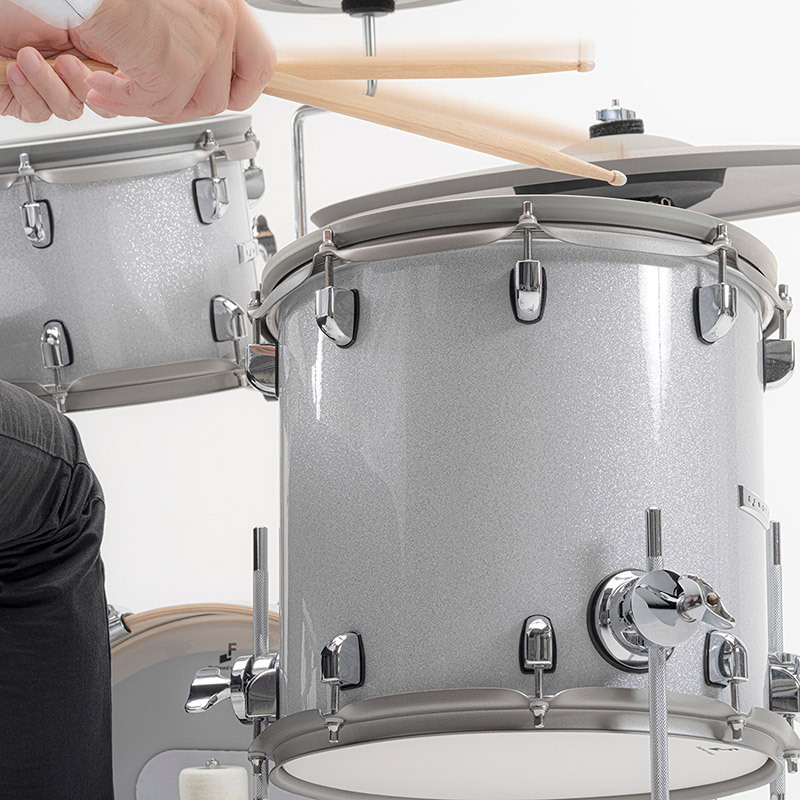

Multi-Sensored Toms
10 x 7", 6 lugs / 12 x 12", 8 lugs
Birch wood shells, 2ply mesh drum heads
Multi-sensor for hotspotless and high-resolution sounding
Low head tension tuning available

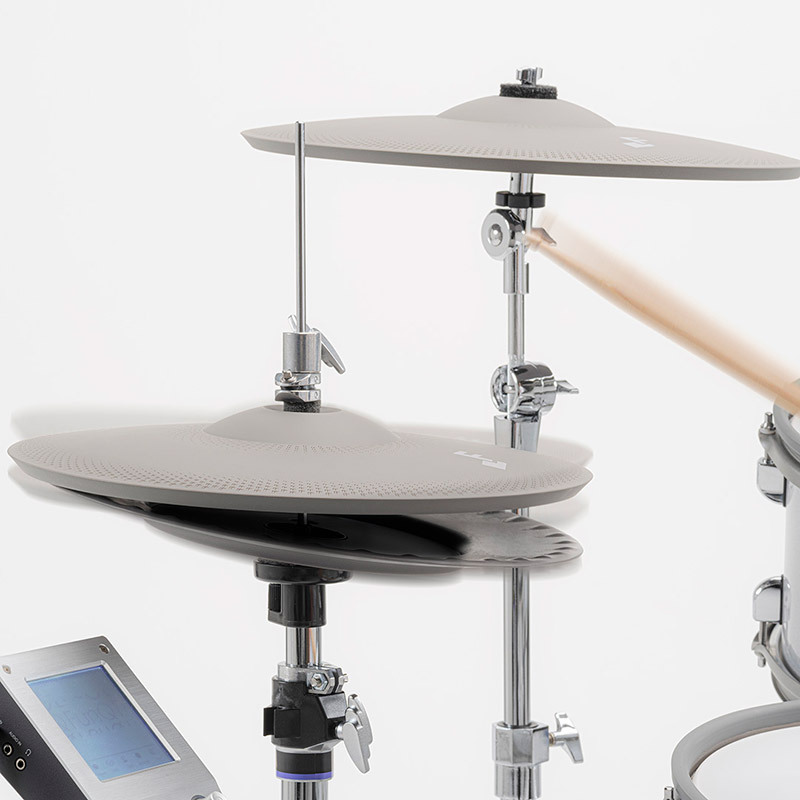

Finest Hi-Hat Cymbals
14" top/bottom cymbals
World's first multi-optical sensing to capture the motions in 3D
Tru-Motion™ technology for expressiveness leap
360° free-swinging top/bottom cymbal design
18" Full Ride Cymbal
18" ride cymbal, 3-zone (Bow/Edge/Cup)
Multi-sensored 360° play/choke area
360° free-swinging design
Responsive thin edge

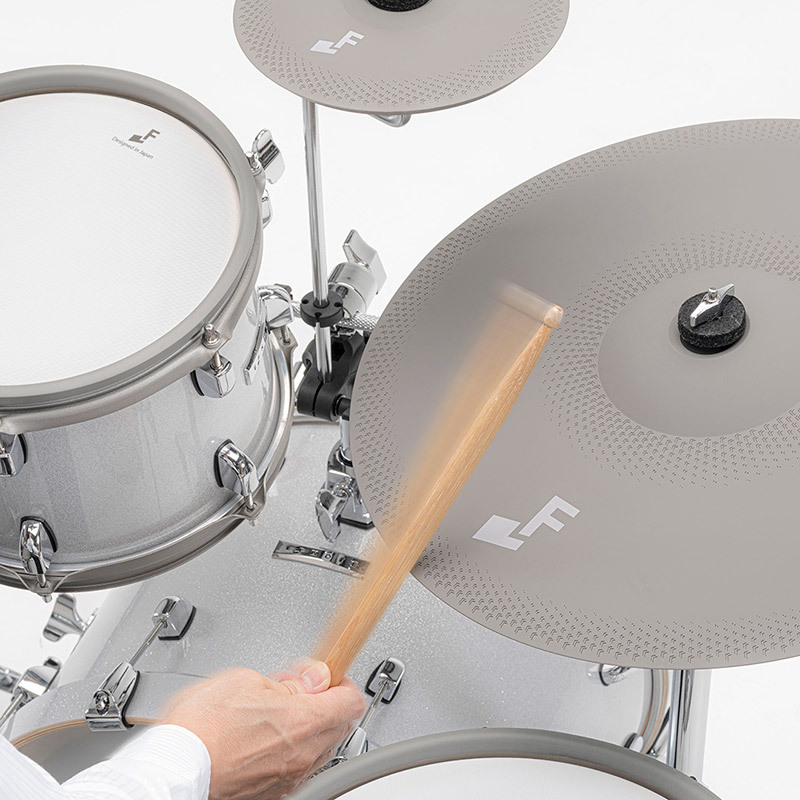

3-Zone Crash Cymbal
16" crash cymbal, 3-zone (Bow/Edge/Cup)
Multi-sensored 360° play/choke area
360° free-swinging design
Responsive thin edge

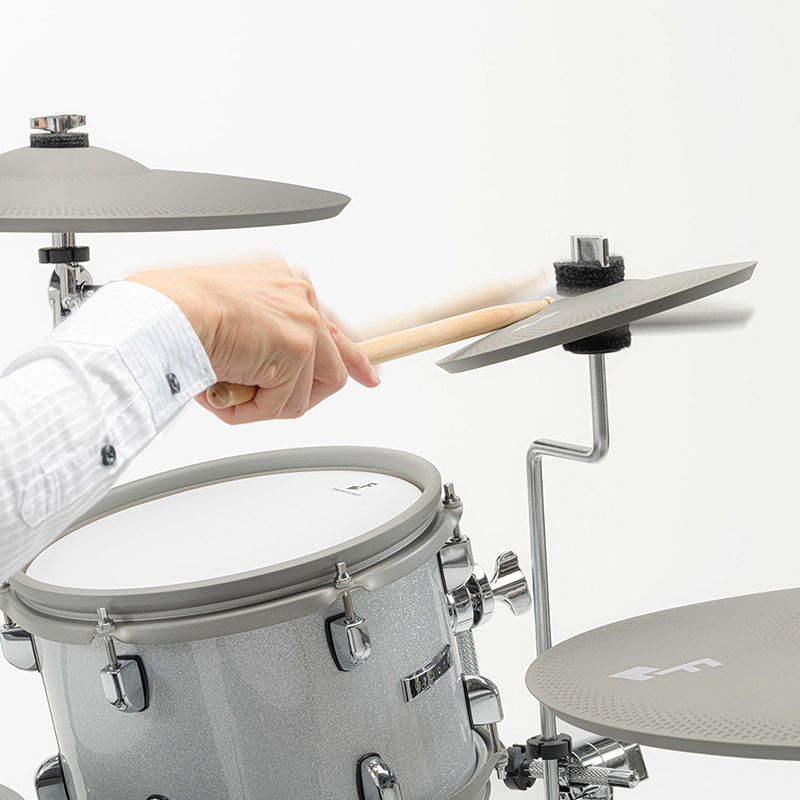

Splash!
8", 2-zone (Bow/Edge)
Ultra thin and light weight design
Multi-sensored 360° play/choke area
360° free-swinging design
Responsive thin edge

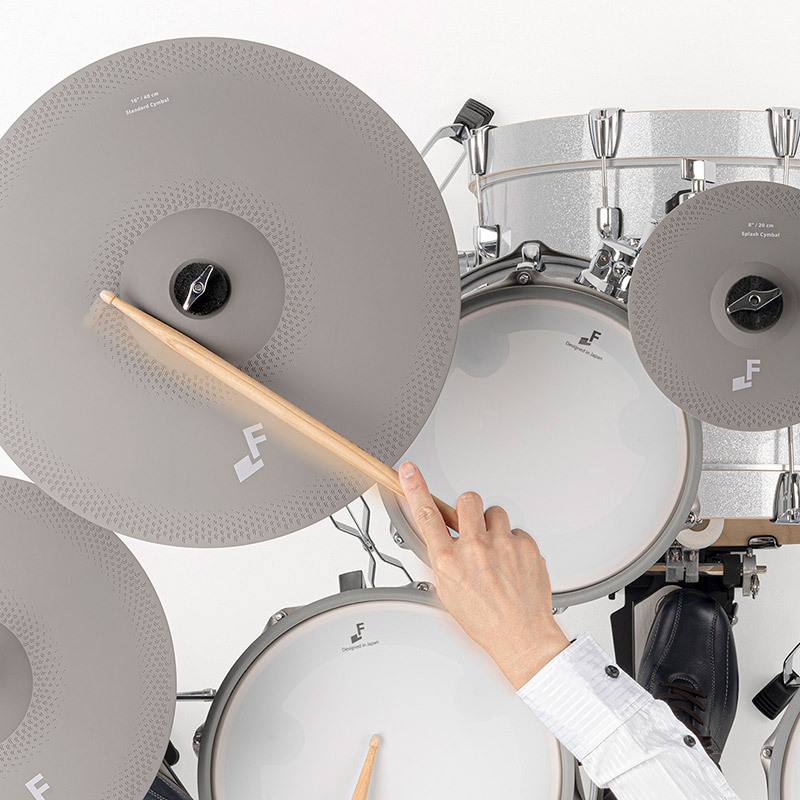

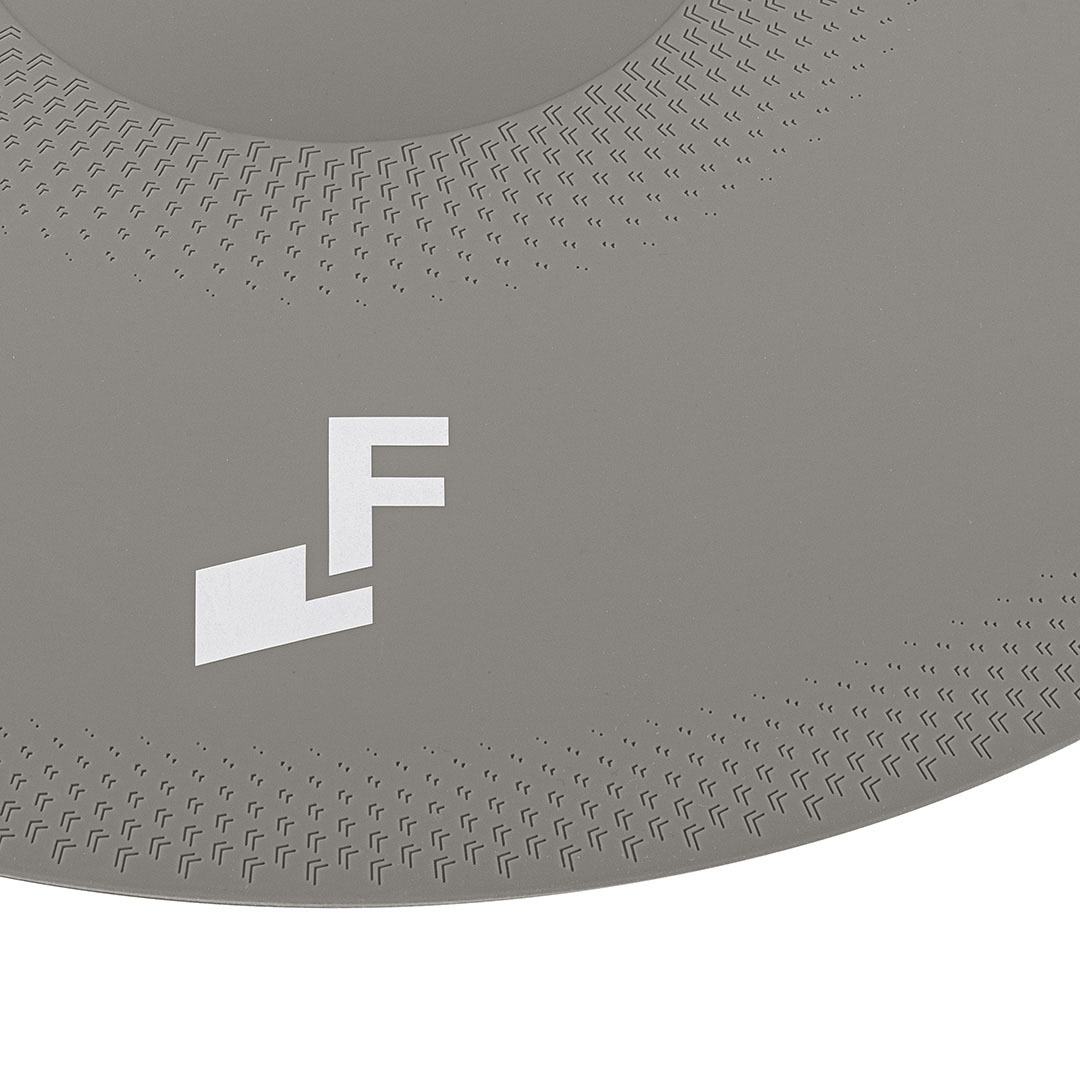

Beautiful Cymbal Surface
Elegant warm-gray surface with fine engravings
Clean silicone rubber surface that is resistant to drumstick marks
Sound Module

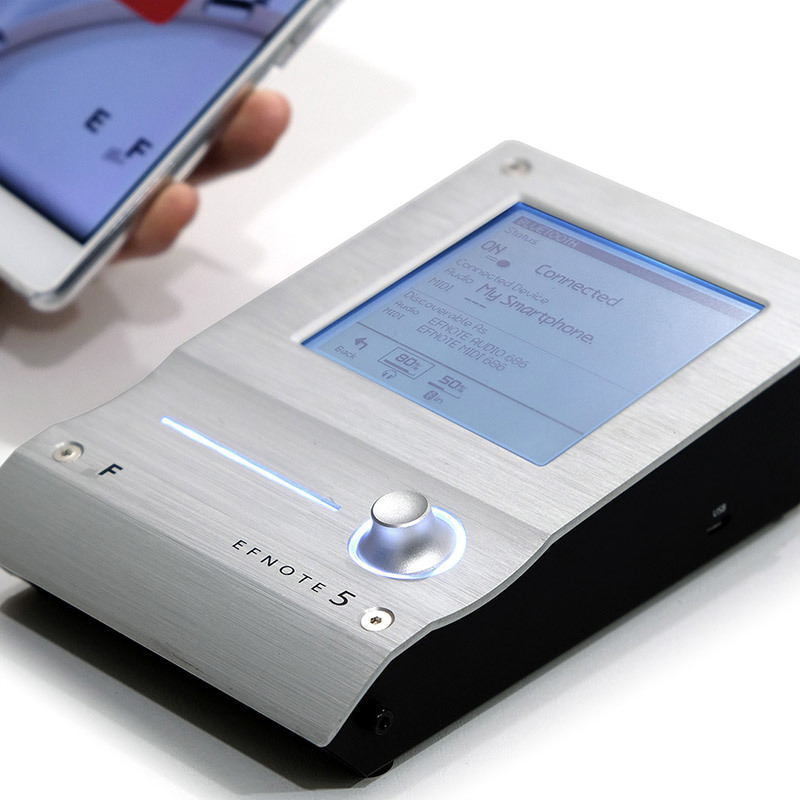

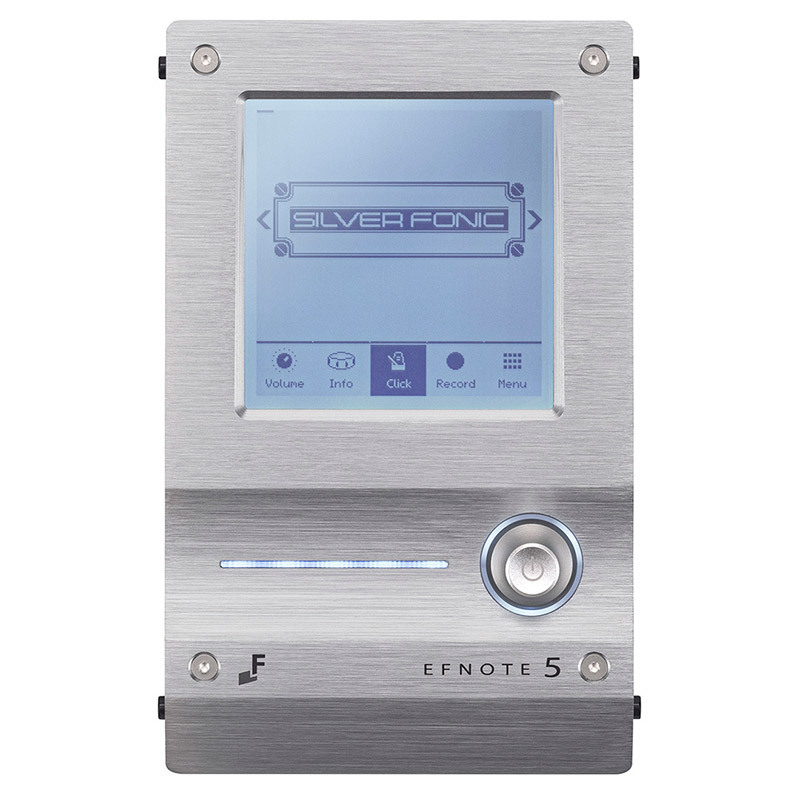

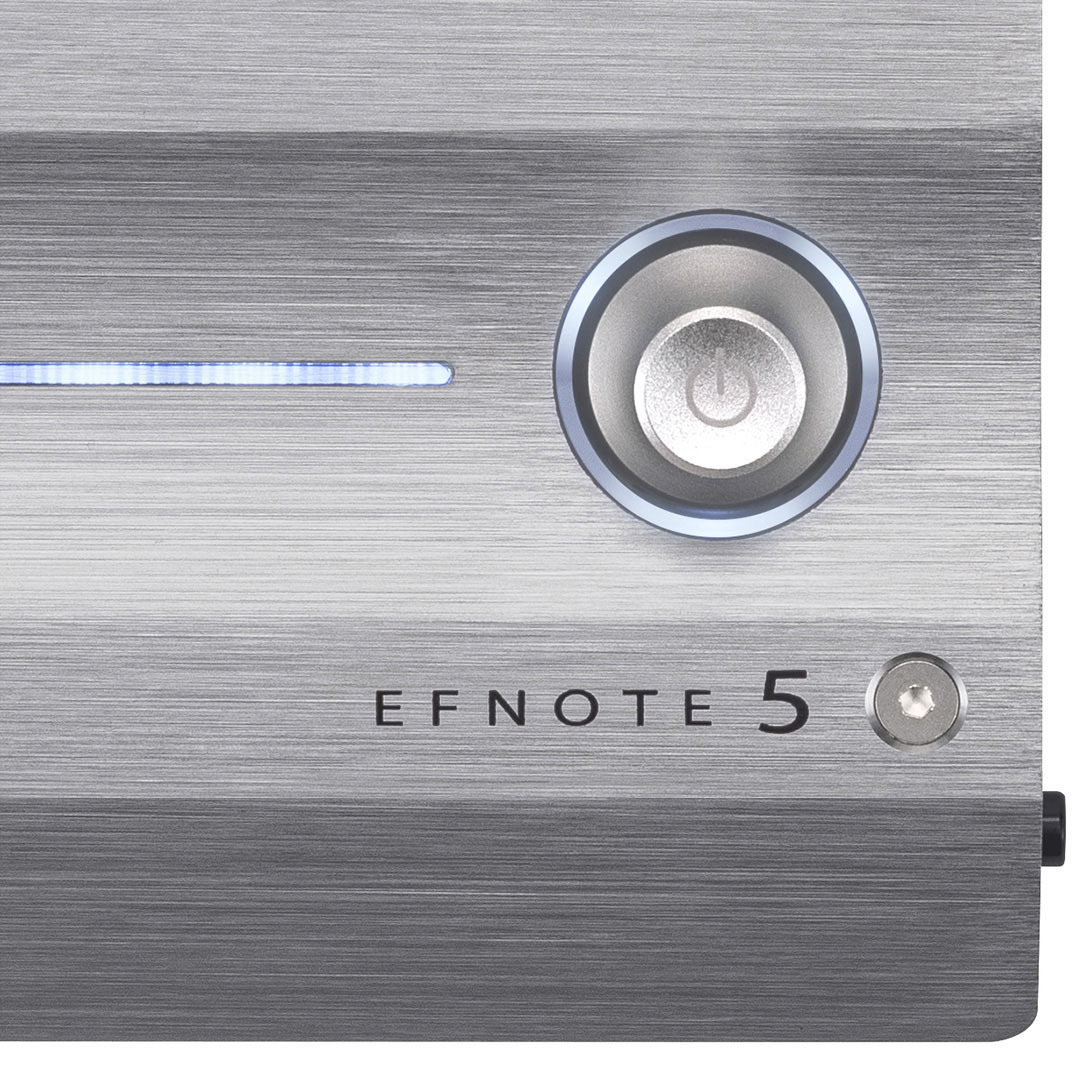

Ultra-Compact Sound Module
Ultra-small form factor with uncompromised features
Metal chassis and aluminum finish
High quality DAC and audio circuit
High power headphone amplifier
Touch screen intuitive user interface
ELISE™ Sensing Processor
Capturing drummer's intentions from each stroke
Low latency, wide dynamic-range, consistent and stable sensing
Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads
Full-Scale Acoustic Sound
Full stereo acoustic drum/cymbal samples recorded by EFNOTE
Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
Raw sound without resynthesis
For Training
Multi-function metronome with beat LED indicator
Built-in metronome speaker for daily training without headphones
On-board drum recording function (15 tracks)

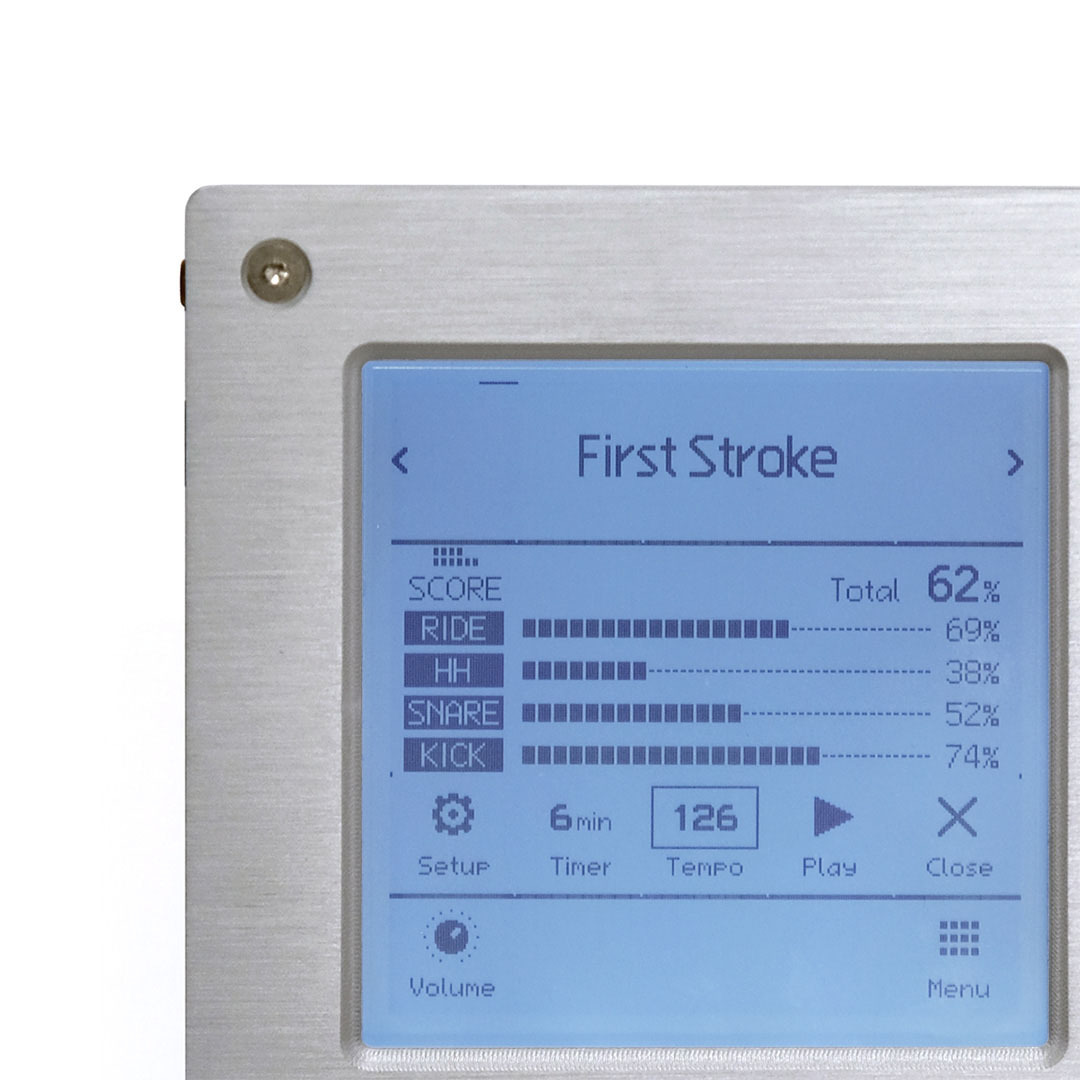

Stroke Analyzer
Rhythm Box feature provides over 90 basic drum beats
For Recording

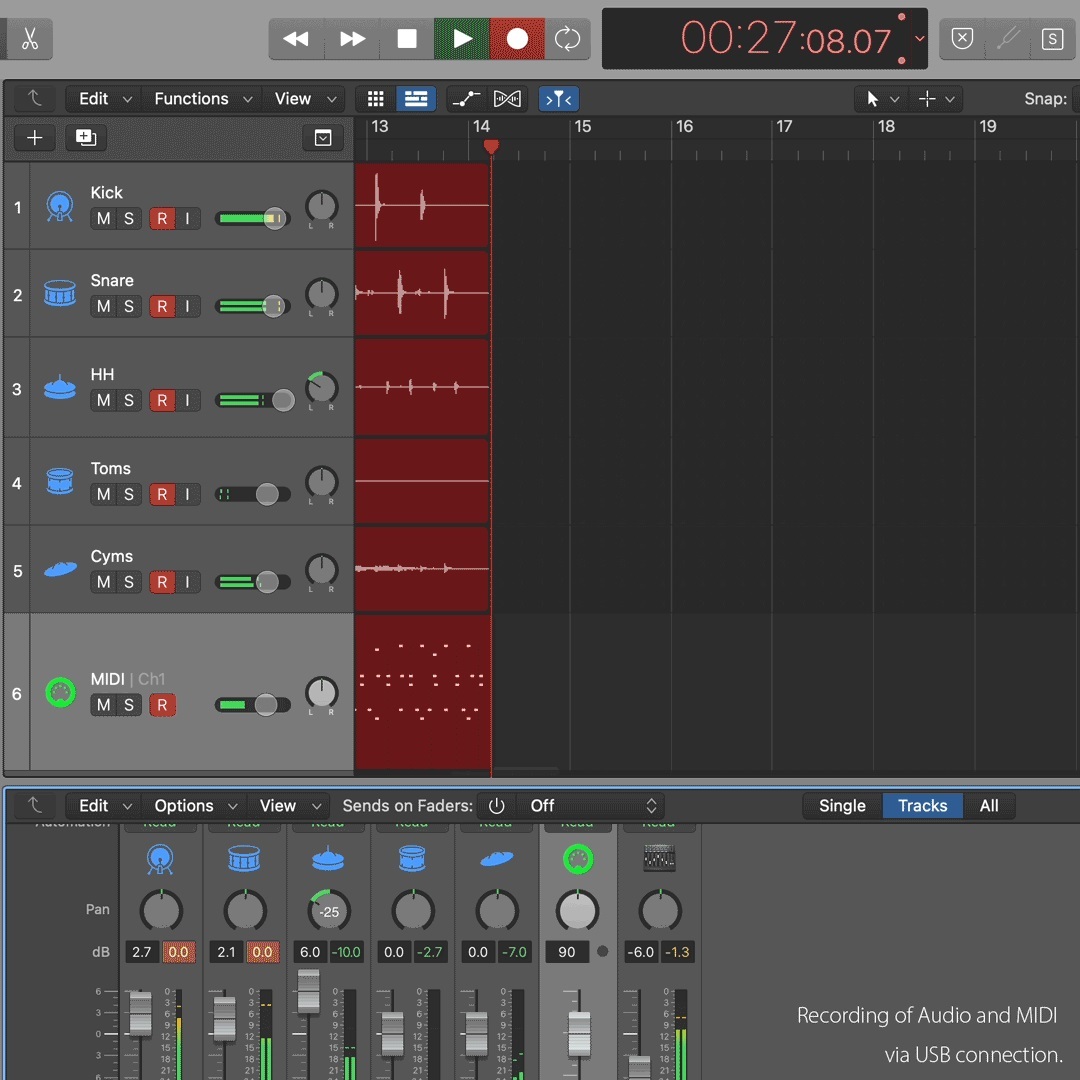

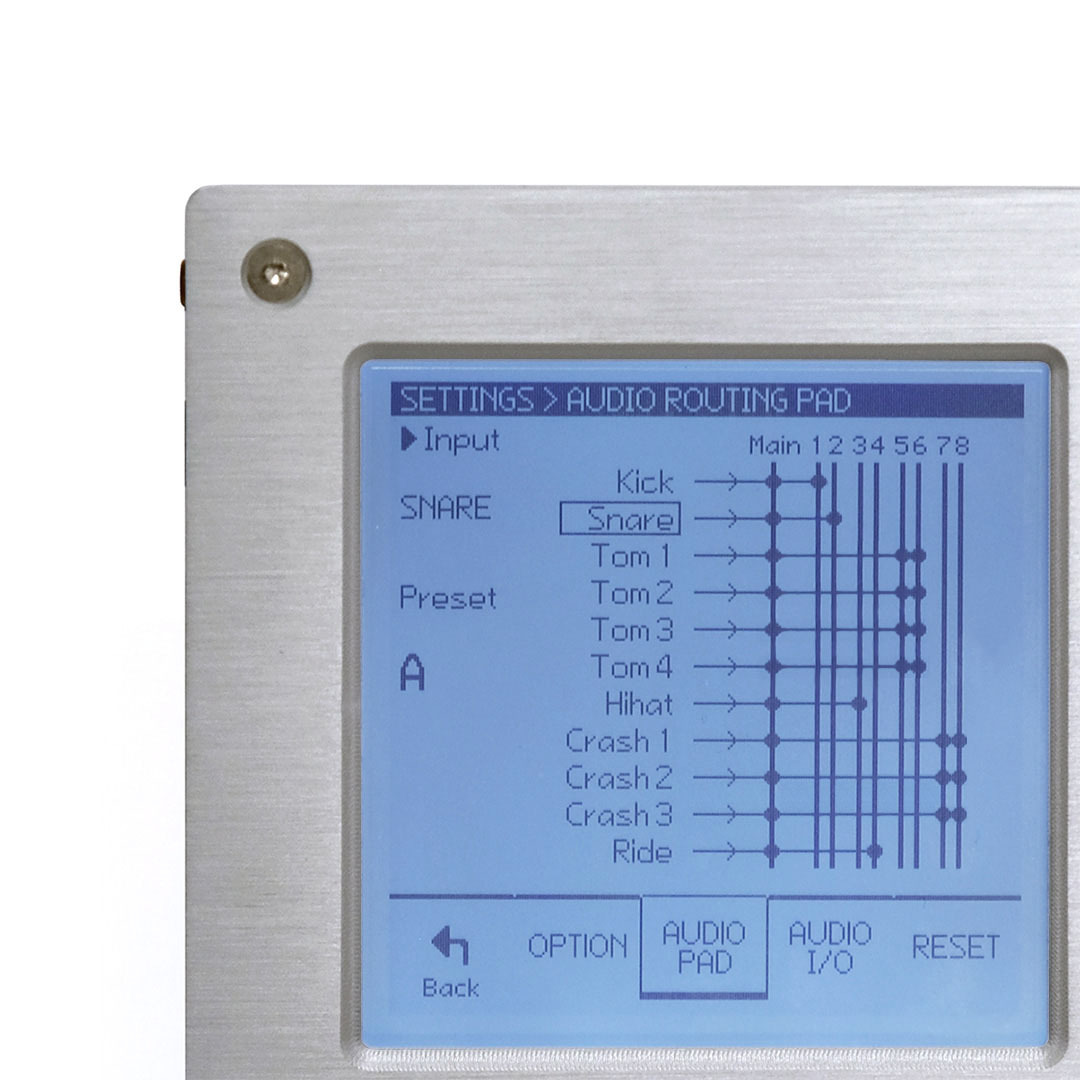

USB 8-ch individual audio outputs with Mac / Windows (ASIO)
USB 2-ch audio inputs for playback
Analog 4-ch audio outputs
USB MIDI in/out with individual MIDI channels
MIDI output (5-pin DIN)
For Small Gigs

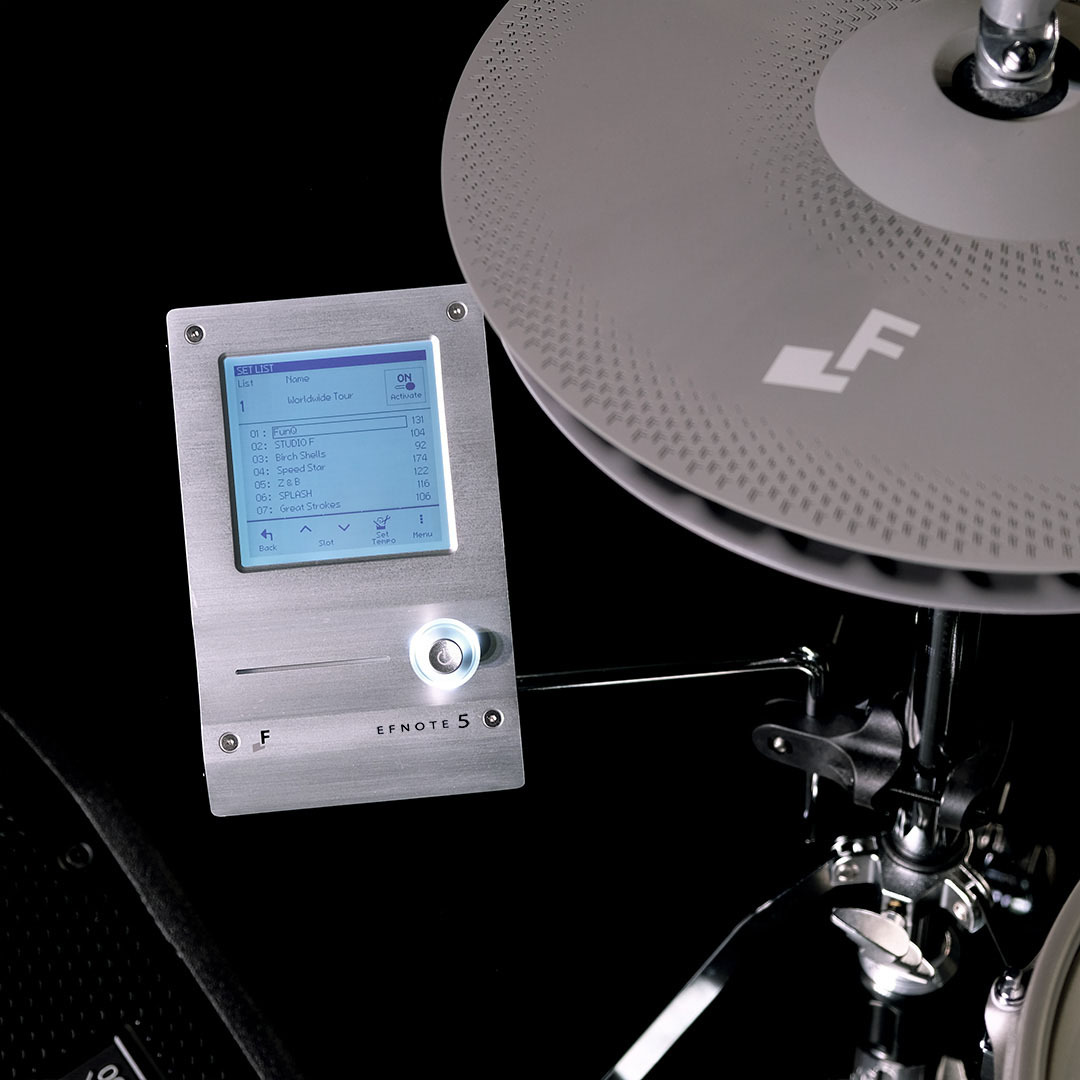

Setlist feature enables you to configure kit order with tempo for each song
Kick and Snare can be output individually with analog 4-ch outputs
Click and Audio-In can be assigned only for headphones
High-power headphones output
MIDI output (5-pin DIN)
Drum / Cymbal Pads
Kick EFD-K1612
Size: 16 x 12"
Finish: White sparkle
Zone: Head
Sensor: Multi
Head: Double-layered mesh with beater patch
Connector: Head (TRS Phones)
Features:Bass drum riser, Wood hoop
Snare EFD-S1250
Size: 12 x 5"
Finish: White sparkle
Zone: Head / Rim / Side-Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim, Side-Rim (2x TRS Phones)
Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1070
Size: 10 x 7"
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Colored hoop rubber
Floor Tom EFD-T1212
Size: 12 x 12"
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
Size: 14" (Top/Bottom)
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke) / Optical
Connector: 6-pin
Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.
EFNOTE 5 sound module does not support hi-hat cup zone.
Crash EFD-C16
Size: 16"
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface
Ride EFD-C18
Size: 18"
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface
Splash EFD-C08
Size: 8"
Color: Warm gray
Zone: Bow / Edge
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge (TRS Phones)
Features: Weight simulation, Fine engraved surface
Sound Module: EFD-5
Trigger Interface
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
EFNOTE 5 uses the Crash 3 cable for the splash cymbal.
Audio / MIDI Interface
Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
Audio Input: Stereo Mini-Phone (+2dBu Max)
USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
Bluetooth Audio Input
Bluetooth MIDI In/Out
MIDI Out: 5-pin DIN
Drum Kits / Instruments
Preset Drum Kits: 17 (Editable)
User Drum Kits: 83
Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
User Inst Library: 128 (Can be stored customized instruments)

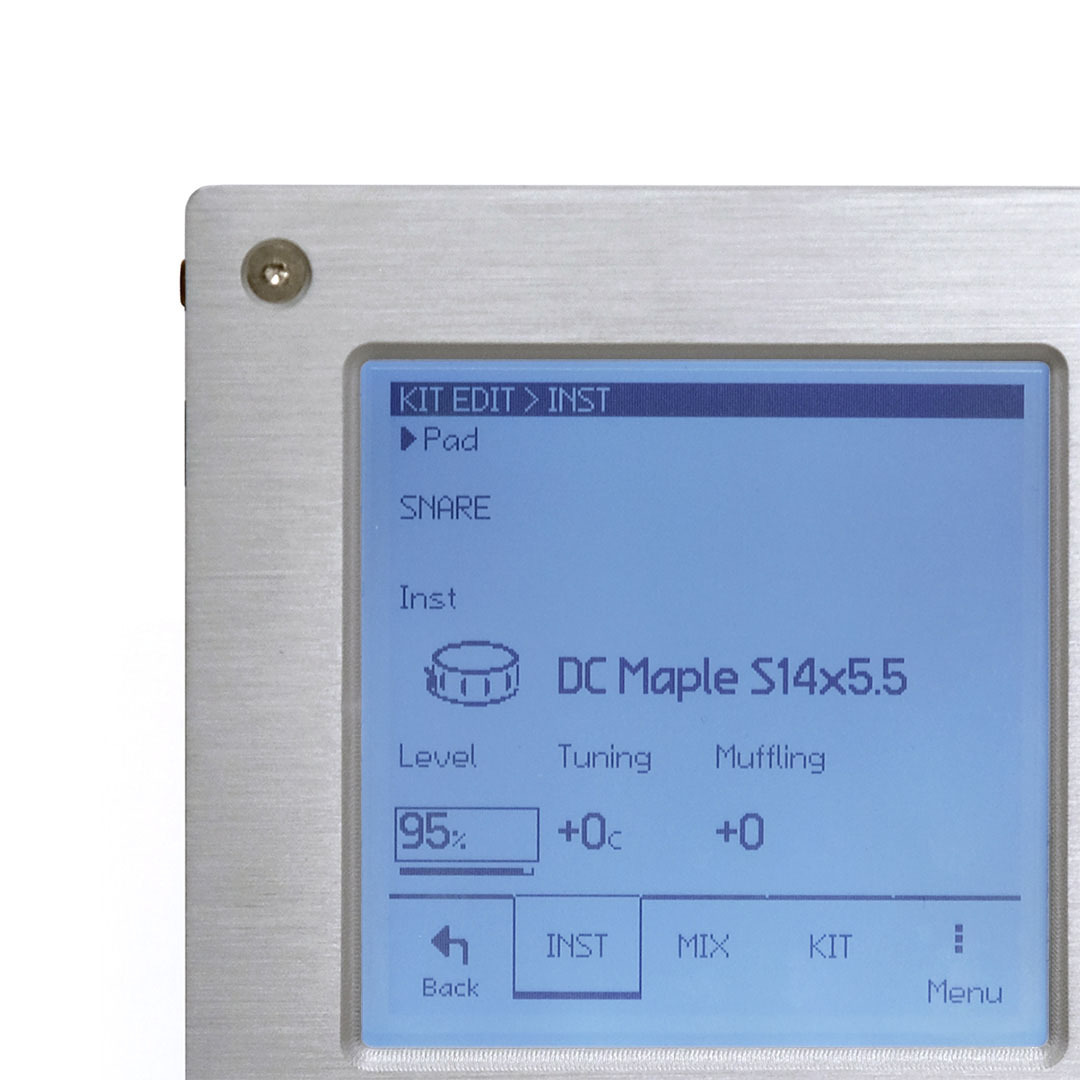

Edit Parameters
Level, Pan, Tuning, Muffling (for each pad)
2-Band EQ (for each pad)
Ambience Effect (8 types)
Pad Layer
Dimensions
106 (W) x 172 (D) x 47 (H) mm
700 g
Excluding protrusions
Power
DC 12 V, 500 mA (Nominal) / 800 mA (Max)
Hardware
Tom Holder
1x Tom holder arm
Geared L-rod tilter
Knurled carbon steel rod
L-rod diameter: φ11.5 mm (7/16")
Tube diameter: φ22.2 mm (7/8")
Height adjustment range: 700 -- 900 mm
Splash Cymbal Arm
1x Z-rod short
1x Z-rod long
Sound Module Arm
1x Sound module arm
1x Smartphone tray
Snare Drum Stand
(Optional) EFD-SS5
For 12" to 14" diameter snare drums
Geared basket tilter
Double braced legs
Tube diameter: φ19.1 mm (3/4")
Height adjustment range: 500 -- 650 mm
Cymbal Stand
(Optional) EFD-CS5
Boom cymbal arm
Geared tilter
Cable holder
Middle tube diameter: φ19.1 mm (3/4")
Boom length: 400 mm
Height adjustment range: 800 -- 1,500 mm
Drum Kit Placement
Placement Size
Approx. 140 (W) x 90 (D) cm
Approx. 4.6 (W) x 3.0 (D) feet
Without drum throne
Package
Accessories
Brake-out cable: EFD-MULTI-A5
Brake-out cable: EFD-MULTI-B
5x Trigger cable 3.0 m: EFD-TRS-LL3
Cable ties
Quickstart guide
Snare drum stand and cymbal stand are optional.
