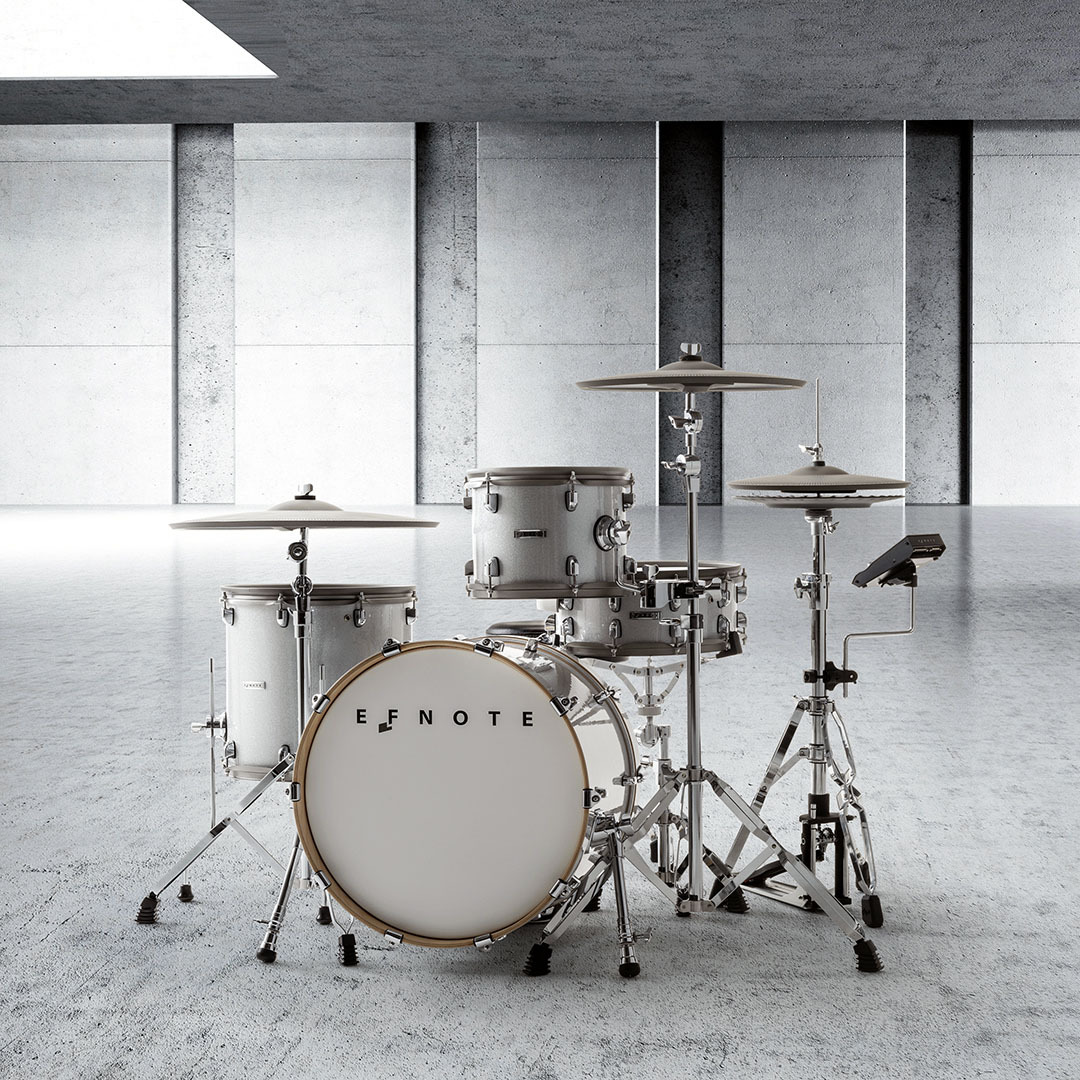

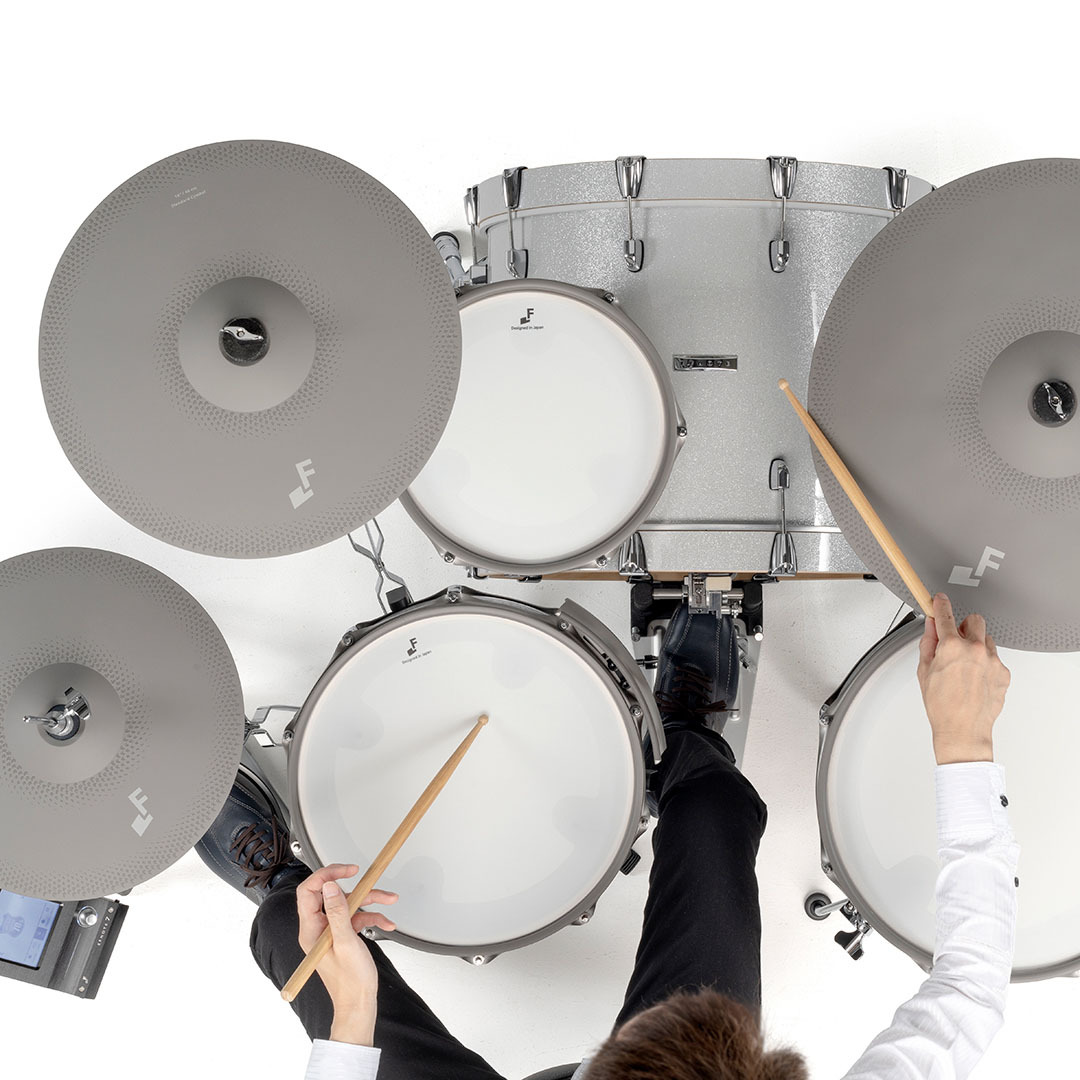

EFNOTE 7 : The Power of Full Scale
Pure Drums, Pure Sounds
Brand new playing experience with full scale shells/cymbals
Reproduces raw drum sounds and ambient perfectly
360° flat sensing with multi-sensor technology
Player centric design
Authentic Presence
Proves your musicality to the audience on stage
Pure white sparkle finish that shines in the spotlight
Realistic swaying of full-sized cymbals that visualize its sound
Expandability for Customized Setup
Basic setup for flexible expansion based on your music style
Visit the Customize page for customized setup examples
Drums & Cymbals
9-Sensor Snare Drum
14 x 5.5", 10 lugs, birch wood shell, 2ply mesh drum head
Multi-sensor for hotspotless and high-resolution sounding
High head tension tuning available
Wide and adjustable side-rim
Independent Side-Rim
Easy, intuitive and reliable
No switch operation required
Elegant arc design

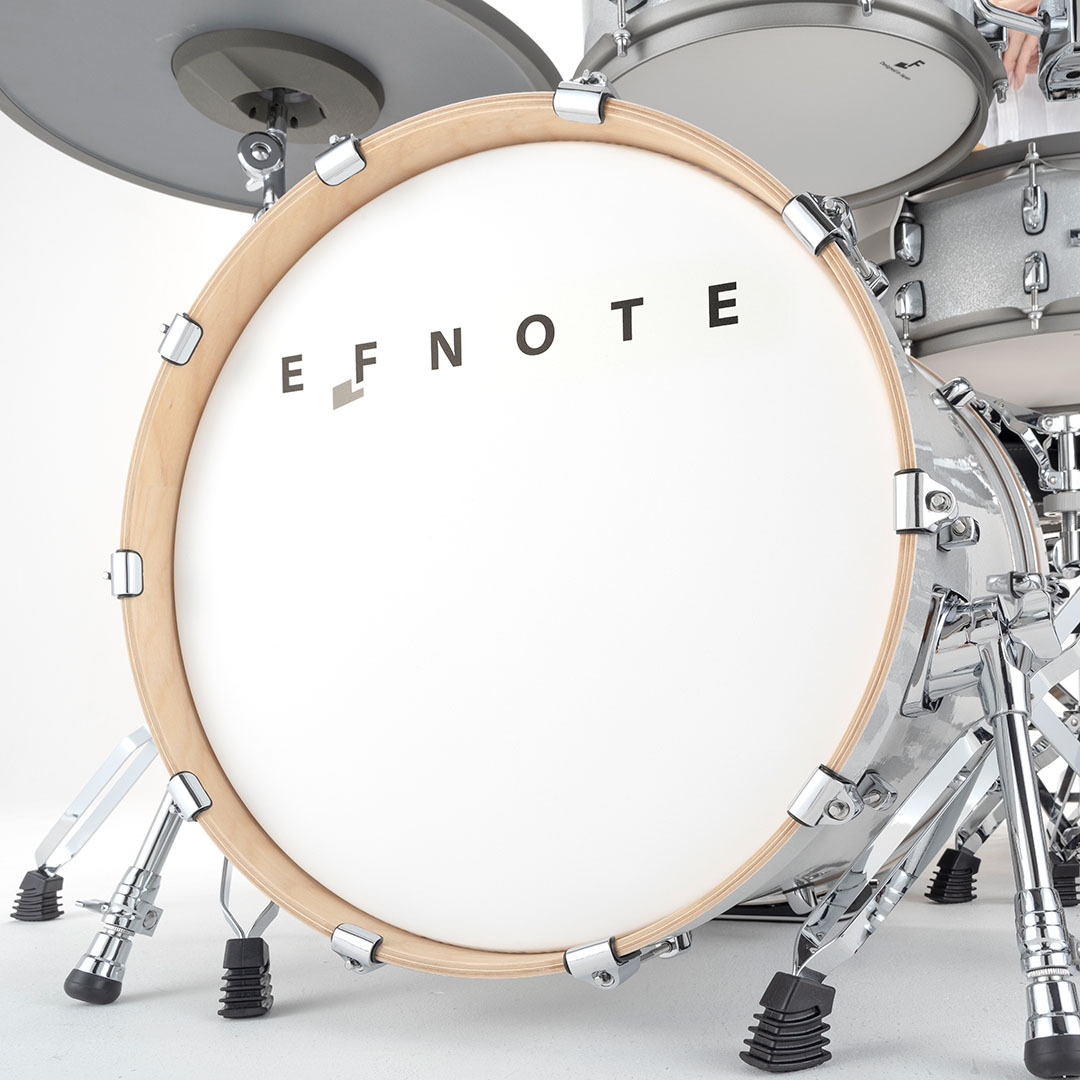

20" Kick, Unwavering Confidence
20 x 15", 10 lugs, birch wood shell, 2ply mesh drum head
Props the whole set at the center of stage
Stable multi sensing for single/double beater(s)

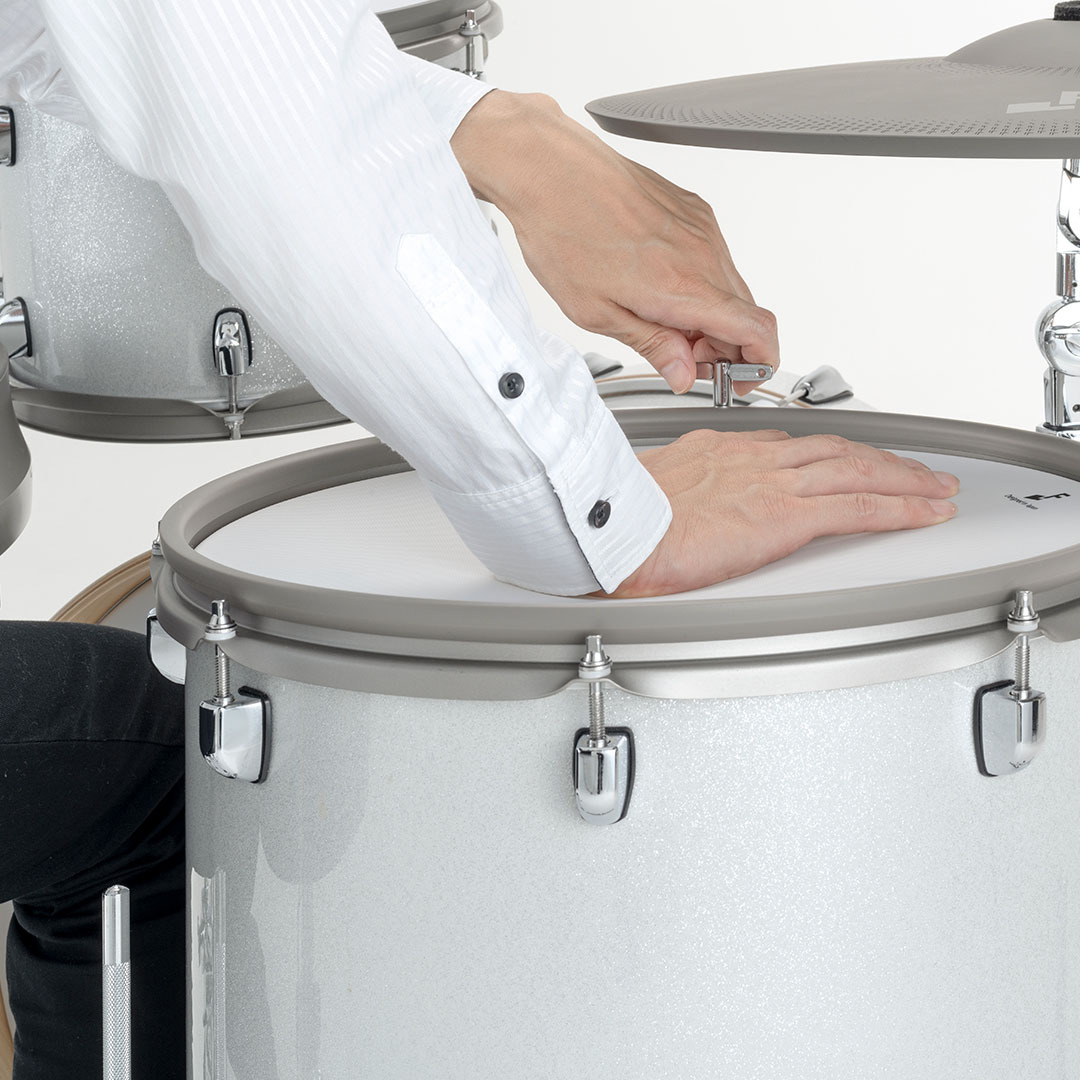

15" Floor Tom with Realistic Touch
15 x 15", 8 lugs, birch wood shell, 2ply mesh drum head
Multi-sensor for hotspotless and high-resolution sounding
Low-rebound 2ply mesh drum head
Low head tension tuning available

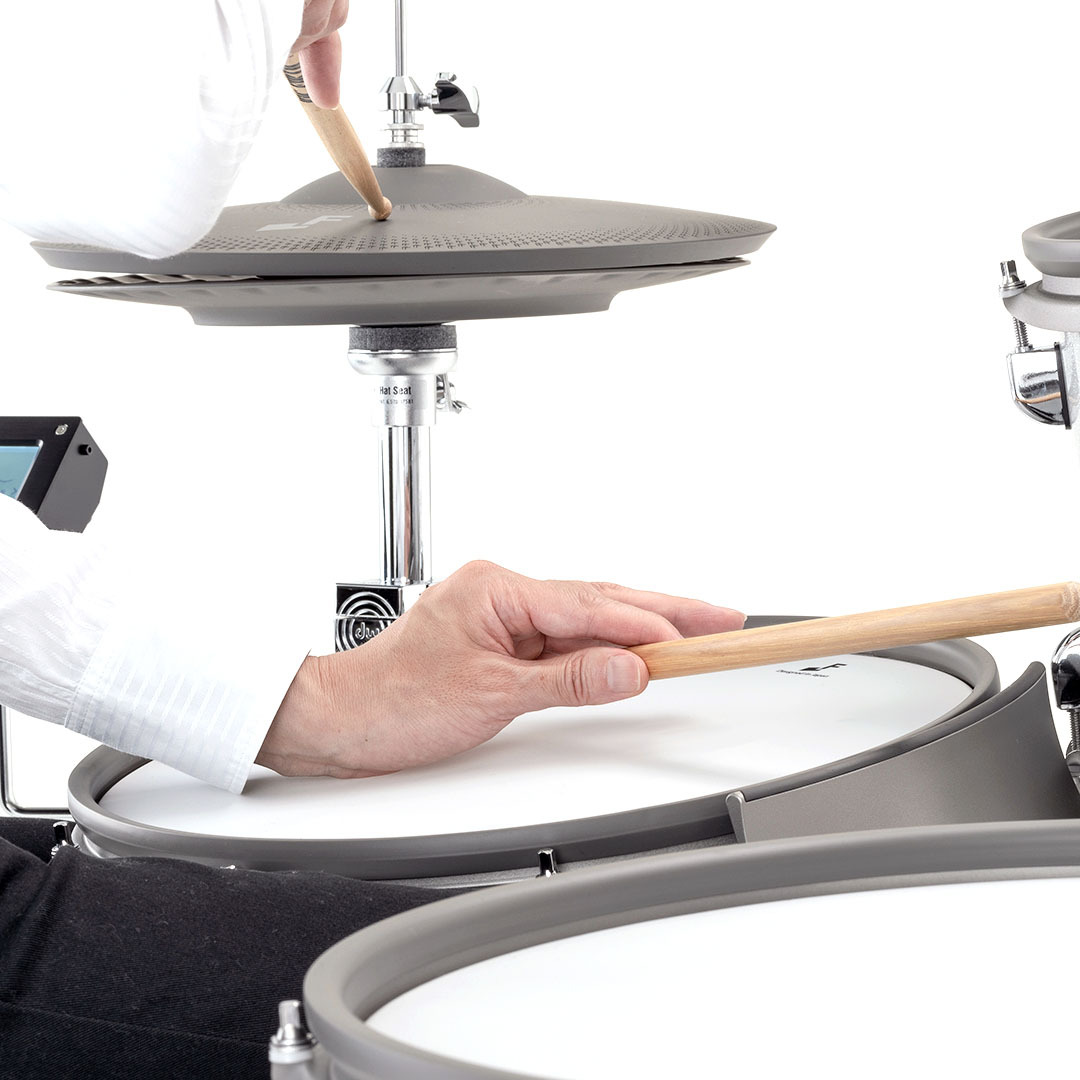

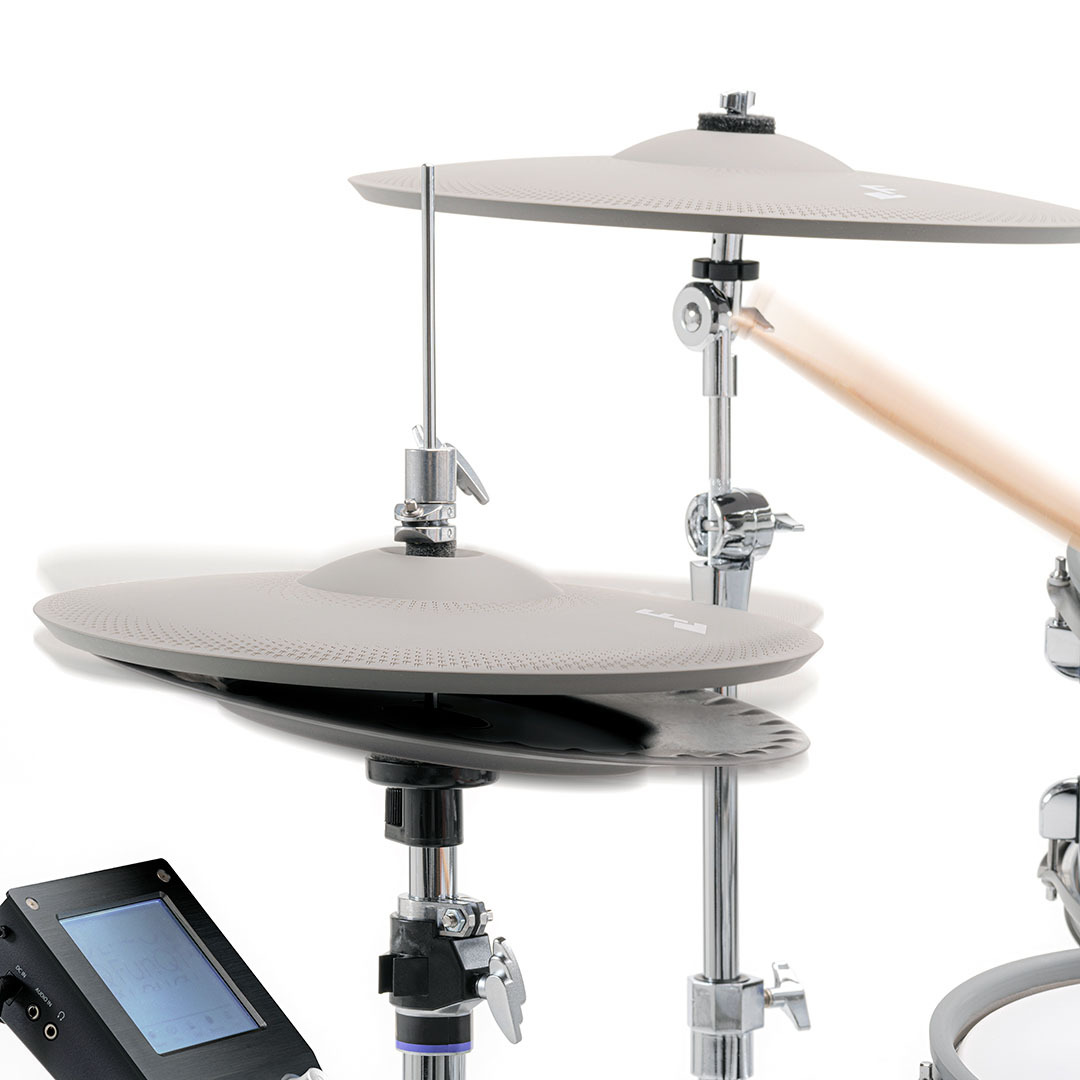

Finest Hi-Hat Cymbals
14" top/bottom cymbals
World's first multi-optical sensing to capture the motions in 3D
Tru-Motion™ technology for expressiveness leap
360° free-swinging top/bottom cymbal design

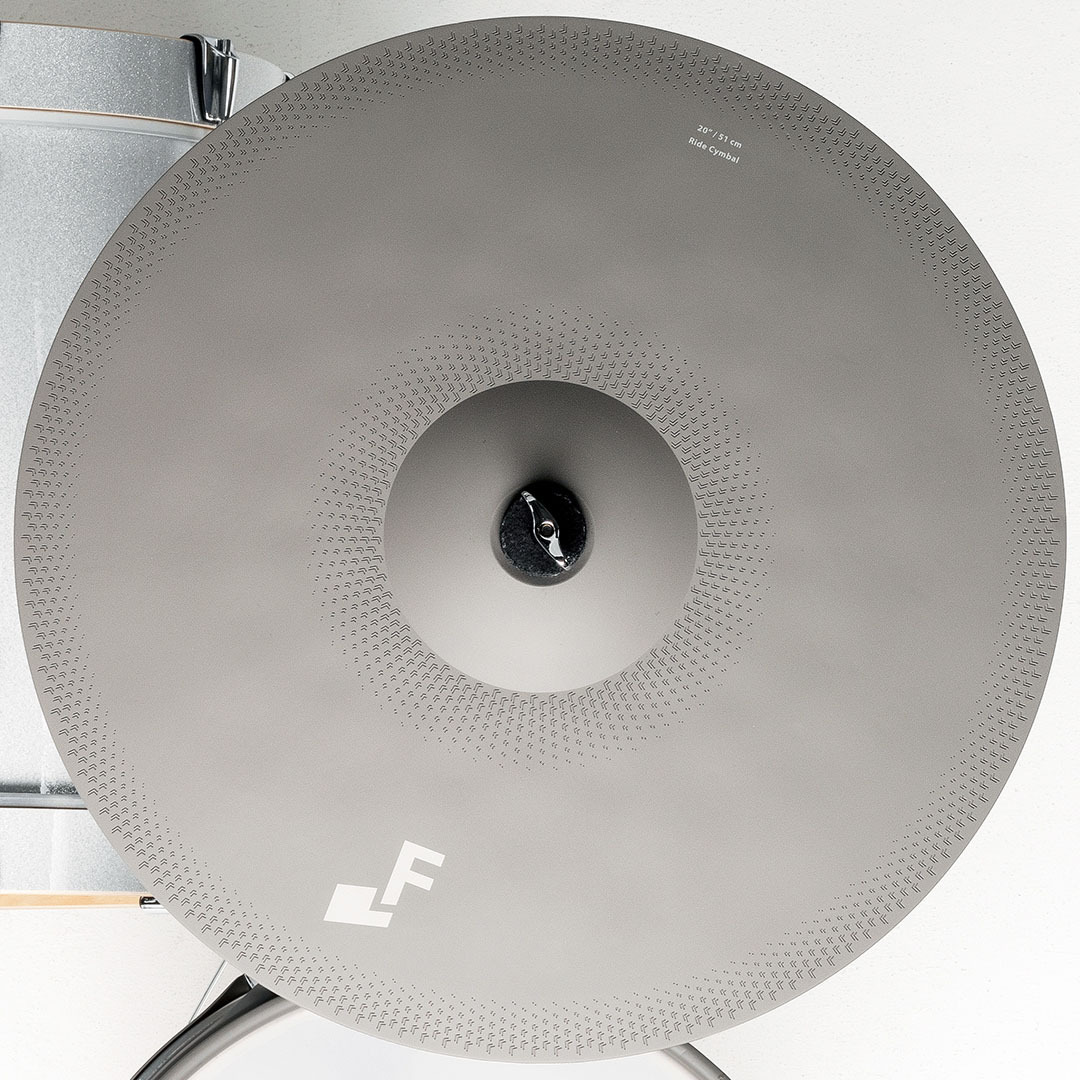

20" Ride Is Here!
The 20" diameter provides slow wobbling of edge and the quick response of bow/cup
Multi-sensored 360° play/choke area
360° free-swinging design
Responsive thin edge
Hammered texture surface

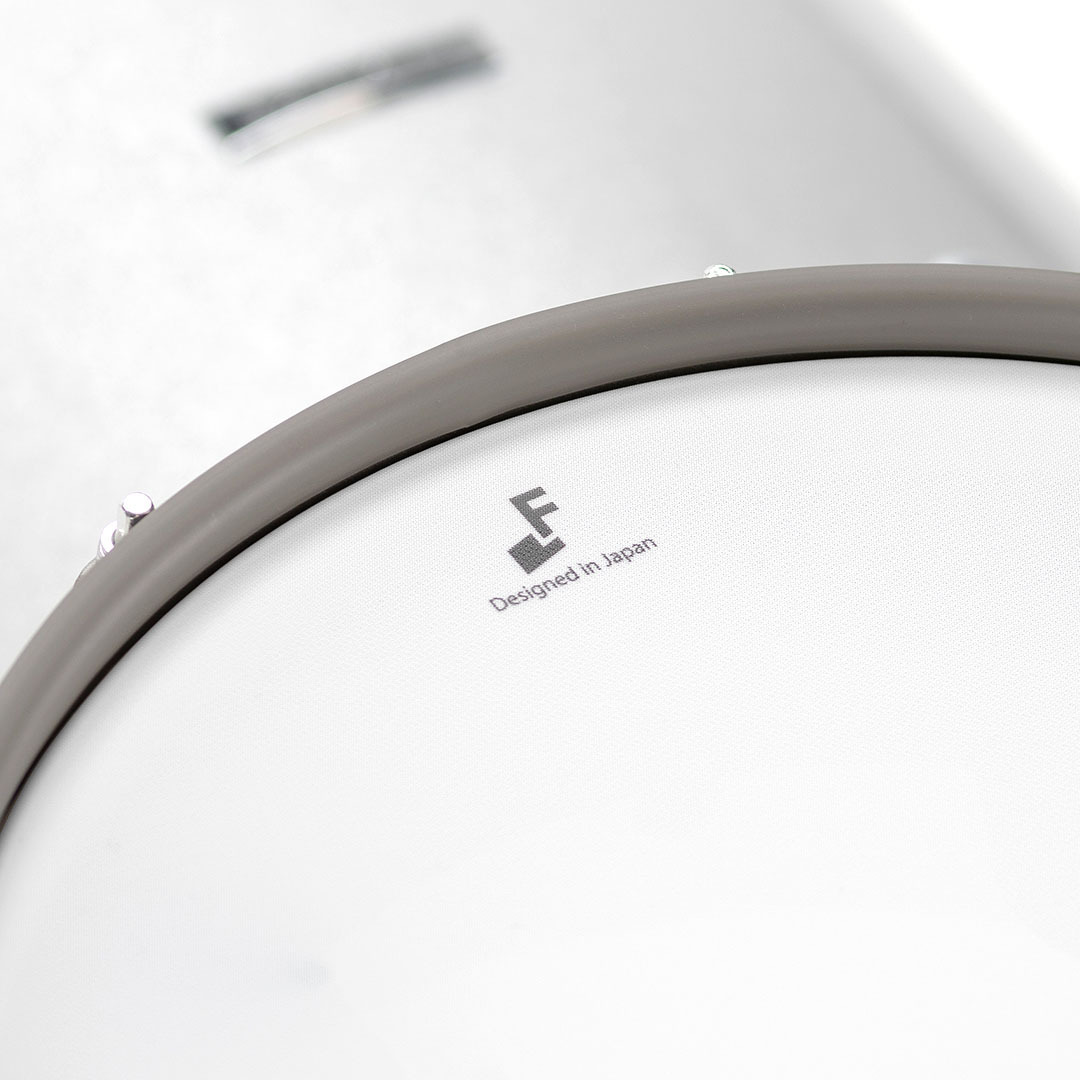

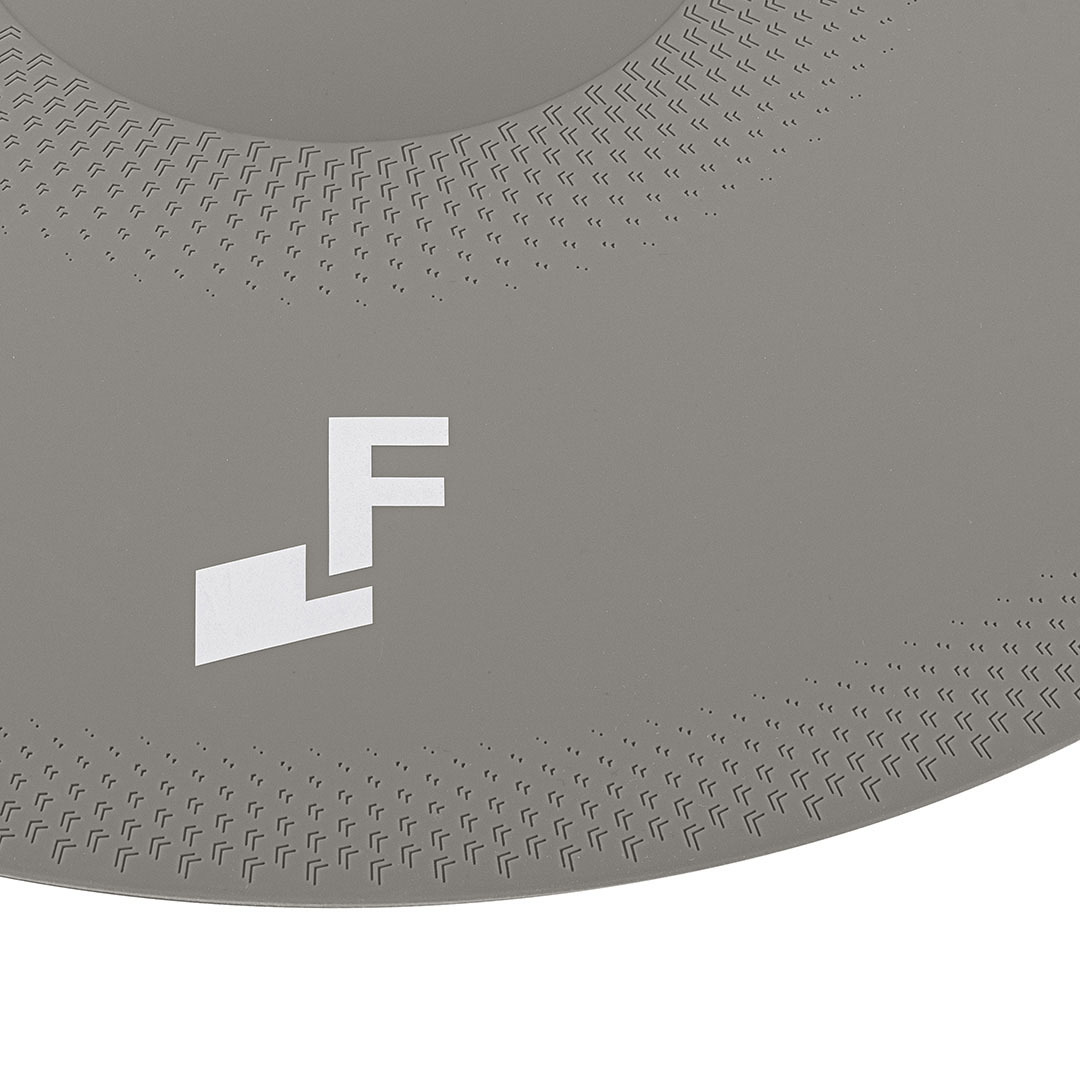

Beautiful Cymbal Surface
Elegant warm-gray surface with fine engravings
Clean silicone rubber surface that is resistant to drumstick marks
Sound Module

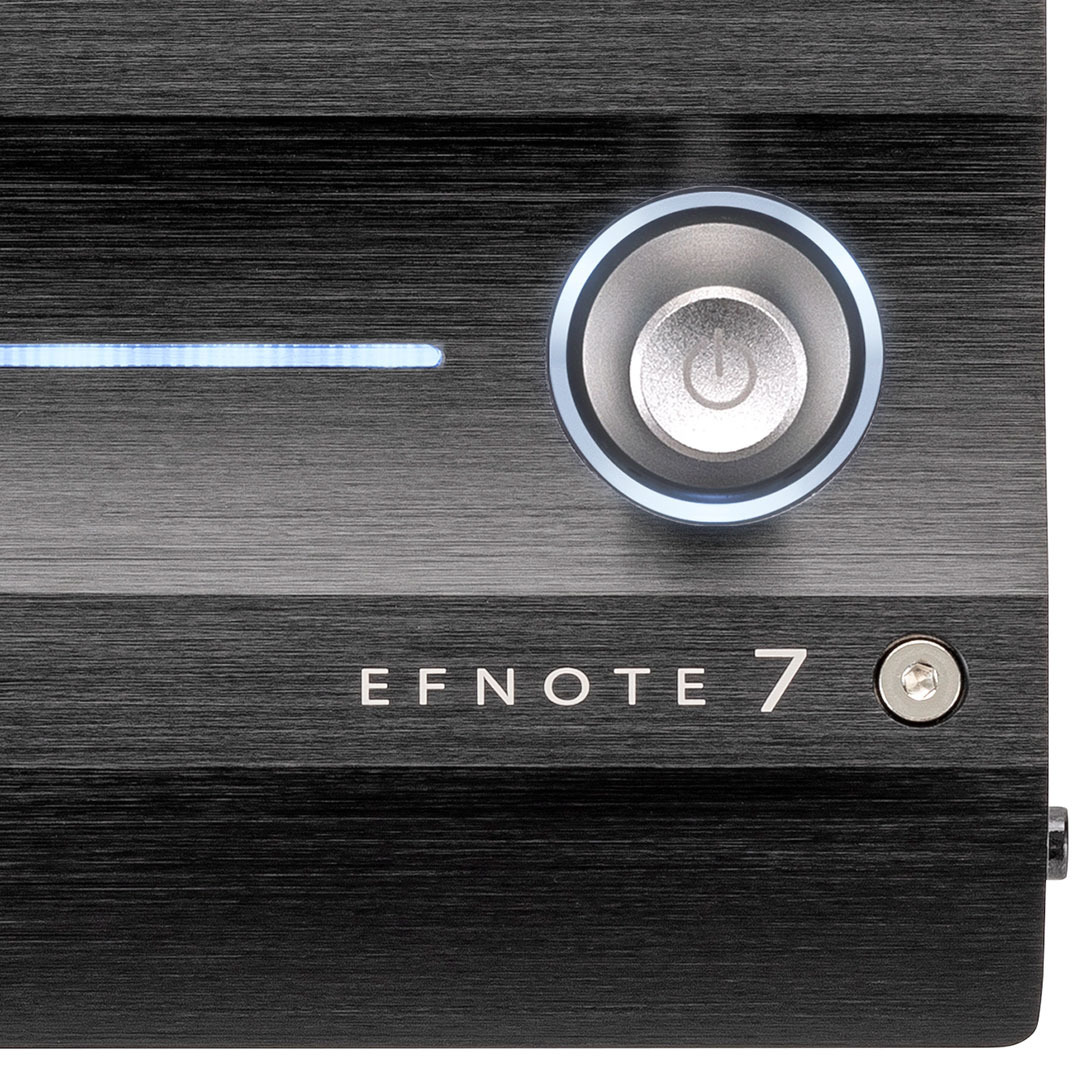

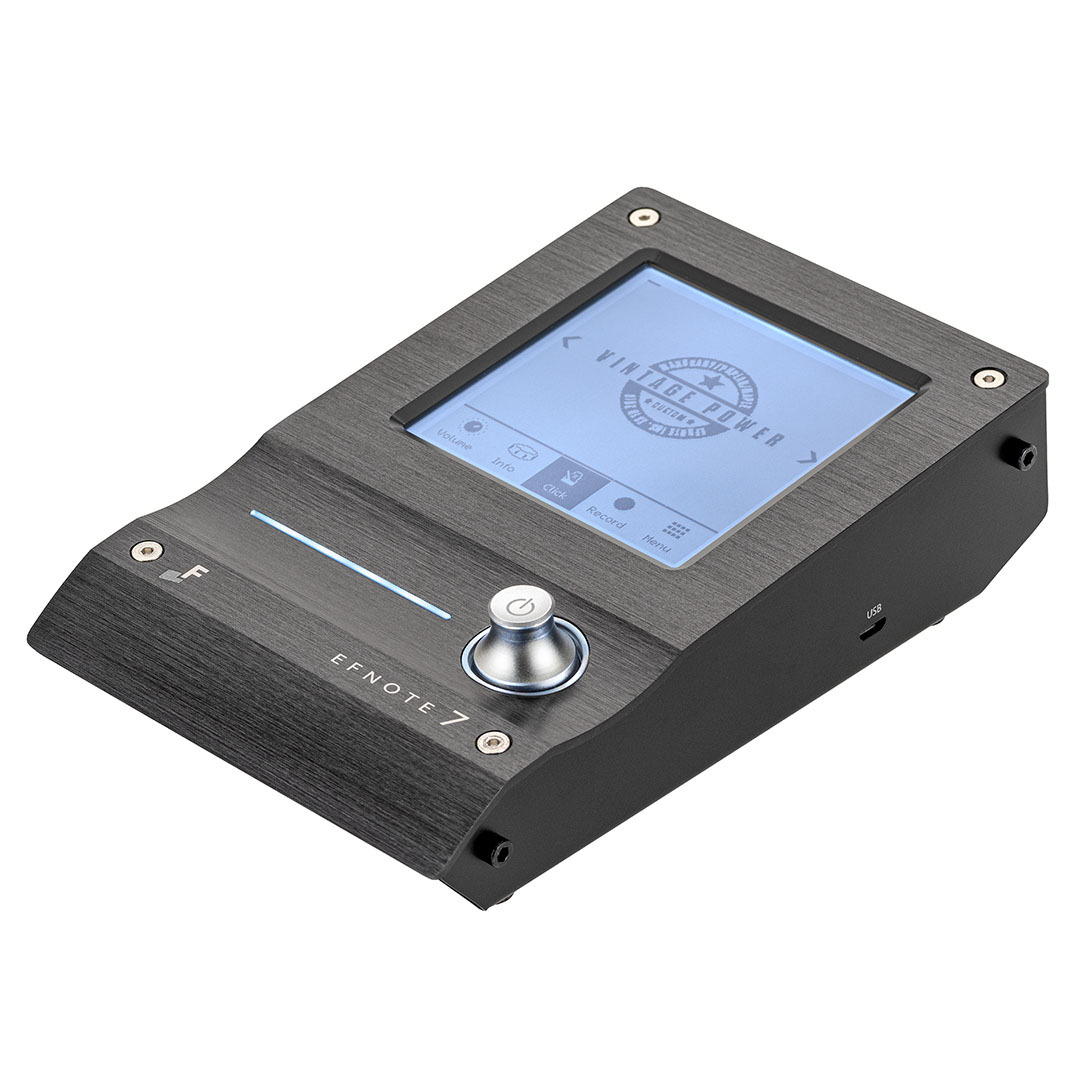

Ultra-Compact Sound Module
Ultra-small form factor with uncompromised features
Metal chassis and aluminum finish
High quality DAC and audio circuit
High power headphone amplifier
Touch screen intuitive user interface
ELISE™ Sensing Processor
Capturing drummer's intentions from each stroke
Low latency, wide dynamic-range, consistent and stable sensing
Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads
For Training
Multi-function metronome with beat LED indicator
Built-in metronome speaker for daily training without headphones
On-board drum recording function (15 tracks)
Stroke Analyzer
Rhythm Box feature provides over 90 basic drum beats

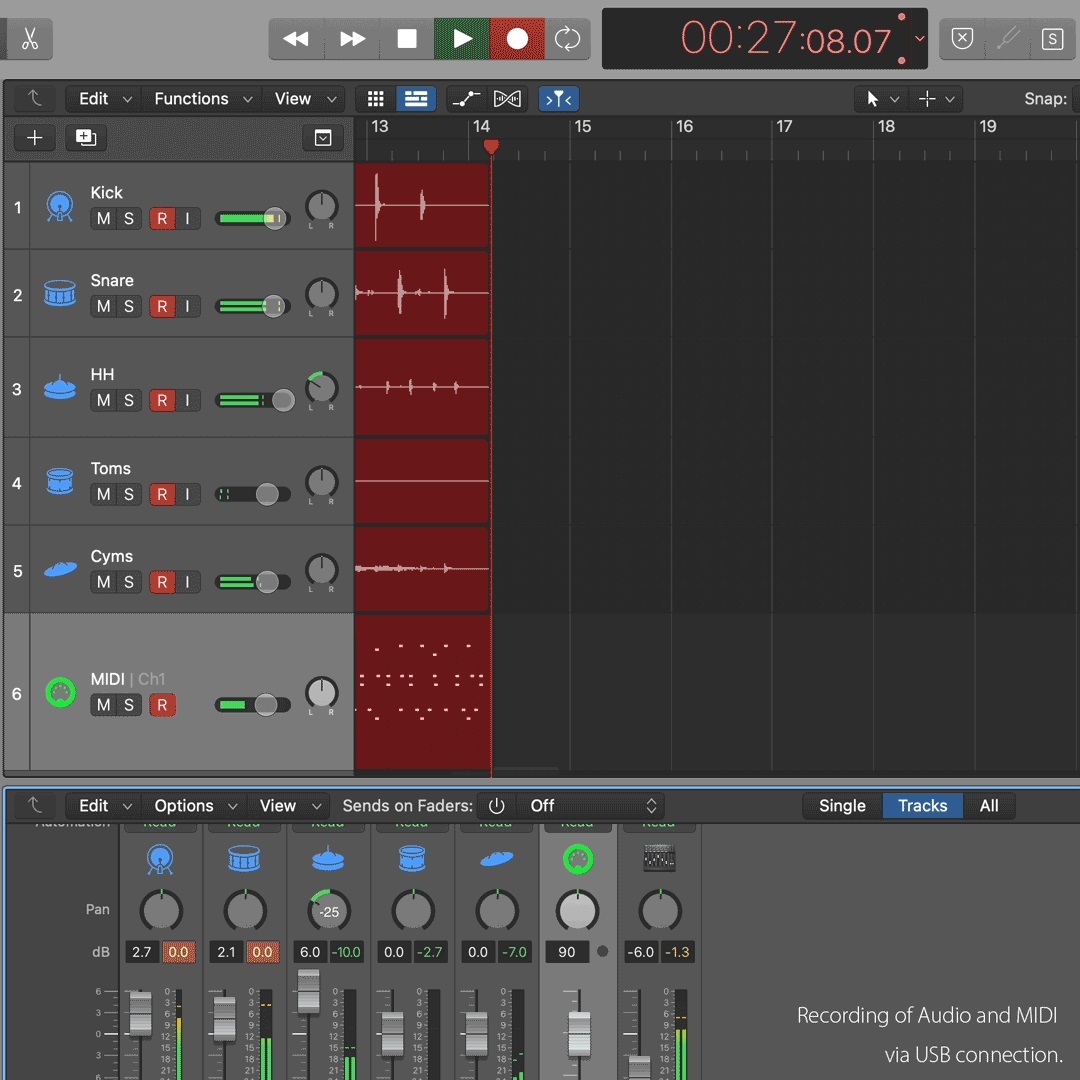

For Recording
USB 8-ch individual audio outputs with Mac / Windows (ASIO)
USB 2-ch audio inputs for playback
Analog 4-ch audio outputs
USB MIDI in/out with individual MIDI channels
MIDI output (5-pin DIN)

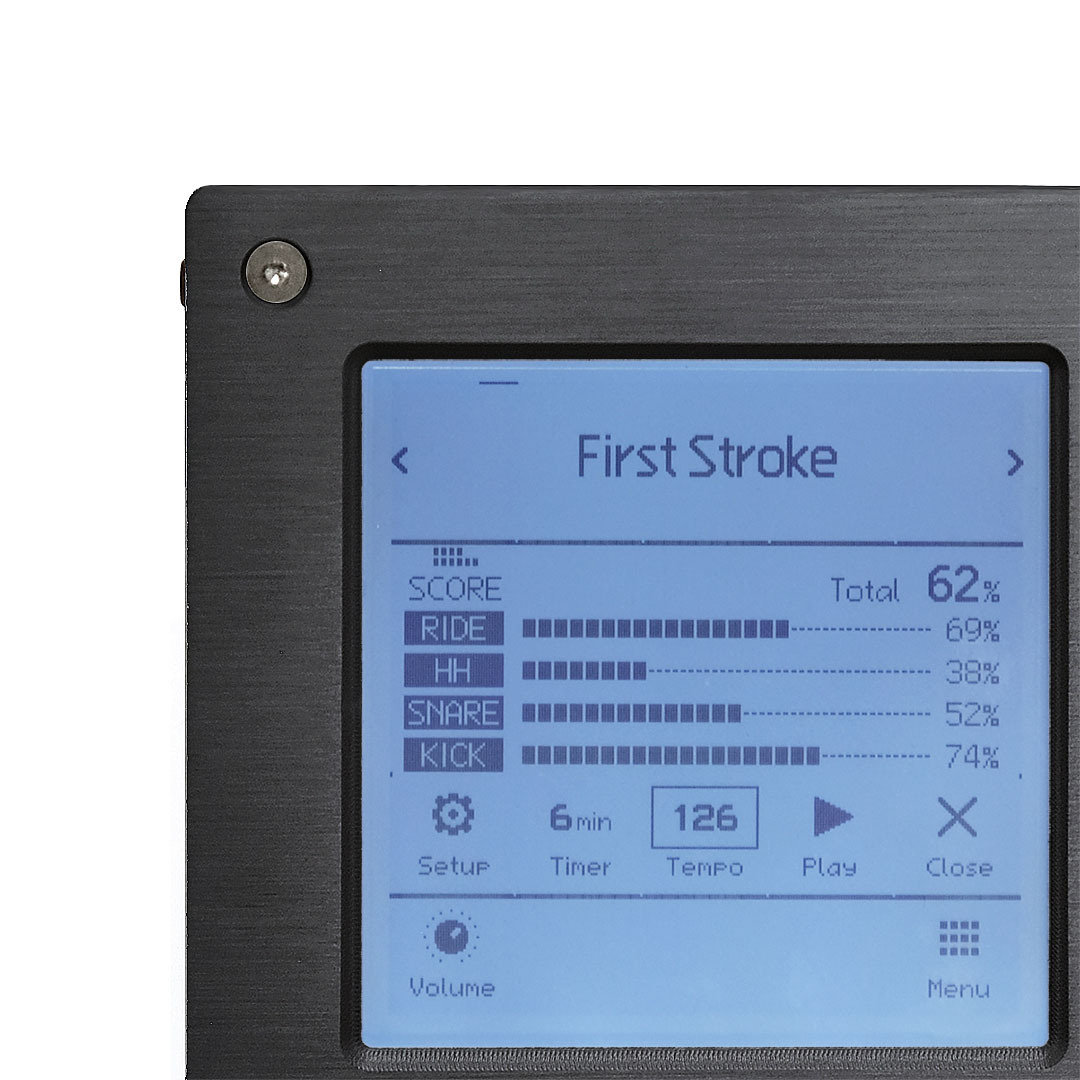

Stroke Analyzer
"Stroke Scope" displays your strike points on time-line
"Accuracy Score" estimates your strike accuracy

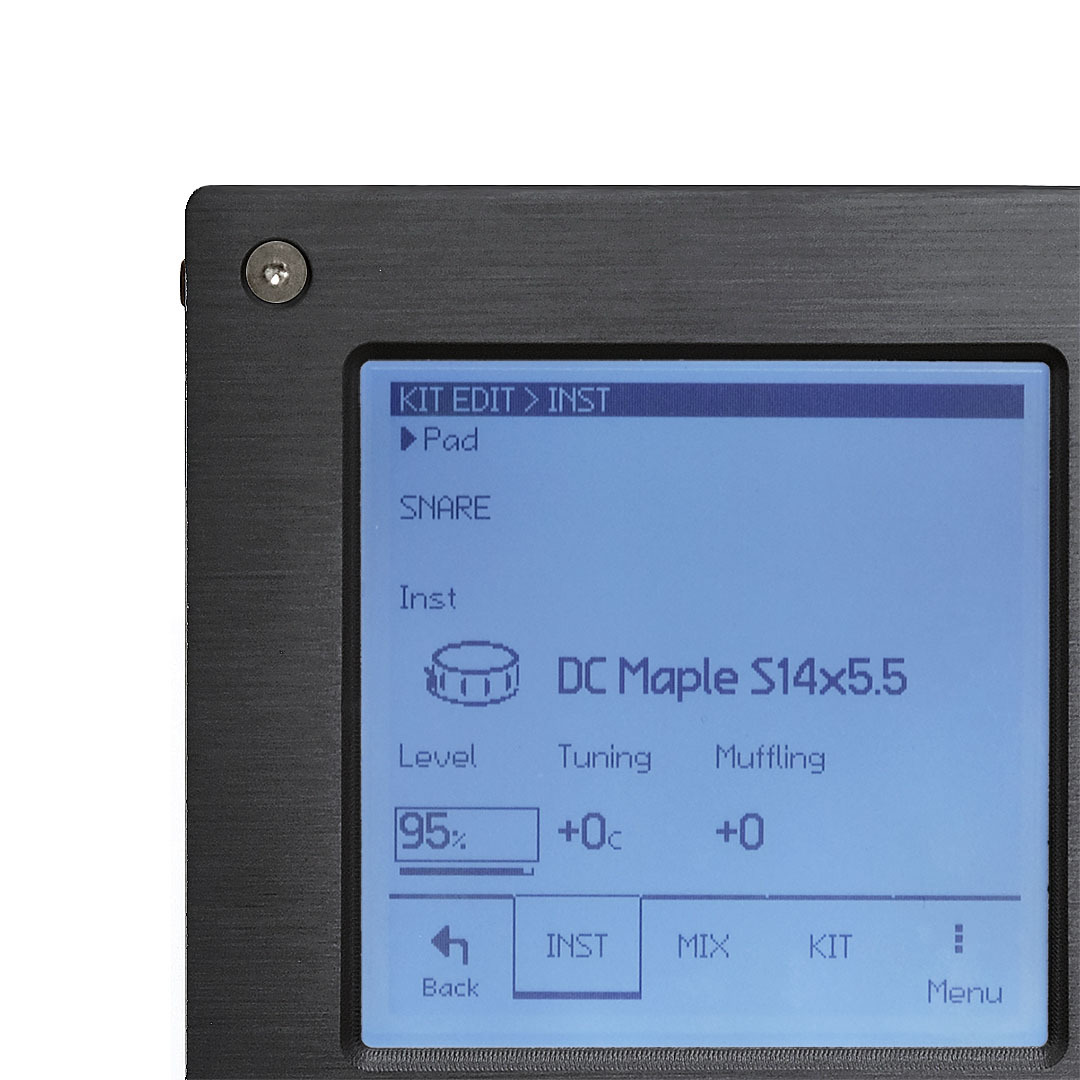

Sound Edit
Tuning, Muffling, 2-band EQs for each pad
Pad layer function can overlay two sounds
User Inst Library enables you to store 128 customized instruments
On-board reverb
Dedicated level control screen

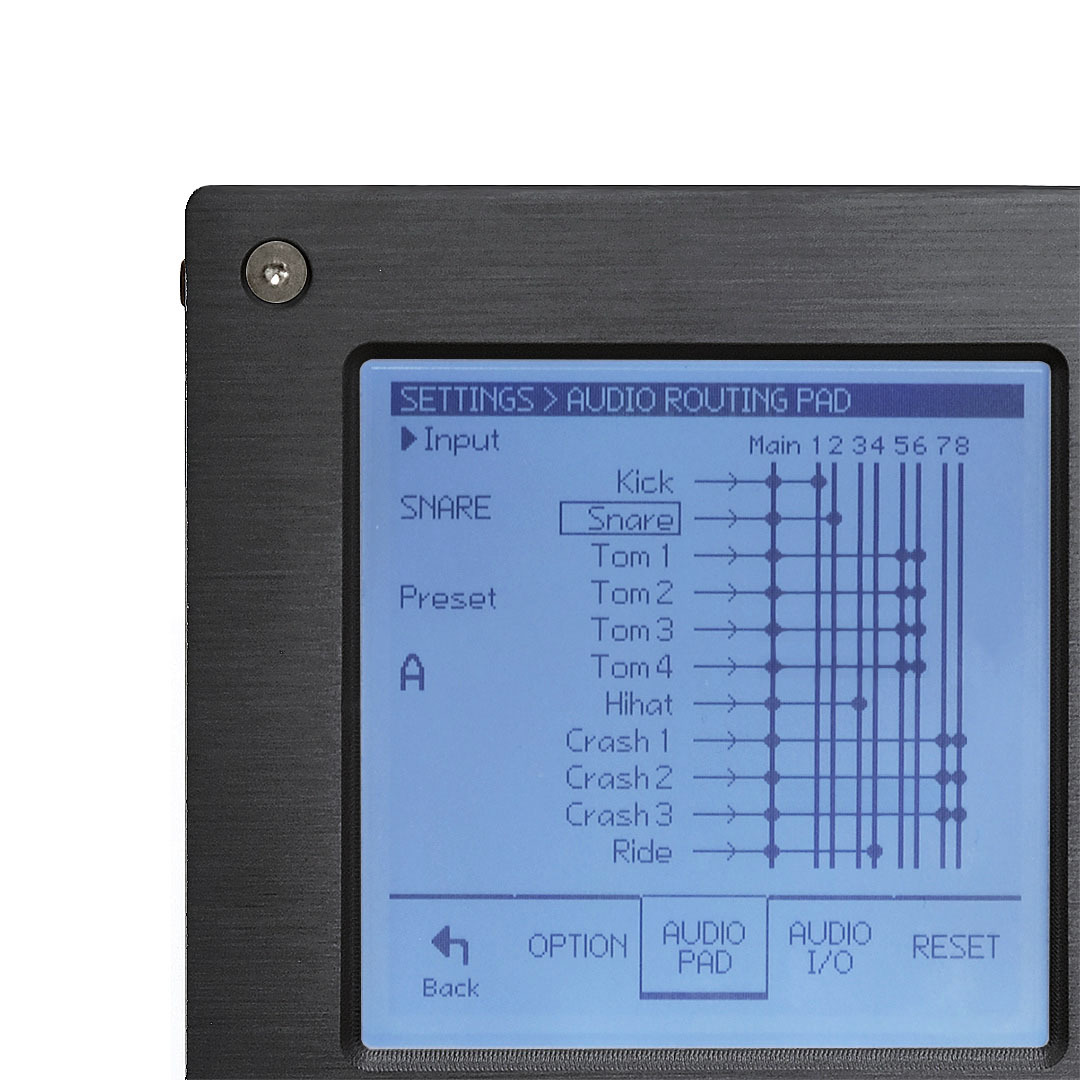

Flexible Audio Routing
10-ch output buses
Flexible output routing for each pad
Output assignable click
Output: 4-ch analog / 8-ch USB
Input: Analog / Bluetooth / 2-ch USB
Bluetooth®
Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
Bluetooth MIDI

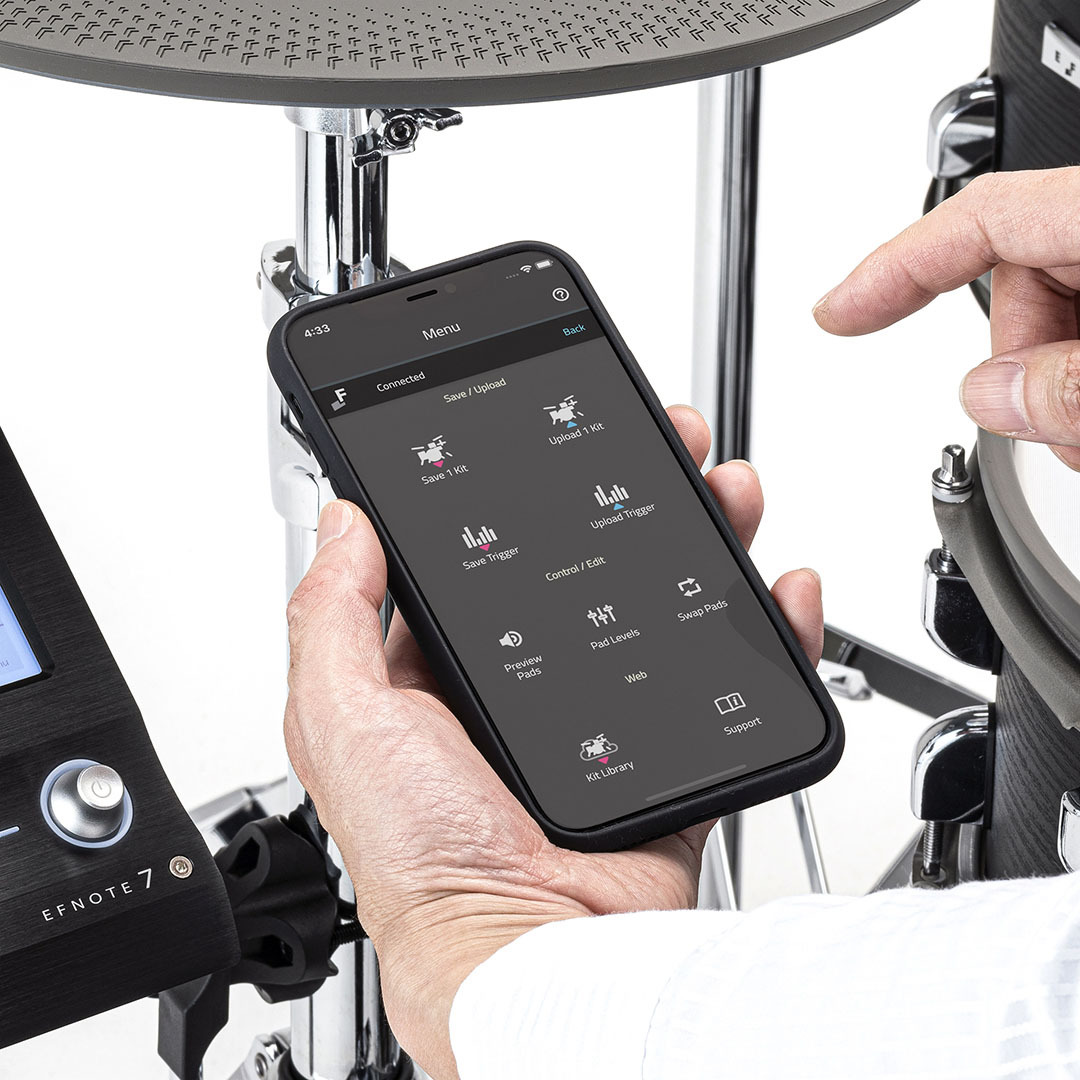

EFNOTE Tools App for control remotely
Specifications
Drum / Cymbal Pads
Kick EFD-K2015
Size: 20 x 15"
Finish: White sparkle
Zone: Head
Sensor: Multi
Head: Double-layered mesh with beater patch
Connector: Head (TRS Phones)
Features: Wood hoop
Snare EFD-S1455
Size: 14 x 5.5"
Finish: White sparkle
Zone: Head / Rim / Side-Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim, Side-Rim (2x TRS Phones)
Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1180
Size: 11 x 8"
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Colored hoop rubber
Floor Tom EFD-T1515
Size: 15 x 15"
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
Size: 14" (Top/Bottom)
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke) / Optical
Connector: 6-pin
Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.
EFNOTE 7 sound module does not support hi-hat cup zone.
Crash EFD-C16
Size: 16"
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface
Ride EFD-C20
Size: 20"
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Hammered texture surface with fine engravings
Sound Module: EFD-7
Trigger Interface
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
Audio / MIDI Interface
Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
Audio Input: Stereo Mini-Phone (+2dBu Max)
USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
Bluetooth Audio Input
Bluetooth MIDI In/Out
MIDI Out: 5-pin DIN
Drum Kits / Instruments
Preset Drum Kits: 20 (Editable)
User Drum Kits: 80
Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
User Inst Library: 128 (Can be stored customized instruments)
Edit Parameters
Level, Pan, Tuning, Muffling (for each pad)
2-Band EQ (for each pad)
Ambience Effect (8 types)
Pad Layer
Dimensions
106 (W) x 172 (D) x 47 (H) mm
700 g
Excluding protrusions
Power
DC 12 V, 500 mA (Nominal) / 800 mA (Max)
Hardware
Sound Module Arm
1x Sound module arm
1x Smartphone tray
Snare Drum Stand
(Optional) EFD-SS5
For 12" to 14" diameter snare drums
Geared basket tilter
Double braced legs
Tube diameter: φ19.1 mm (3/4")
Height adjustment range: 500 -- 650 mm
Cymbal Stand
(Optional) EFD-CS5
Boom cymbal arm
Geared tilter
Cable holder
Middle tube diameter: φ19.1 mm (3/4")
Boom length: 400 mm
Height adjustment range: 800 -- 1,500 mm
Tom Mount
(Optional) EFD-TM5
Ball angle adjustment
Knurled carbon steel rod
L-rod diameter: φ10.0 mm (3/8")
Installable pipe diameter: φ19.1 mm (3/4") -- φ31.8 mm (5/4")

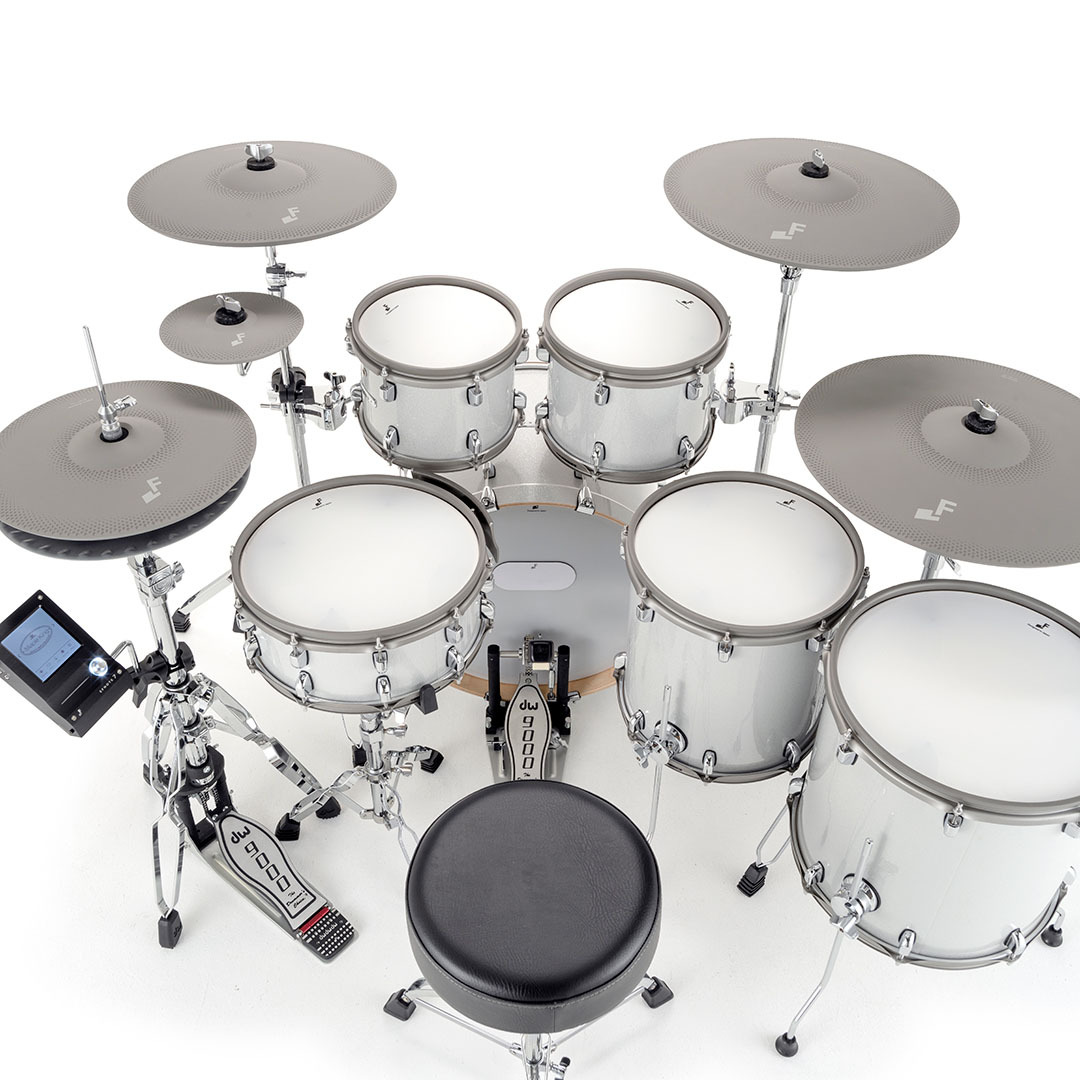

Drum Kit Placement
Placement Size
Approx. 145 (W) x 100 (D) cm
Approx. 4.8 (W) x 3.3 (D) feet
Without drum throne
Package
Accessories
Brake-out cable: EFD-MULTI-A5
Brake-out cable: EFD-MULTI-B
5x Trigger cable 3.0 m: EFD-TRS-LL3
Cable ties
Quickstart guide
