Features
8-Ch True-Stereo Digital Mixer w/ Bluetooth®*
130 dB Max SPL
2100 W Class-D Amplifier - Built-In DSP
1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
6 × 3” Full-Range Neo Transducers
12” High-Power Woofer

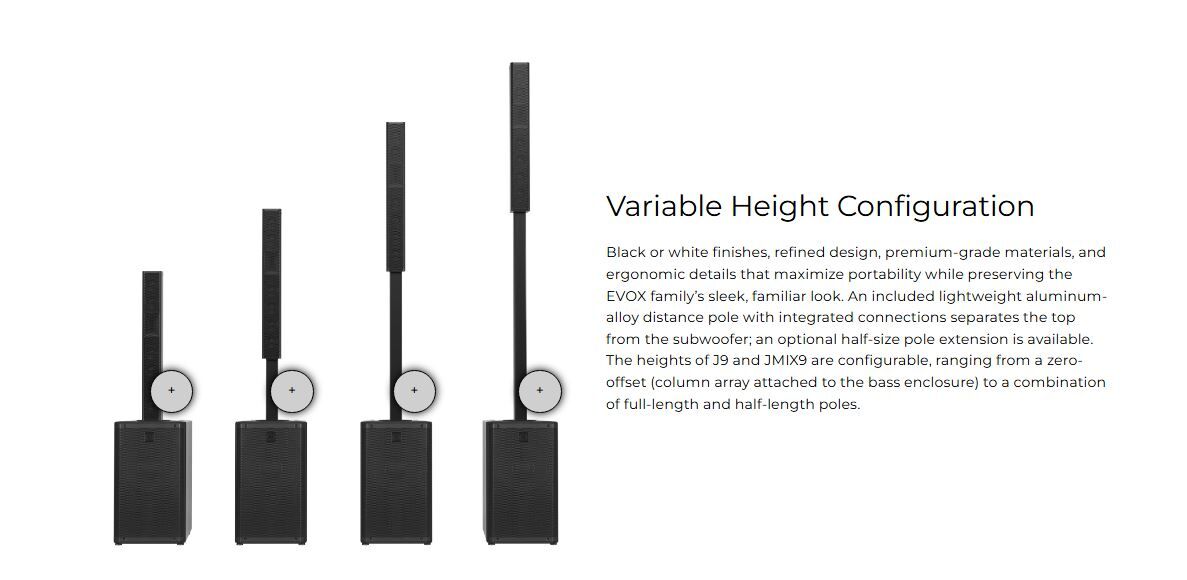

Sleek Composite Cabinet With Aluminum Stand Mount
Top Speaker Padded Carrying Bag Included
JMIX 9 Sub: 20,8 Kg - 45.86 lb / JMIX 9 Top: 5.8 kg - 12.78 lb
EVOX JMIX9 is a 3-way active portable column system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control via the JMixRemote app. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It features combo inputs, stereo/aux out, EQ, reverb, phantom power and output delay up to 135 ms. *Class 2 Bluetooth® device. Audio stream is guaranteed within a 10-meter range.
EVOX JMIX9
THE ALL-IN-ONE SOLUTION
ANY VENUE, ANY EVENT
Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It’s the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.
8-Channel Stereo Digital Mixer.
The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4” color touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.

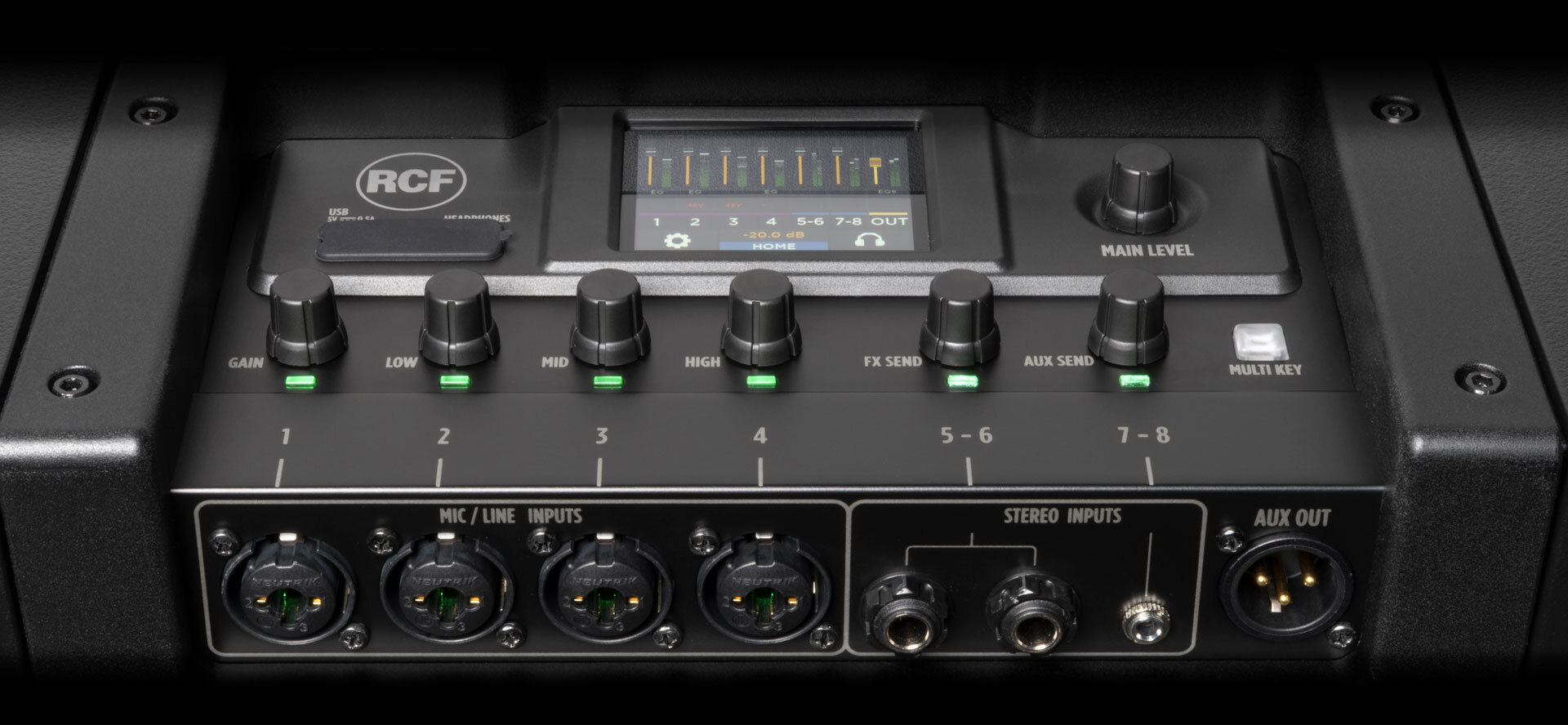

Studio-Quality Input Section
JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT® preamps, (each with individual phantom power) and digital gain control. Inputs 1–4 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 5–8 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth® connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.
Designed for Practical Use
Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9
High-pass filter and a 3-band EQ on each channel, ch 1-4 add a one-knob compression,
Flexible Audio Ducker, Stereo Reverb send
Main Output with stereo 8-band EQ
AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output
Quick Workflow

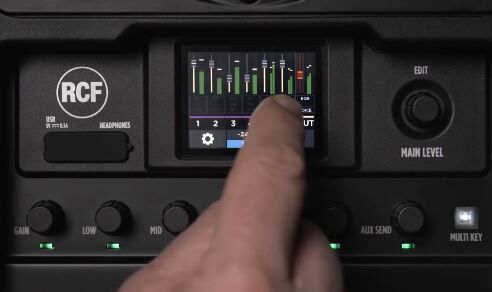

The 2.4” color touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.
AUX Send
Mixer View: Main Mix, FX send, AUX send
Gesture-based switching between views for fast access
Full stereo operation when paired with an EVOX J9
(stereo link-pairing)
Output EQ
Access: press MAIN LEVEL encoder
8-band stereo EQ on Main Mix
4 encoders mapped to EQ band parameters
Programmable MULTI KEY button
Path: SETTINGS > UTILITIES > MULTI FUN KEY
Assignable MUTE: All Outputs, AUX Out, FX Return
Input Edit Page
Access: press/click selected input encoder
Input channel edit: HPF, 3-band EQ, Compressor, Pan
Inputs 1–4: MIC/LINE selection, Gain, per-channel +48 V
6-encoders row reassigned per function
WIRELESS CONTROL

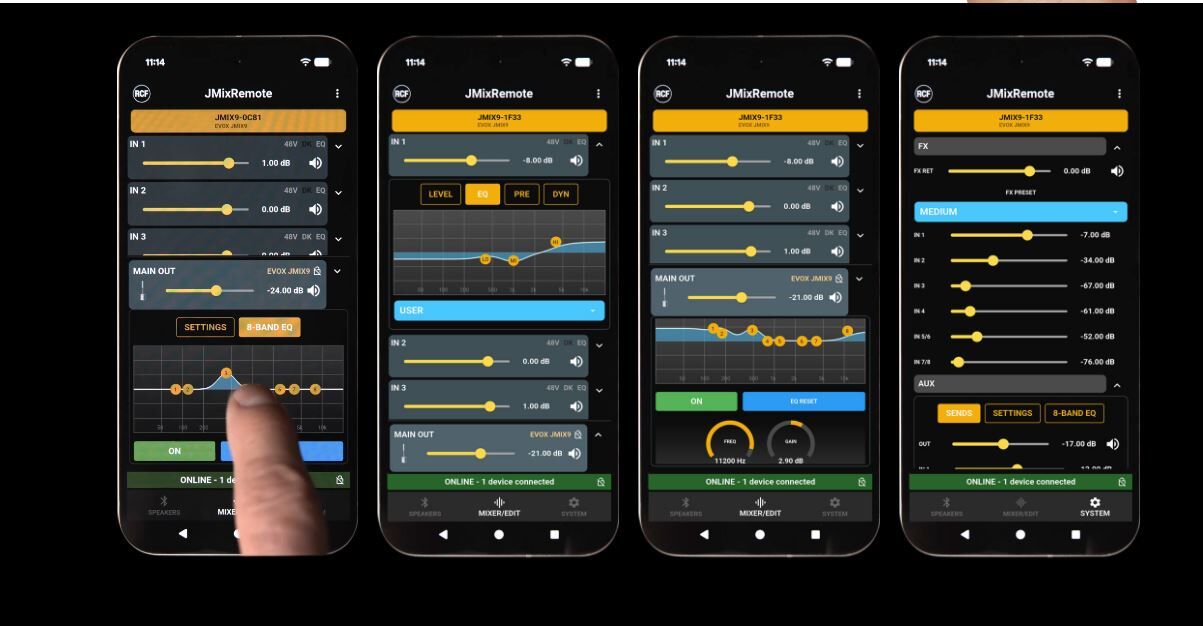

JMIXRemote App
The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).

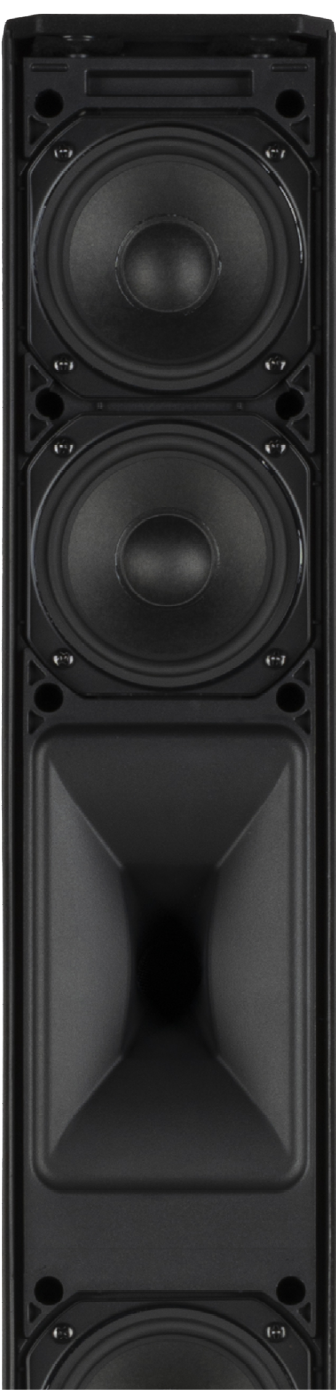

True 3-Way Design

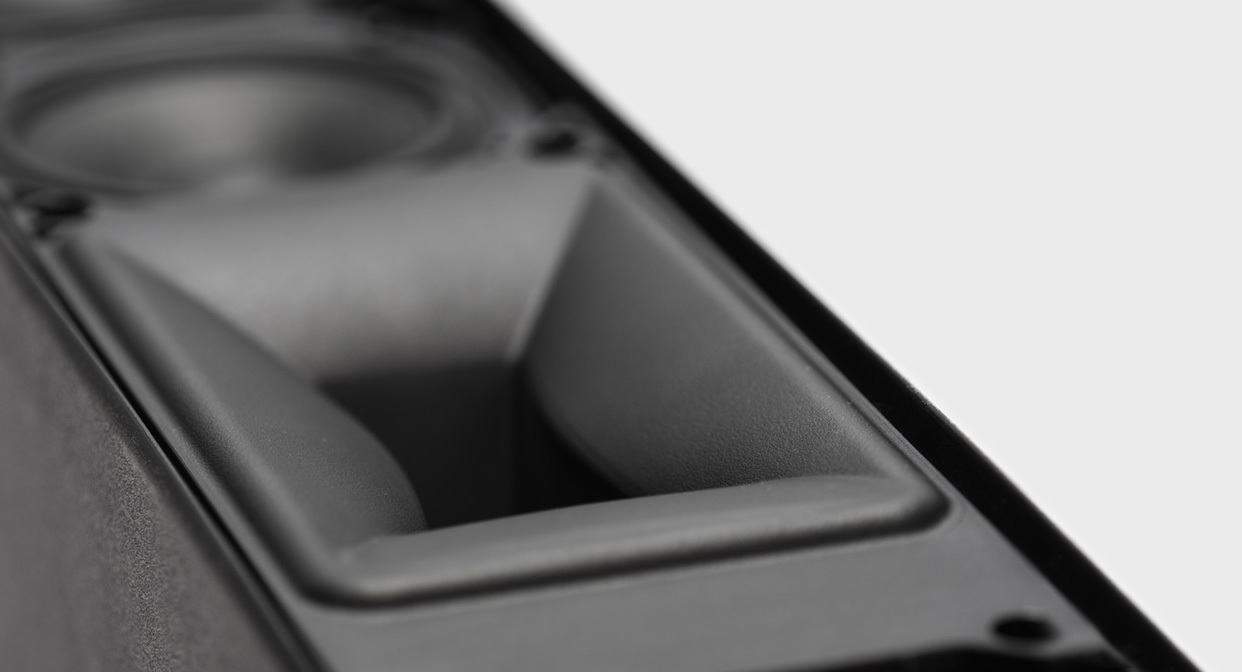

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.
The forward radiation of the array of 6x3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.
2100 W
Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX JMIX9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the JMIX9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. JMIX9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

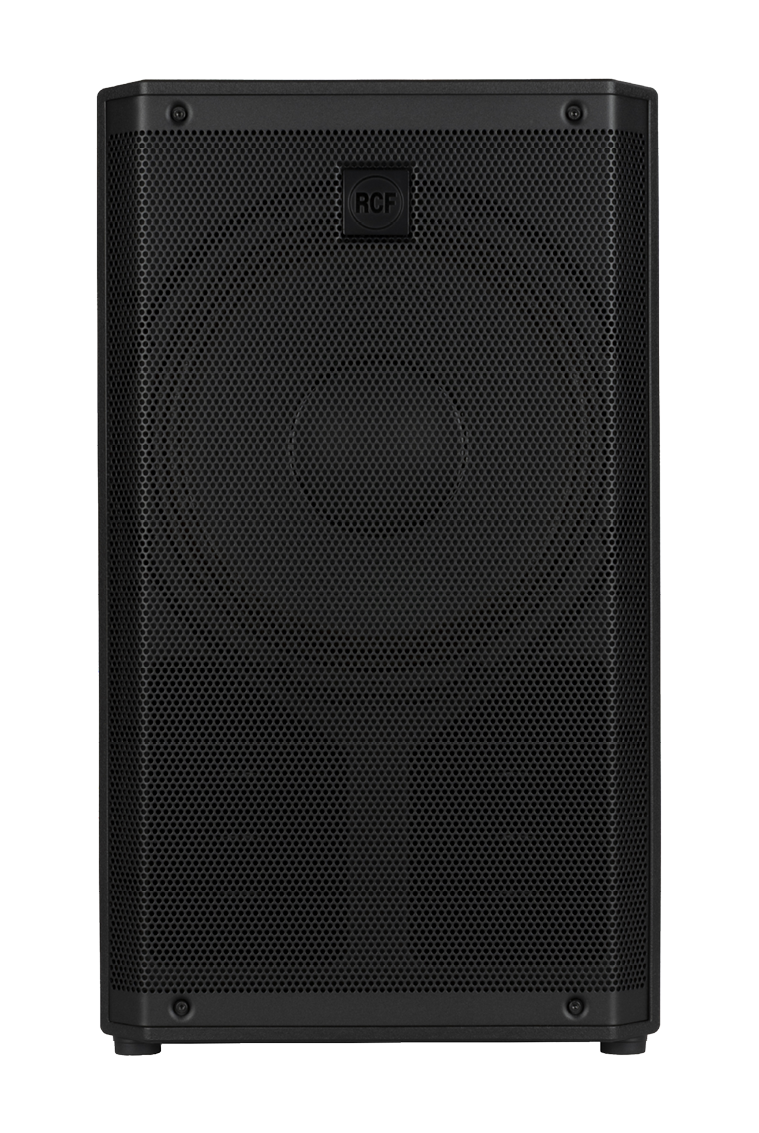

12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Acoustical specifications
Frequency Response
40 Hz - 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
120°
Vertical coverage angle
40°
Transducers
Compression Driver
1 x 0.75'' neo, 1.75'' v.c
Fullrange
6 x 3.0'' neo, 1.0'' v.c
Woofer
1 x 12'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
200 Hz/1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Digital mixer controlled by touch screen and encoders
Power section
Total Power
2100 W Peak
High frequencies
700 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
VDE
Electronic specifications
Frequency Response
20 Hz - 20 Hz
THD+N, 20dB gain, 0dBu out
0.003% A-Weighted
Processing
Processing Channels
8
Signal Processing
32 Bit
A/D-D/A conversion
24 Bit @ 48.0 kHz
Dynamic range
114
Inputs
Mic
4
Remote Controlled Storable Gain
Yes
Gain Range
0 dB - 36 dB
Input Noise Level
-114 dBu A-Weighted
Mic Inputs Impedance
3 kohm
Low Cut
20 Hz - 400 Hz
Phantom Power +48V
Yes
Mono Line
4
Gain Selection
0 dB - 36 dB
Line Input Impedance
10 kohm
A/D Dynamic range
120 dB
Stereo Line
2
Gain Selection
0 dB - 0 dB
Stereo Line Input Impedance (kOhm)
24 kohm
Outputs
Main MIX
1
FX Send
1
AUX Send
1
AUX Output
1
Phones
1
Outputs specifications
Main Out Impedance
150 ohm
Main Out Level
20 dBu
Aux Out Impedance (ohm)
150 ohm
Aux Out Level
20 dBu
Phones Out impedance (ohm)
100 ohm
Phones Out Level
20 dBm
D/A Dynamic Range
118 dB
Compressors
RCF Compressors
Compressors on MIC/LINE CH1 to CH4 Inputs
EQ
Input Channels EQ
1 Semi Parametric / 2 Shelving
Description
3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.
Auxiliary sends
AUX
1 PRE/POST
FX POST
1
Internal Effects
Send Effects
1
Mastering processors
Main OUT processors
1
Main OUT type
MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
Electrical specifications
Power supply
Internal
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Handles
1 Top
Pole mount/Cap
Quick-fit socket
Grille
Steel
Color
Black, White - RAL 9003
Size / Weight
Height
2080 mm / 81.89 inches
Width
350 mm / 13.78 inches
Depth
460 mm / 18.11 inches
Weight
26.6 kg / 58.64 lbs
Shipping information
Package Height
676 mm / 26.61 inches
Package Width
451 mm / 17.76 inches
Package Depth
581 mm / 22.87 inches
Package Weight
32.5 kg / 71.65 lbs
