PSR-EW310 is a 76-key, standard model of Portable Keyboard for those who touch keyboard instrument for the first time, or even for players for performance usage. It is loaded with versatile functions, an expressive touch-sensitive keyboard action and many convenient functions so that even beginners can enjoy playing it right away.
622 high quality Voices with improved sampling
Touch-sensitive keyboard with 48-note polyphony
Brand new DSP effects and 11 Super Articulation Lite Voices
205 auto accompaniment Styles
26 Harmony types
150 Arpeggio types
"Keys to Success" with other lesson functions
Duo mode
Easy Song Book available for download
USB TO HOST allowing two-way MIDI and digital audio transfer
Melody Suppressor for both analog and digital audio input

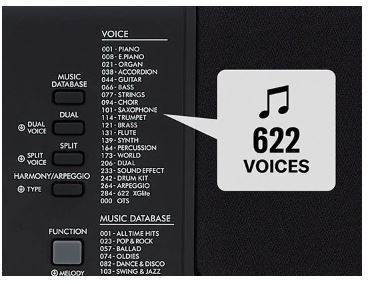

An extensive library of high quality sounds
The PSR-EW310 features a newly developed tone generator LSI that delivers stunning improvements in sound quality as well as high-quality effects. Thanks to this new LSI, you can enjoy a comprehensive library of 622 instrument Voices perfect for playing in any genre you choose , as well as unique Super Articulation Lite Voices that reproduce the trills and string noise of stringed instruments such as the cello and mandolin—previously difficult to emulate—with amazing realism, for superbly authentic performances.
Experience the joy of playing
With a range of effects similar to those in top-end models and touch sensitivity that allows you to add delicate nuances to your performance, the PSR-EW310 has impressive expressive capabilities. It also comes with an auto accompaniment function that provides backing in a variety of musical genres from around the world, such as jazz, R&B, and Latin.
Lesson functions to help beginners progress
Use the lesson functions to enjoy playing the built-in Songs with ease. These convenient lesson functions will help you to practice the built-in Songs and improve your playing skills. The lesson functions are arranged for optimum, enjoyable learning, so just select the one that's suitable for you, and take your keyboard skills to the next level.
With a wider keyboard, a wider range of repertoire is possible
With the wide, 76-note, touch-sensitive keyboard at your fingertips, more complex piano pieces can be mastered with maximum dynamic expression.
The PSR-EW310 features the latest tone generator LSI from Yamaha, delivering the finest sound quality ever offered in an instrument of this type. Enjoy 622 stunning Voices including guitar, bass, strings, sax, trumpet, drums and percussion, as well as piano , organ, and other classic keyboard instruments, which together comprise a comprehensive library of musical sounds. You can even layer two different Voices across the entire keyboard as a “Dual Voice” to enrich your performances still more!
Enjoy playing a touch-sensitive keyboard that accurately reflects every nuance of your playing, making your performances more musically expressive. Play the keys heavily for louder tones, or softly to achieve quieter sounds, to achieve true dynamic control of your music.
The PSR-EW310 features an auto accompaniment function that automatically plays appropriate backing (rhythm + bass + chord accompaniment), which you can control simply by playing root notes or chords with your left hand.
PSR-EW310
Color/Finish
Cabinet Color Black
Size/Weight
Dimensions Width 1151 mm (45-5/16”)
Height 118 mm (4-5/8”)
Depth 369 mm (14-1/2")
Weight Weight 5.4 kg (11 lb, 14 oz) (not including batteries)
Control Interface
Keyboard Number of Keys 76
Type Organ Style
Touch Response Yes (Soft, Medium, Hard, Fixed)
Display Type LCD
Backlight Yes
Language chinese
Panel Language chinese
Voices
Tone Generation Tone Generating Technology AWM Stereo Sampling
Polyphony Number of Polyphony (Max.) 48
Preset Number of Voices 622 (241 Panel Voices + 22 Drum/SFX kits + 20 Arpeggio + 339 XGlite Voices)
Featured Voices 3 Live! Voices, 4 Sweet! Voices, 6 Cool! Voices, 11 Super Articulation Lite Voices
Compatibility GM Yes
XGlite Yes
Effects
Types DSP 38 types
Reverb 12 types
Chorus 5 types
Master EQ 6 types
Harmony 26 types
Functions Dual Yes
Split Yes
Arpeggio 150 types
Melody Suppressor Yes
Accompaniment Styles
Preset Number of Preset Styles 205
Fingering Smart Chord, Multi finger
Style Control ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL
File Format Style File Format (SFF)
Other Features Music Database 170
One Touch Setting (OTS) Yes
Expandability Expansion Style 10
Songs
Preset Number of Preset Songs 154 (including Touch Tutor: 10, Chord Study: 12, Chord Progression: 30)
Recording Number of Songs 5
Number of Tracks 2
Data Capacity Approx. 10,000 notes
Compatible Data Format Playback SMF Formats 0 & 1
Recording Original File Format
Functions
Lesson/Guide Lesson/Guide KEYS TO SUCCESS, Lesson 1–3 (Listening, Timing, Waiting), Phrase Repeat, A-B Repeat, Chord Dictionary, Touch Tutor, Chord Study, Chord Progression
USB audio interface 44.1 kHz, 16 bit, stereo
Registration Number of Buttons 9
Overall Controls Metronome Yes
Tempo Range 11-280
Transpose -12 to 0, 0 to +12
Tuning 427.0–440.0–453.0 Hz (approx. 0.2 Hz increments)
Duo Yes
Miscellaneous PIANO Button Yes (Portable Grand Button)
Storage and Connectivity
Storage Internal Memory Approx. 1.4 MB
Connectivity DC IN 12 V
Headphones Standard stereo phone jack (PHONES/OUTPUT)
Sustain Pedal Yes
AUX IN Yes (Stereo mini jack)
USB TO HOST Yes
Amplifiers and Speakers
Amplifiers 2.5 W + 2.5 W
Speakers 12 cm × 2
Power Supply
Power Supply AC Adaptor (PA-130, PA-3C, or an equivalent recommended by Yamaha) or batteries (Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries)
Power Consumption 5 W (When using PA-130 AC adaptor)
Auto Power Off Function Yes (Time can be set)
