The Audio Technica ATW-2110 BodyPack Wireless System is a frequency-agile UHF wireless system designed to suit a variety of applications, including live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price.

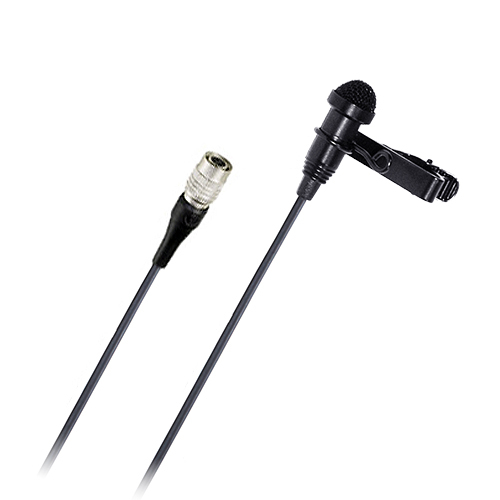

The Audio Technica ATW-2110 BodyPack Wireless System contains an ATW-R2100 receiver and ATW-T210 body-pack transmitter. Select a microphone or cable with a cW-style locking 4-pin connector to complete the system.
ATW-R2100 Receiver
The ATW-R2100 Receiver features True Diversity operation which selects between two receiver sections, reducing dropouts and radio frequency interference. The receiver features 10 user selectable UHF frequencies, allowing 10 systems to be used simultaneously. Single touch frequency scanning automatically selects clear frequencies in the area. The rear panel features a balanced XLR output and unbalanced 1/4" phone connection. A back-lit LCD provides channel, AF, RF and diversity status information.
ATW-T210 Body-Pack Transmitter
The ATW-T210 BodyPack Transmitter is a lightweight body pack microphone transmitter that operates on the same frequencies as the receiver. The transmitter features a 4-pin Hirose connection input that is compatible with Audio-Technica "CW" lavaliers and head worn microphones, and select instrument cables. The transmitter operates up to 9 hours on two 1.5V AA batteries. Offering 10 selectable channels and True Diversity UHF wireless technology, the Audio Technica ATW-2110 Bodypack Wireless System features automatic frequency scanning. At the touch of a button, this function determine automaticallys and sets the best available frequency. Any of the 2000 Series’ 10 channels may be used together without any frequency coordination problems or group selection issues. The Audio Technica ATW-2110 Bodypack Wireless System also incorporates Audio-Technica’s Tone Lock™ squelch plus an easy-to-read LCD information display.
Audio Technica ATW-2110 BodyPack Wireless System Features
Serious advances in affordable professional wireless
Clear sound quality and rock-solid, dependable performance
Automatic frequency scanning
10 compatible user-switchable channels
Antenna power available for powered antennas & other in-line RF devices
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock™ tone squelch system fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display
Balanced XLR and unbalanced 1/4” output jacks enable use with a wide variety of audio gear
Switchable transmitter power output with high and low settings offered
Includes rack-mount kit and detachable UHF antennas
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
Audio Technica ATW-2110 BodyPack Wireless System Specifications
Overall System Specs:
Operating Frequencies: UHF (Band D; 656.125 to 678.500 MHz Discontinued in North America), (Band I : 487.125 to 506.500 MHz)
Number of Channels: 10 Total
Modulation Mode: FM
Maximum Deviation: ±40 kHz
Dynamic Range: > 110 dB (A-Weighted), Typical
Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz Deviation)
Operating Range: 100 m (300'), Typical, (Open Range Environment with No Interfering Signals)
Operating Temperature Range: 5º C to 45º C (41º F to 113º F) (Battery and LCD Performance May be Reduced at Very Low Temperatures)
Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
Receiver Specs:
Maximum Output Level:
XLR, Balanced: +9 dBV
¼" (6.3 mm), Unbalanced: +4 dBV
Balanced Audio Output Attenuator:
Two Position Switch: 0 / -12 dB
Receiving System: True diversity
Image Rejection: 60 dB Nominal, 55 dB Minimum
RF Sensitivity: 20 dBuV at 60 dB S/N Ratio (50 Ohms Termination)
Antenna Input: BNC-Type, 50 Ohms, Bias Voltage 12V DC, 60 mA, Each
Power Requirements: 12-18V DC, 500 mA
Dimensions: 210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H (Not Including BNC Connectors or Feet)
Net Weight: 1.0 kg (35.3 oz), Without Accessories
Body-Pack Transmitter Specs:
RF Power Output: High: 30 mW, Low: 10 mW (Switchable), at 50 Ohms
Spurious Emissions: Following Federal and National Regulations
Input Connections: Four-Pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
Batteries: Two 1.5V AA Alkaline (Not Included), or Two 1.2V AA NiMH (Not Included)
Battery Life: High: 7 Hours (Alkaline), Low: 9 Hours (Alkaline) depending on Battery Type and Use Pattern.
Dimensions: 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
Net Weight: 81 g (2.9 oz), Without Batteries
Audio Technica ATW-2110 BodyPack Wireless System Includes
Audio Technica ATW-R2100 Receiver
2 x Flexible UHF Antennas
2 x Rack-Mount Adapters
1xAC Adapter
Audio Technica ATW-T210 Body-Pack Transmitter
