Active 300W 2-Way Monitor Speaker System with 12" Woofer, 1" Compression Driver and Feedback Filter
igh-power 300-Watt 2-way monitor speaker system for live and playback applications
Exceptional sound quality, wide frequency bandwidth and dynamic range

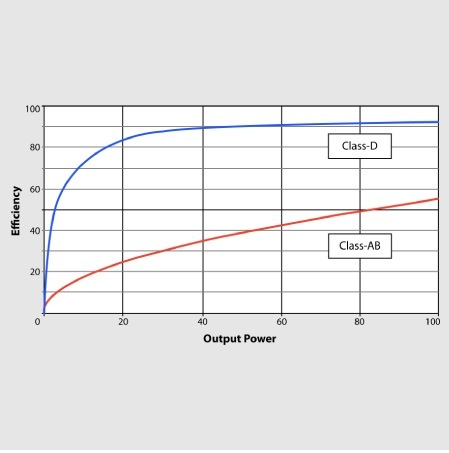

Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
Adjustable feedback filter and integrated limiter for ultimate system control and speaker protection
Integrated sound processor for ultimate system control and speaker protection
Ultra-low noise Mic/Line input with Volume control and Clip LED
Dedicated 3-band EQ for perfect sound shaping
Extremely powerful 12'' long-excursion driver provides incredibly deep bass and acoustic power
High-resolution 1'' HF driver for exceptional high-frequency reproduction
Proprietary horn design for ultra-wide sound dispersion
Internal switch-mode power supply for noise-free audio, superior transient response and very low power consumption
Integrated 35 mm pole socket for stand mounting and use as PA system
Designed and engineered in Germany
EUROLIVE F1320D
Building on the legacy of our wildly successful EUROLIVE F1220A, we are proud to present the even more powerful EUROLIVE F1320D. This 300-Watt active monitor system features a 3-band EQ, so you can tweak the Highs, Mids and Lows for a clear, true sense of your performance; a long-excursion 12" woofer for punchy and deep bass, and a high-performance 1" high-frequency compression driver for the ultimate in sound quality. And thanks to the Class-D technology we employed in the onboard 300-Watt amplifier, the F1320D weighs less than most passive monitor wedges (40 lbs/18 kg), making them easy to transport and set up.
Beauty is Much More Than Skin Deep
Inside these active monitors is the equivalent of a 2-way electronic crossover, a graphic equalizer, a parametric equalizer, a mic preamp and a Class-D power amp! A long-excursion 12'' driver delivers deep, punchy low end, while the 1'' compression driver, mounted in a custom-designed horn, provides ultra-wide dispersion of clean, crisp highs. These systems work together seamlessly, cranking out 300 Watts of super-clean power, and here’s the best part – you don’t have to be a sound engineer to run it!
Bi-Amplification - The Path to Absolute Signal Integrity
With its 300 ultra-clean Watts of digital output delivered through separately-powered drivers, courtesy of true bi-amping (2 amplifiers per speaker system), the F1320D delivers high-resolution sound that really brings out the best in your music. While some of our competitors apply simple passive crossovers, which inaccurately separates the frequency spectrum and degrade driver performance, Behringer has gone the extra mile – driving each woofer and tweeter with a separate amplifier for absolute signal integrity.
Integrated Feedback Filter and Sound Processor
The built-in adjustable feedback filter helps eliminate annoying squeals and howls so you can crank up the volume, allowing you to hear yourself above all the raging chaos, a.k.a., your band! After all, the main reason to have a monitor is so you can hear yourself, right? The EUROLIVE F1320D helps you perform up to your true potential. Additionally, a built-in sound processor works behind the scenes, ensuring the ultimate in sound quality, overall system control and speaker protection.
Speaking of Control…
The F1320D doesn’t just sound great, it gives you instant control of your monitor, even during your performance – something passive monitors simply cannot deliver! Need more volume? Turn the LEVEL dial until the desired volume is reached, getting too much bass or treble? Just reach down and tweak the 3-band EQ (High, Mid, Low) to tailor a rich, exciting sound. We’ve even provided the first line of defense against feedback, a dedicated Frequency dial you can adjust to eliminate troublesome mic squeals. Total control is always right at your fingertips with the EUROLIVE F1320D.
Instant PA System
You can set up an instant sound system with just one F1320D and a microphone or MP3 player. Thanks to the built-in preamp, you can connect a dynamic mic directly to the F1320D and raise and lower the volume with the Level control. Fast and easy to set up, you can be ready for “showtime” at a moment’s notice. There’s even a built-in 35-mm socket, so you can mount the F1320D on a standard speaker pole for use as a PA system. And if you need more coverage, chain together as many F1320Ds as you’d like via the convenient XLR or ¼ " TRS LINK OUTPUT connector.
Specification
Show less
Output Power
Low-Frequency Range
RMS @ 1% THD: 160 W @ 8 Ω
Peak Power: 225 W @ 8 Ω
High-Frequency Range
RMS @ 1% THD: 40 W @ 8 Ω
Peak Power: 72 W @ 8 Ω
Mic/Line Inputs
XLR Connector
Sensitivity: -50 dBu to 0 dBu
Impedance: 20 kΩ balanced, 30 kΩ unbalanced
¼" TRS Connector
Sensitivity: -50 dBu to 0 dBu
Impedance: 20 kΩ balanced, 30 kΩ unbalanced
Link Output
XLR connector
Equalizer
High
12 kHz / ±15 dB
Mid
2.5 kHz / ±15 dB
Low
80 Hz / ±15 dB
Feedback Filter
Filter frequency
300 Hz to 6 kHz
Level reduction
max. 15 dB
Q factor
20
Loudspeaker System Data
Frequency range
60 Hz to 16 kHz (-10 dB)
Maximum sound pressure level
115 dB / 118 dB (half space) @ 1 m
Limiter
optical
Power Supply/Voltage (Fuses)
USA/Canada
120 V~, 60 Hz (T 4.0 A H 250 V)
UK/Australia
240 V~, 50 Hz (T 2.0 A H 250 V)
Europe
230 V~, 50 Hz (T 2.0 A H 250 V)
Korea
220 V~, 60 Hz (T 2.0 A H 250 V)
China
220 V~, 50 Hz (T 2.0 A H 250 V)
Japan
100 V~, 50/60 Hz (T 4.0 A H 250 V)
Power consumption
max. 300 Watts
Power supply
switch mode
Mains connection
standard IEC receptacle
Dimensions/Weight
Dimensions (H x W x D)
appr. 360 x 580 x 406 mm (14.2 x 22.8 x 16.0")
Weight
appr. 15 kg (33.0 lbs)
