SPECS
All specifications subject to change without notice.
Keyboard:
88-key, fully-weighted, 4-zone graded hammer-action with velocity sensitive adjustable keys (H1 Ivory GT)

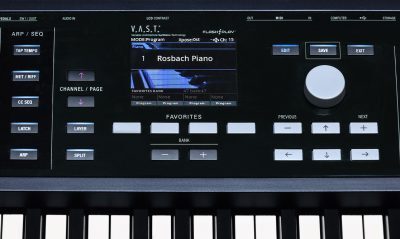

Display: 320 x 240 pixel high resolution color LCD with adjustable brightness
Polyphony: 256 voice polyphony, dynamically allocated
Multitibral: 16 parts (one per MIDI channel)
Architecture: Dynamic VAST: powerful synthesis engine.
Flash-Play sample playback.
KB3 ToneReel Engine
6-Operator FM Engine
VA1 Virtual Analog Oscillators + DSP
Sample Flash Memory: 2 GB factory samples
Factory Programs: 1000
User Programs: 4000+
Factory Multis: 200+ (up to 5 independent controller zones)
User Multis: 4000+
Favorites 396 (99 banks of 4 entries per bank)
General MIDI:No
Kurzweil String Resonance: Yes
Global EQ/Compressor: Yes
Effects: Over 1000 complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
32 total FX units
Controllers: 1 pitch wheel
1 assignable modulation wheel
5 assignable knobs (15 virtual)
5 assignable buttons (15 virtual)
2 transpose switches
Tap tempo button
Dedicated Arp, RIFF and metronome controls
*1 switch pedal inputs, supporting single/dual switch pedal or single half damper pedal
*1 continuous control pedal inputs
(*pedals sold separately)
MIDI CC Step Sequencers: 5 simultaneous
Riffs: 5-per Multi
Arpeggiators: 1-per Program, 5-per Multi
Analog Outputs: Two (1 pair) 1/4″ balanced TRS analog (32-bit DACs)
Automatic mono switching
+21dBu maximum output
50Ω balanced source impedance
Audio Inputs: One stereo 1/8” jack accepting line level signals.
Headphones: 1 back panel 1/4″ headphone output
130mW into 32 ohm headphones
MIDI: In, Out
USB: Complete MIDI functionality over USB
Play and control the SP8 with a USB MIDI controller (USB host functionality)
User Object file transfer to/from USB Flash Drive
Operating System updates from USB Flash Drive
Software Editors: External editors for Mac OS X, Windows PC and iPad
FREE OS Updates: OS updates via USB drive
Included Accessories: Power cable
Height: 4.92” (12.5 cm)
Depth: 13.6” (34.5 cm)
Length: 51.9” (132 cm)
Weight: 31.97 lb (14.5 kg)
Power: External power supply
