128 dB Max SPL
1400 Watt 2-way power
8-input Digital Mixer with multiple FX, Amp Simulator and Remote Control
DSP processing with FiRPHASE
Features
128 dB Max SPL
1400 Watt 2-way power
8-input Digital Mixer with multiple FX, Amp Simulator and Remote Control
DSP processing with FiRPHASE
12" woofer, high-power 2.5" voice coil
Ultra-compact 8 x 2" ultra-compact 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
24.4/53.8 kg/lbs
Taking the EVOX J series another step, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; It includes high-quality instrument FX and AMP simulations. An iOS/Android compatible EVOX app allows you to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input, the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote-controllable 8-channel digital mixer.

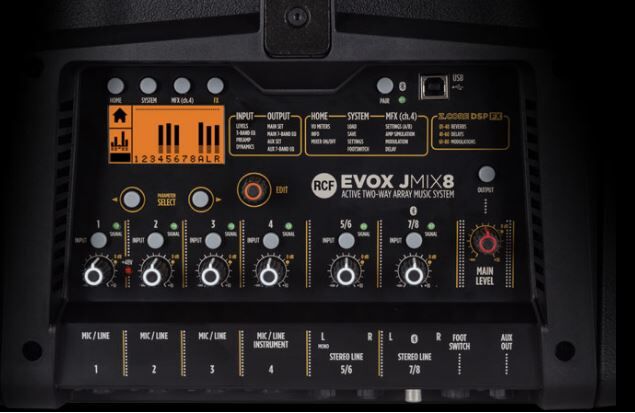

Onboard Digital Mixer
All functions available on the EVOX JMIX8 system's integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.
Superior Transducers
HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with stunning sound performance.
LOW FREQUENCIES - The 12” RCF high-excursion woofer extends to the lowest frequencies, offering fast and precise punch. The bass-reflex port design avoids air turbulence, reducing distortion. The EVOX design features a constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
Ready to play in a few simple steps
PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, which is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.
MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn, and you're done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Transporting and assembling your audio system has never been so quick.
J system configurations
From solo musicians to large DJ parties, the flexibility of the EVOX J system is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, achieving the best listening experience in any venue is an easy task. Check out some standard configurations to understand the system set-up.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, designed to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
