意大利製的名廠品牌,是各專業用家的喜歡的品牌
香港行貨,本店為RCF 認可經銷店
Features
2500 Watt Peak
136 dB max SPL
30 Hz - 120 Hz frequency response
18" Woofer, 4.0" voice coil vented woofer
DSP controlled Input section with selectable presets
Delay control
Baltic birch tour grade cabinet
Compatible with NXL23-A (stacking)
Compatible with NXL24-A (stacking)
Multiple configurations with HDL 10-A and HDL 20-A

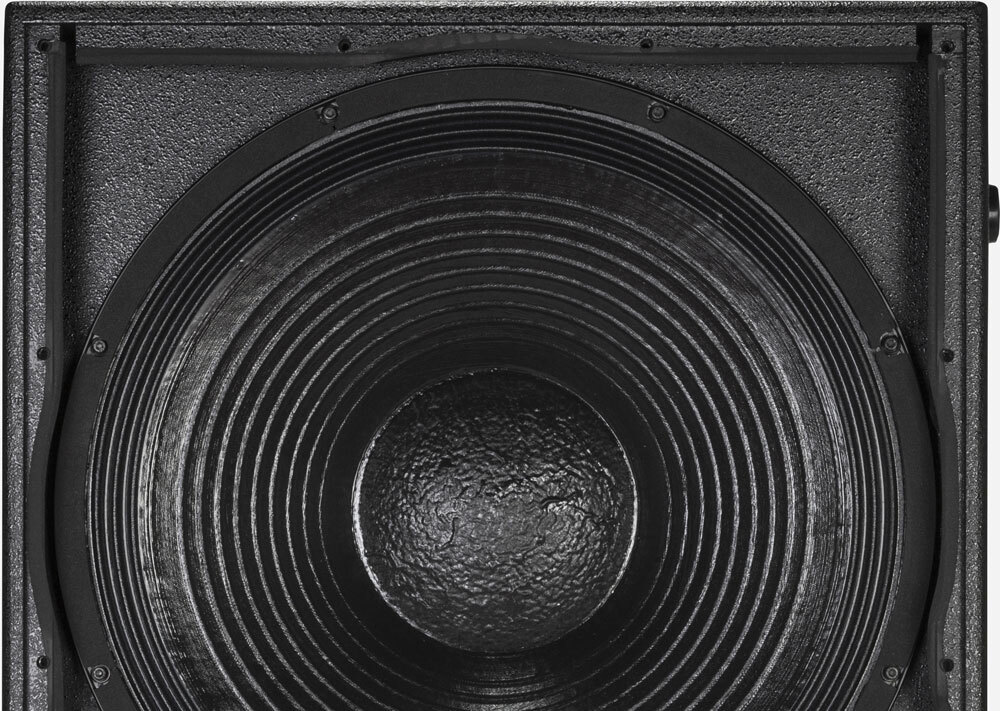

The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category. Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.
Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.
The transducers innovators

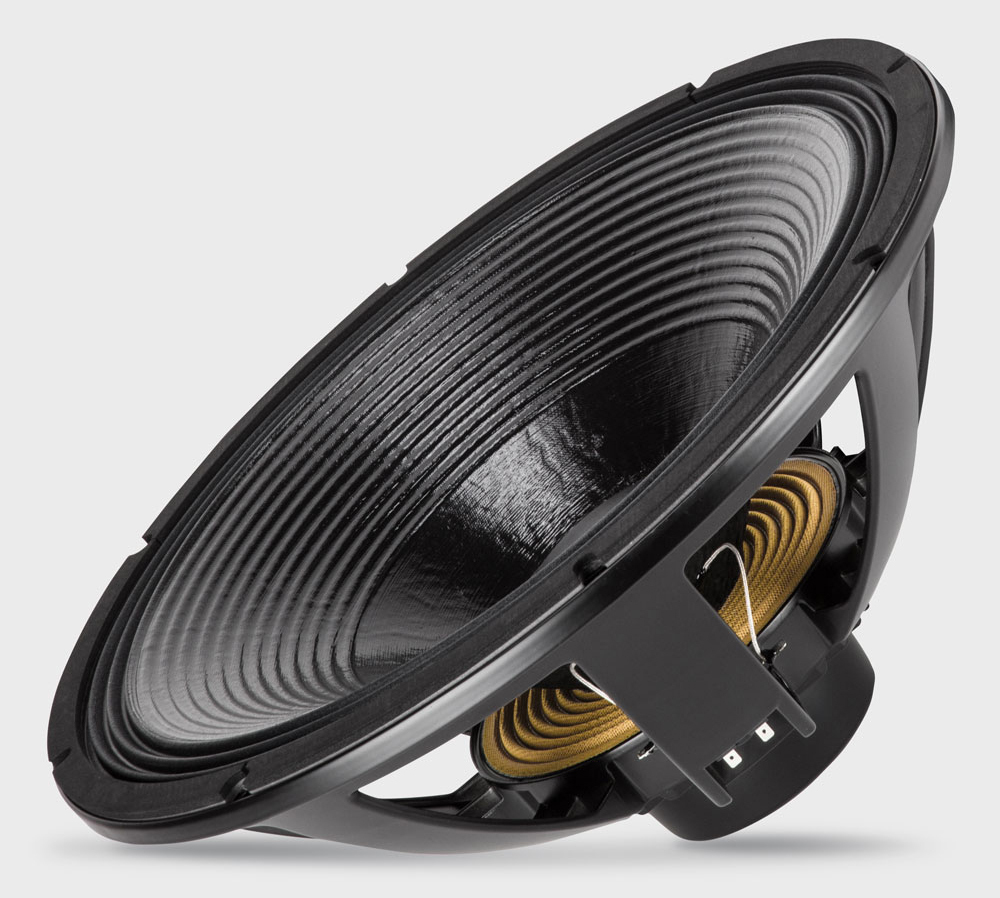

RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 70 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.
egendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.
Cabinet & mechanics

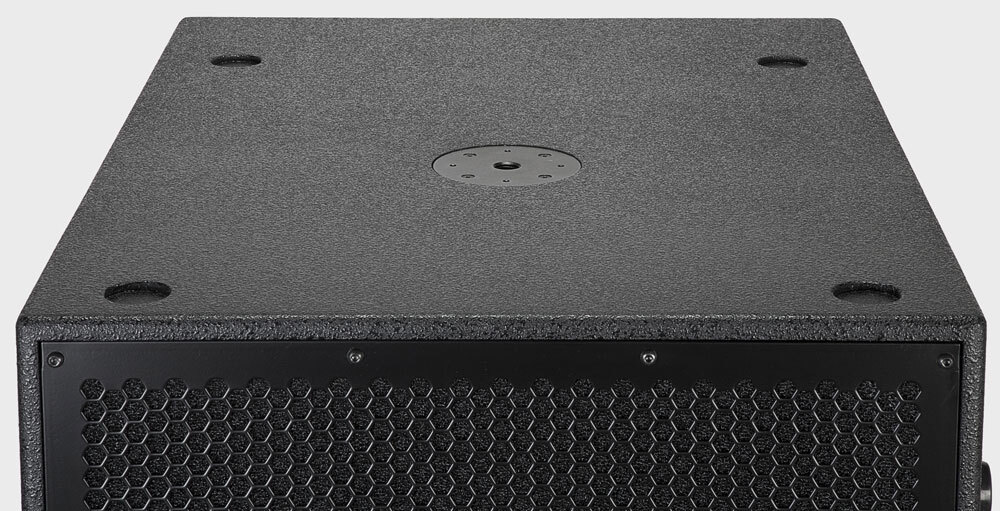

The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.
Acoustical specifications
Frequency Response
30 Hz - 120 Hz
Max SPL @ 1m
136 dB
Transducers
Woofer
1 x 18'', 4.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies
120 Hz
Low-Pass Frequencies
90 Hz
Protections
Thermal, RMS
Limiter
Fast Limiter
Controls
Xover, Phase switch, Deep/Punch, Outuput Delay Settings, Cardioid
Power section
Total Power
2500 W Peak, 1250 W RMS
Low frequencies
2500 W Peak, 1250 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Provision for four wheel mounting on the rear panel.
Handles
One handle each side
Pole mount/Cap
M20 thread
Grille
Steel with clothing
Color
Black
Size / Weight
Height
700 mm / 27.56 inches
Width
558 mm / 21.97 inches
Depth
700 mm / 27.56 inches
Weight
56 kg / 123.46 lbs
Shipping information
Package Height
761 mm / 29.96 inches
Package Width
751 mm / 29.57 inches
Package Depth
612 mm / 24.09 inches
Package Weight
60 kg / 132.28 lbs
