SSL Heritage
There are very few companies in the history of music and audio production that have been more influential, helped create more hit records and developed more technology that changed the production game than Solid State Logic. With the SSL 1, you’re not just getting an audio interface; you’re investing in a piece of SSL’s knowledge, heritage, and complete understanding of what matters in music production.
Class-leading performance, in the studio and on the road
Built to Move with You
Rugged and compact, SSL 1 is class-compliant and works seamlessly with Class 2.0 Mobile Devices (including iOS devices), as well as laptops and desktop computers. Power it via USB from your computer or externally using a 5V power bank or phone charger - perfect for recording wherever inspiration strikes.
SSL Sound
From flagship SSL consoles to compact interfaces, superior sound quality sits at the core of everything made by SSL. SSL 1 features next-generation 32-bit converters and exceptional low-noise design, delivering stunning clarity, depth and dynamic range. Record and hear every detail, from the quietest nuance to the biggest performance, with the confidence of best-in-class performance and SSL’s legendary sonic character.
Plug-in and Play
Whether it’s DI guitar, bass, synths or drum machines, SSL 1’s instrument/line input captures your sound with depth and punch. Built on true SSL analogue design, SSL 1 keeps every take rich, dynamic and full of tone, from the very first note.
Legacy 4K Analogue Enhancement Circuit
SSL 4000‑series consoles (often called “4K”) are known for adding a distinctive mojo to sounds and instruments that pass through them. This character comes from multiple stages of harmonic distortion created by components such as compressor VCAs, VCA faders, and transistor mix amps. Using modern components, SSL has distilled the two key elements of the 4K sound into a single circuit.
Legacy 4K Analogue Enhancement adds a carefully controlled amount of sweet‑sounding harmonic distortion and a forward yet musical high‑frequency boost, bringing the classic 4K presence engineers and artists have loved for decades.
Next-Gen 32-bit 192 kHz
High-quality audio conversion is essential for artists and engineers alike and the SSL 1 is built around Next-Gen 32-bit 192 kHz Converters. The result? Clearer, more detailed recordings, preserving every nuance of your performance. Capture stunning acoustic performances, record drum machines and synths with more punch and texture. Make your live streams sound like professional broadcasts and mix quicker and easier as sounds are more defined.
Ins and Outs

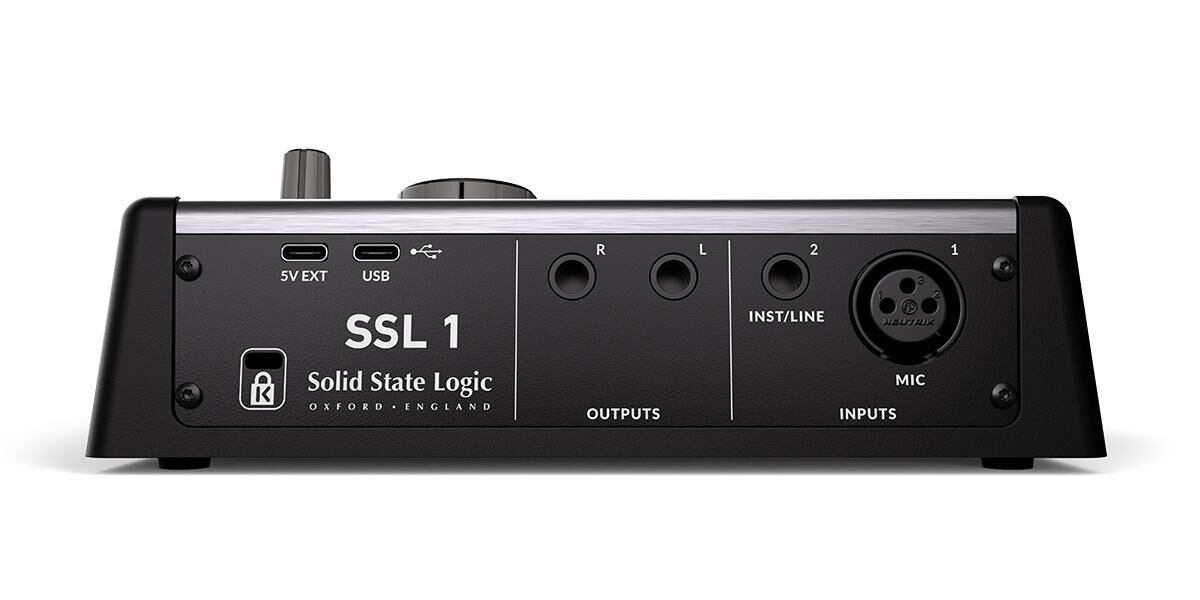

On the rear panel, the SSL 1 features a Neutrik XLR mic input, a switchable INST/LINE input, two balanced outputs, and x2 USB‑C connectors for USB audio and 5V external power supplies or power banks.

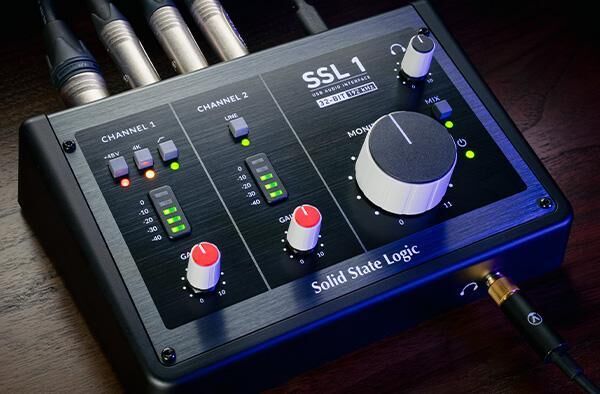

On the front panel, a conveniently placed headphone jack offers easy access for monitoring.
Professional Studio Quality, Front To Back
From professional-grade mic preamps and Neutrik® XLR and jack connectors to next‑gen converters, every SSL product delivers true studio-quality performance, front to back.
Key Features
2-in/2-out USB-C audio interface.

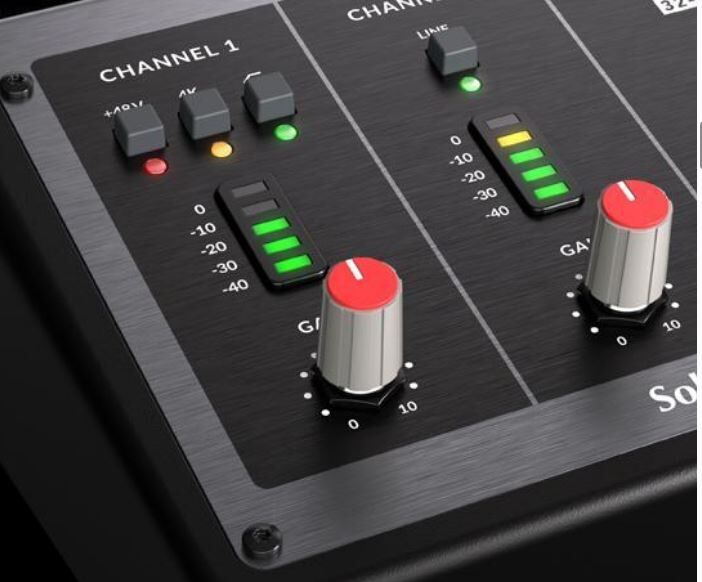

1 x SSL microphone preamp:
+48V Phantom Power
Legacy 4K Analogue Enhancement
High Pass Filter
1 x Instrument DI Input or Line Input
1 x Professional high-current headphone output
Portable-recording friendly – USB bus-powered or externally via the 5V USB
Perfect for use with USB Audio Class 2.0 Mobile Devices
Next-Gen 32-bit 192 kHz converters
Exceptional audio performance
Balanced monitor outputs
Powerful, high-current headphones output
Mix button - Provides a mix of low-latency input monitoring and computer playback
DC-coupled outputs are suitable for sending CV to synths
3 x Stereo Loopback feature – ideal for content creators
SSL Production Pack software bundle
Robust design, using quality components
USB 2.0, bus-powered or external-powered portable interface for Mac/PC
Tech Specs
System Requirements and Specs
Mac OS 12 and above | Class-Compliant - Plug-and-play
USB Audio Class 2.0 Mobile Devices (including iOS devices) - Plug-and-play
Windows 11, Windows 11 ARM. Install included ASIO/WDM driver
Connectivity
USB 2.0 Type C Connector (Box includes Type C to C and Type C to A)
Mic Preamps
-130. 5 dBu EIN A-weighted
Gain range 63 dB
Dynamic range 113 dB dB A-weighted
Instrument Inputs
Dynamic Range: 114 dB A-weighted
Max Instrument Input Level: +14 dBu
Line Inputs
Dynamic Range: 114 dB A-weighted
Max Line Input Level: +24.5 dBu
Balanced Outputs
Dynamic Range: 116 dB
Max Output Level: +14 dBu*
Headphone Outputs
Dynamic Range: 116 dB A-weighted
Max Output: +11 dBu
For the complete list of technical specifications please refer to the user guide
