本店為UNIVERSAL AUDIO 香港經銷店,VOLT INTERFACE為香港行貨,原廠行貨保養
Tone Shaping Preamps. Get the rich character of a record, not a demo.
Max Processing. Record with classic compressor presets tuned for vocals, guitar, and bass.
Full 32-Bit Audio. Hear your performance in incredible detail with legendary UA quality.
Mics, Instruments & More. Capture your vocals and instruments simultaneously, connect instruments over MIDI, and add inputs over ADAT.
Smart Display. Select channels and set levels fast with bright visual feedback.
Auto-Gain & Clip Protection. Never worry about signal peaks ruining your take again.
Mobile Ready. Record anywhere with USB bus power — no external power supply needed.*
Premium UAD Software. Get the same EQs, compressors, synths, and guitar amps used by the pros, plus the award-winning LUNA DAW.
Details
10-in / 4-out desktop USB audio interface with professional 32-bit / 192 kHz audio conversion
Two Tone Shaping Preamps with 60 dB gain and three harmonic character modes — Warmth, Focus, and Shine — for the rich sounds of classic analog mic preamps at the source
Max Processing — onboard realtime compression with six musical presets for vocals, guitars, and bass, modeled on classics like the LA-2A and 1176
Over 18 character combinations by pairing Tone and Max, all completely noise-free
Two mic / line inputs with two front-panel Hi-Z instrument inputs
Built-in talkback microphone for effortless studio communication
ADAT or S/PDIF optical input for up to eight channels of digital expansion, plus MIDI In and Out
Onboard USB hub for connecting peripherals and powering external MIDI controllers

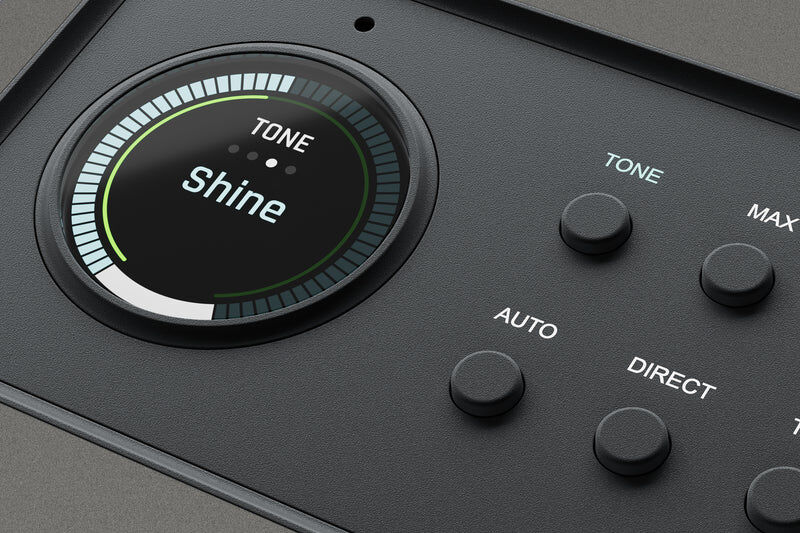

Full-color Smart Display for bright, at-a-glance visual feedback, including gain-reduction metering
Auto-Gain and Clip Protection for perfect recording levels, every time
Two studio-quality headphone outputs (with one shared cue mix) for monitoring and collaboration
Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
Built-in loopback for podcasting, streaming, and content creation
Independent 48V phantom power per channel for condenser microphones
USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone*
Stylish, rugged construction built to withstand years of use
Included Volt Software (Subject to Change)
UAD Volt Studio Bundle
LUNA Free
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
Vibe Analog Machines Essentials
PolyMAX Synth
Anthem Analog Synth
UAD Lion '68 Super Lead Amp
UAD Showtime ’64 Tube Amp
Additional Software
Melodyne Essential by Celemony
Ampeg® SVT-VR Classic Bass Bundle by Plugin Alliance (Includes Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition (3 months free)
Access to exclusive Puremix audio education content
See the Big Picture with Smart Display
Volt Max’s beautiful full-color Smart Display shows your inputs, levels, and settings in detail. So you spend less time setting up and more time creating.
Specifications
I/O
Simultaneous I/O
10-in / 4-out
Microphone Preamps
Two, 60 dB available gain with Tone Shaping, Harmonic Saturation, and Max Compression
Monitor Outputs
One stereo
Headphone Outputs
Two stereo (one shared cue mix)
USB
One USB 2.0 Host port One USB Hub port for peripherals – supplies 5VDC @ 0.5A maximum One USB External Power input port – requires 5VDC @ 1A minimum USB Type-C connectors
Digital / Optical
ADAT or S/PDIF optical input ADAT IN: 8 channels at 44.1 and 48 kHz - S/MUX capable 4 channels at 96 kHz - S/MUX capable 2 channels at 192 kHz S/PDIF IN: 2 channels at all supported sample rates
MIDI
In, Out, 1/8" TRS Mini-Jack MIDI Type A
Talkback
Built-in microphone
A/D – D/A Conversion
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Bit Depth
32
Power
USB Bus-Powered
Yes
Power Consumption (@ 5VDC)
4.1W typical, 5.7W maximum
On / Off Switch
Yes - Rear Panel
Analog I/O
