U35 Complete Dynamic System
5.8 GHz True Diversity wireless system for dynamic microphones
Automatic scanning for the best signal out of the available 6 channels
24-bit / 48 kHz digital audio with low distortion and wide frequency response
Stable 5.8 GHz wireless connection with a range of up to 100 feet (30.5 m)
Mic Mode for dynamic microphones and Line Mode for wireless audio from a mixer to a powered speaker
Discover the freedom of wireless—live, at home or in the studio—and roam free with your favorite microphone! U35 broadcasts on the 5.8 GHz wireless channel, avoiding interference from common 2.4 GHz devices.
THE SYSTEM

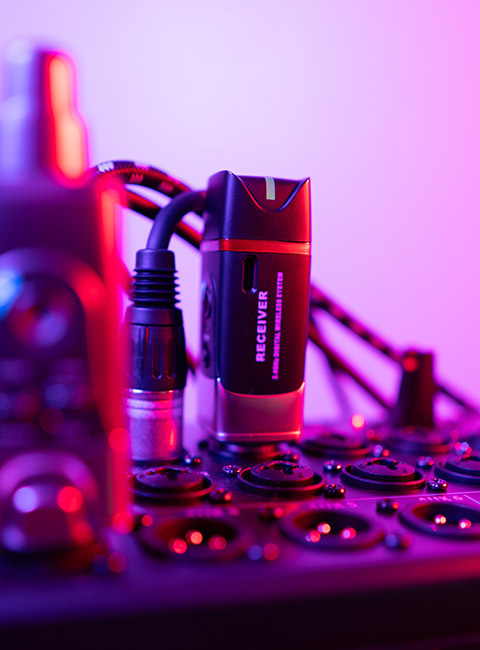

The U35 system is comprised of a transmitter unit, which connects to your microphone; and a receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake.
YOUR TRUE VOICE
The U35 system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 107 decibels. Sing or speak without compromising the quality of your voice or your microphone!
HOLD ON TO POWER
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger—and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.
APPLICATIONS
The basic application is to run wirelessly from a dynamic microphone to a soundboard—live, at home or in the studio. But there’s a lot more you can do with the U35 System!
FREE VOICE
The U35 system is not only great for singers and rappers. Wireless freedom is liberating for harmonica players, public speakers, DJs, preachers, auctioneers, actors, politicians… anyone who wants to move freely while speaking or performing to an audience!
BYPASS THE MIXER
If you need to address a crowd through powered speaker cabinets, not only do you not need a cable, you don’t need a mixer! Just connect your U35 receiver directly to the XLR input of the cabinet.
CONTROL YOUR RANGE
The U35 receiver can be connected to an XLR cable or snake, meaning that the transmitter’s signal doesn’t have to reach all the way to the soundboard or monitor desk—it can broadcast to the front of the stage, or any central and convenient location.
GET AMPED
Beyond all the vocal applications, the U35 system can also be used with microphones for guitar amplifiers, as well as direct audio signals from balanced XLR outputs, for example from multi-effect processors or keyboards.
PA FRIEND
Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors. For stereo and multiple mono PA and DJ systems, check out the U35D!
FREE INSTRUMENTS
Use the U35 to roam free with any instrument that requires a microphone or clip-on microphone, such as harmonicas, violins, trumpets, saxophones and accordions! Please note that U35 is not compatible with condenser microphones—so if you do use a condenser mic, the choice for you is the U3C Microphone Wireless System.
FREEDOM ON VIDEO
The U35 system can be used to connect microphones to DSLR cameras—provided you have an adapter to run between the XLR receiver and the camera’s (usually 3.5 mm) audio input. Remember to use the U3C when connecting condenser microphones.
Specifications
U35
WIRELESS TYPE
5.8 GHz ISM worldwide open band
BIT DEPTH / SAMPLE RATE
24-bit / 48 kHz
SWITCHABLE CHANNELS
6
SIMULTANEOUS CHANNELS
6
MODE
Input: Mic / Line
FREQUENCY RESPONSE
20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE
110 dB (-3 dB)
MICROPHONE COMPATIBILITY
Dynamic and battery-powered condenser microphones
SIGNAL-TO-NOISE RATIO
110 dB
TOTAL HARMONIC DISTORTION
0.2%
LATENCY
5 ms
OPERATING RANGE
30.48 m / 100 ft (line-of-sight)
Battery
TYPE
Rechargeable Lithium-ion (internal)
BATTERY LIFE
5 hrs
CHARGING TIME
2.5 hrs (full charge)
CHARGING VOLTAGE
5V (USB)
USABLE WHILE CHARGING
Yes
Transmitter
MODEL
U35T
MODE
Input: Mic / Line (-10 dB)
CONNECTOR
Balanced XLR (female)
DIMENSIONS
31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
WEIGHT
93 g / 3.3 oz
MUTE
Yes
Receiver
MODEL
U35R
CONNECTOR
Balanced XLR (male)
DIMENSIONS
81 x 31 x 29 mm / 3.2" x 1.2" x 1.1"
WEIGHT
92 g / 3.2 oz
