5.8 GHz True Diversity system with a reliable 100-foot wireless connection
Automatically scans the available wireless channels and selects the best one
High-quality, ultra-compact wireless system for in-ear monitors
Audiophile 24-bit / 48 kHz sound with less than 5 ms of latency
Up to 6 U45 systems can be used in one area simultaneously
THE SYSTEM

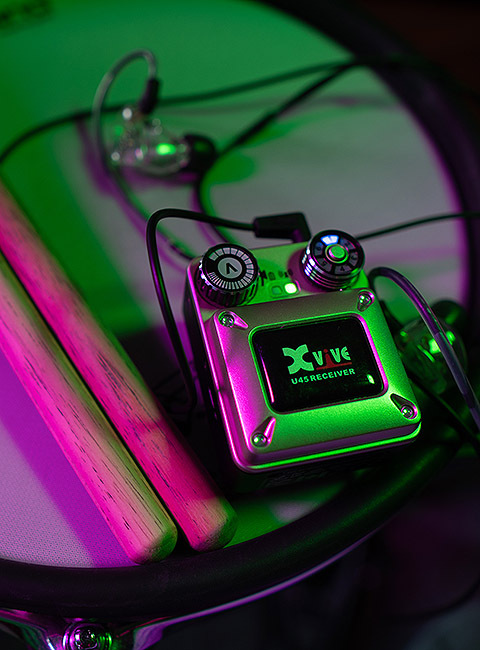

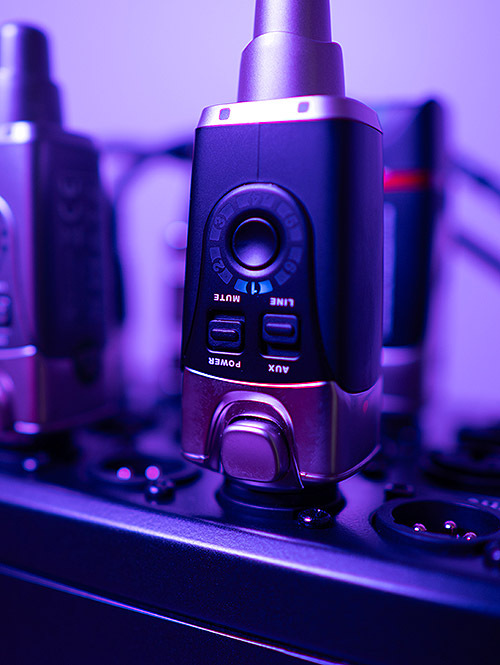

The system is comprised of a transmitter unit, which connects to your audio source (typically a mixer or sound interface); and a belt-pack receiver, to which you connect your earphones or headphones.
LOUD AND CLEAR
The U45 system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz, a signal-to-noise ratio of 107 decibels, and more volume than you’ll ever need. The sound is better than CD quality, and much, much better than MP3 quality!
LONG, EASY CHARGE
The internal battery in both the transmitter and the receiver lasts for 5 hours. The battery is easily charged using the included USB cable and any standard 5V USB charger, and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.
DIRECT COMMUNICATION

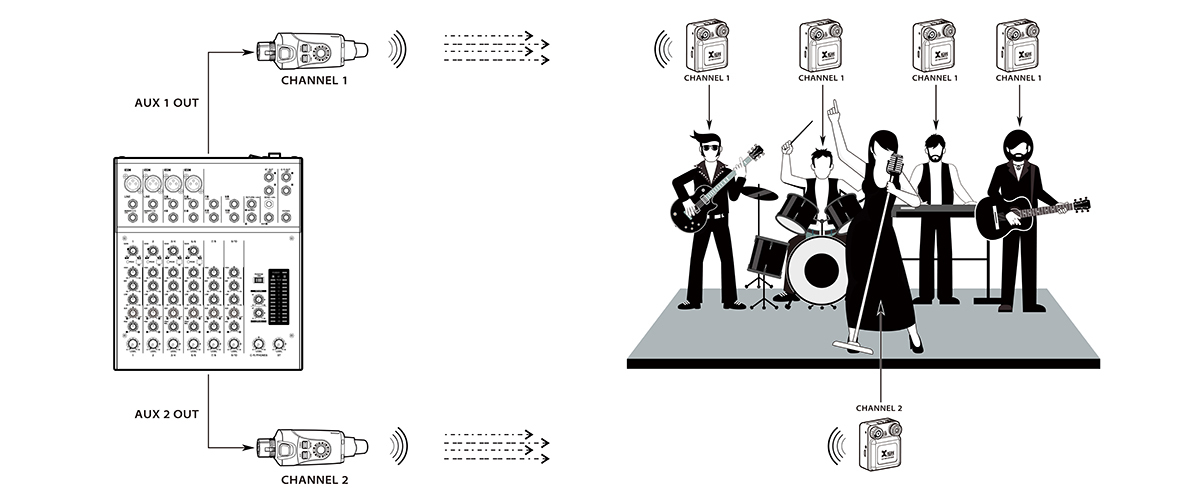

If you have more than one U45 Receiver, you can broadcast a signal to a whole group of people. This can be useful in situations where one person needs to communicate clearly and directly to a group—either in noisy environments or in situations where you don’t want to disturb others. This makes it an excellent option for things like group demos, presentations or tours.
FREE AND EASY RECORDING
For recording musicians, whether in a home or professional studio, going wireless makes the whole process so much freer and easier—especially if you’re playing or singing AND engineering at the same time!
DISCREET PRACTICE
If you want to practice guitar or bass privately—for example late at night—you can run your signal through a multi-effect unit or modeling amp, send either the ¼” or XLR output to your headphones or earphones, and move freely around your home!
Specifications
WIRELESS TYPE
5.8 GHz ISM worldwide open band
BIT DEPTH/SAMPLE RATE
24-bit / 48 kHz
SWITCHABLE CHANNELS
6
SIMULTANEOUS CHANNELS
6
FREQUENCY RESPONSE
20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE
110 dB (-3 dB)
SIGNAL-TO-NOISE RATIO
110 dB
STEREO/MONO
Mono
TOTAL HARMONIC DISTORTION
0.2%
LATENCY
5 ms
OPERATING RANGE
30.5 m / 100 ft (line-of-sight)
TRANSMITTER
INCLUDED
U45T
CONNECTOR
XLR or mono unbalanced 1/4” TS with supplied adapter
